17.

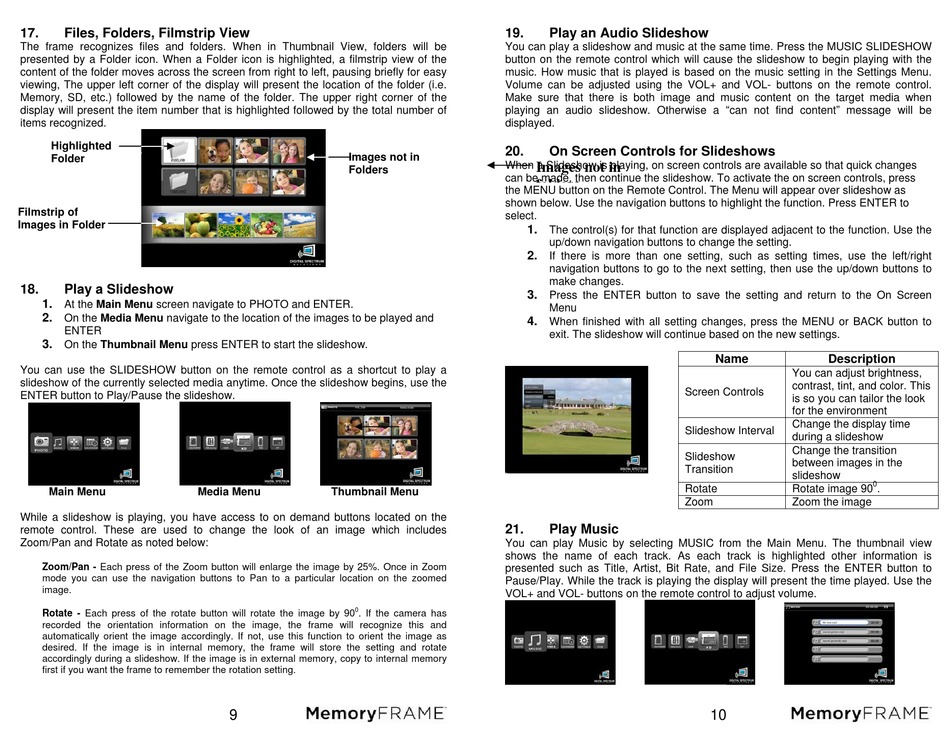

Files, Folders, Filmstrip View
The frame recognizes files and folders. When in Thumbnail View, folders will be
presented by a Folder icon. When a Folder icon is highlighted, a filmstrip view of the
content of the folder moves across the screen from right to left, pausing briefly for easy
viewing, The upper left corner of the display will present the location of the folder (i.e.
Memory, SD, etc.) followed by the name of the folder. The upper right corner of the
display will present the item number that is highlighted followed by the total number of
items recognized.
Highlighted
Folder
Filmstrip of
Images in Folder
18.
Play a Slideshow
1.
At the Main Menu screen navigate to PHOTO and ENTER.
2.
On the Media Menu navigate to the location of the images to be played and
ENTER
3.
On the Thumbnail Menu press ENTER to start the slideshow.
You can use the SLIDESHOW button on the remote control as a shortcut to play a
slideshow of the currently selected media anytime. Once the slideshow begins, use the
ENTER button to Play/Pause the slideshow.
Main Menu
While a slideshow is playing, you have access to on demand buttons located on the
remote control. These are used to change the look of an image which includes
Zoom/Pan and Rotate as noted below:
Zoom/Pan - Each press of the Zoom button will enlarge the image by 25%. Once in Zoom
mode you can use the navigation buttons to Pan to a particular location on the zoomed
image.
Rotate - Each press of the rotate button will rotate the image by 90
recorded the orientation information on the image, the frame will recognize this and
automatically orient the image accordingly. If not, use this function to orient the image as
desired. If the image is in internal memory, the frame will store the setting and rotate
accordingly during a slideshow. If the image is in external memory, copy to internal memory
first if you want the frame to remember the rotation setting.
Images not in
Folders
Media Menu
Thumbnail Menu
0
. If the camera has
9
19.
Play an Audio Slideshow
You can play a slideshow and music at the same time. Press the MUSIC SLIDESHOW
button on the remote control which will cause the slideshow to begin playing with the
music. How music that is played is based on the music setting in the Settings Menu.
Volume can be adjusted using the VOL+ and VOL- buttons on the remote control.
Make sure that there is both image and music content on the target media when
playing an audio slideshow. Otherwise a "can not find content" message will be
displayed.
20.
On Screen Controls for Slideshows
When a Slideshow is playing, on screen controls are available so that quick changes
Images not in
can be made, then continue the slideshow. To activate the on screen controls, press
folders
the MENU button on the Remote Control. The Menu will appear over slideshow as
shown below. Use the navigation buttons to highlight the function. Press ENTER to
select.
1.
The control(s) for that function are displayed adjacent to the function. Use the
up/down navigation buttons to change the setting.
2.
If there is more than one setting, such as setting times, use the left/right
navigation buttons to go to the next setting, then use the up/down buttons to
make changes.
3.
Press the ENTER button to save the setting and return to the On Screen
Menu
4.
When finished with all setting changes, press the MENU or BACK button to
exit. The slideshow will continue based on the new settings.
21.
Play Music
You can play Music by selecting MUSIC from the Main Menu. The thumbnail view
shows the name of each track. As each track is highlighted other information is
presented such as Title, Artist, Bit Rate, and File Size. Press the ENTER button to
Pause/Play. While the track is playing the display will present the time played. Use the
VOL+ and VOL- buttons on the remote control to adjust volume.
Name
Description
You can adjust brightness,
contrast, tint, and color. This
Screen Controls
is so you can tailor the look
for the environment
Change the display time
Slideshow Interval
during a slideshow
Change the transition
Slideshow
between images in the
Transition
slideshow
Rotate
Rotate image 90
Zoom
Zoom the image
10
0
.
