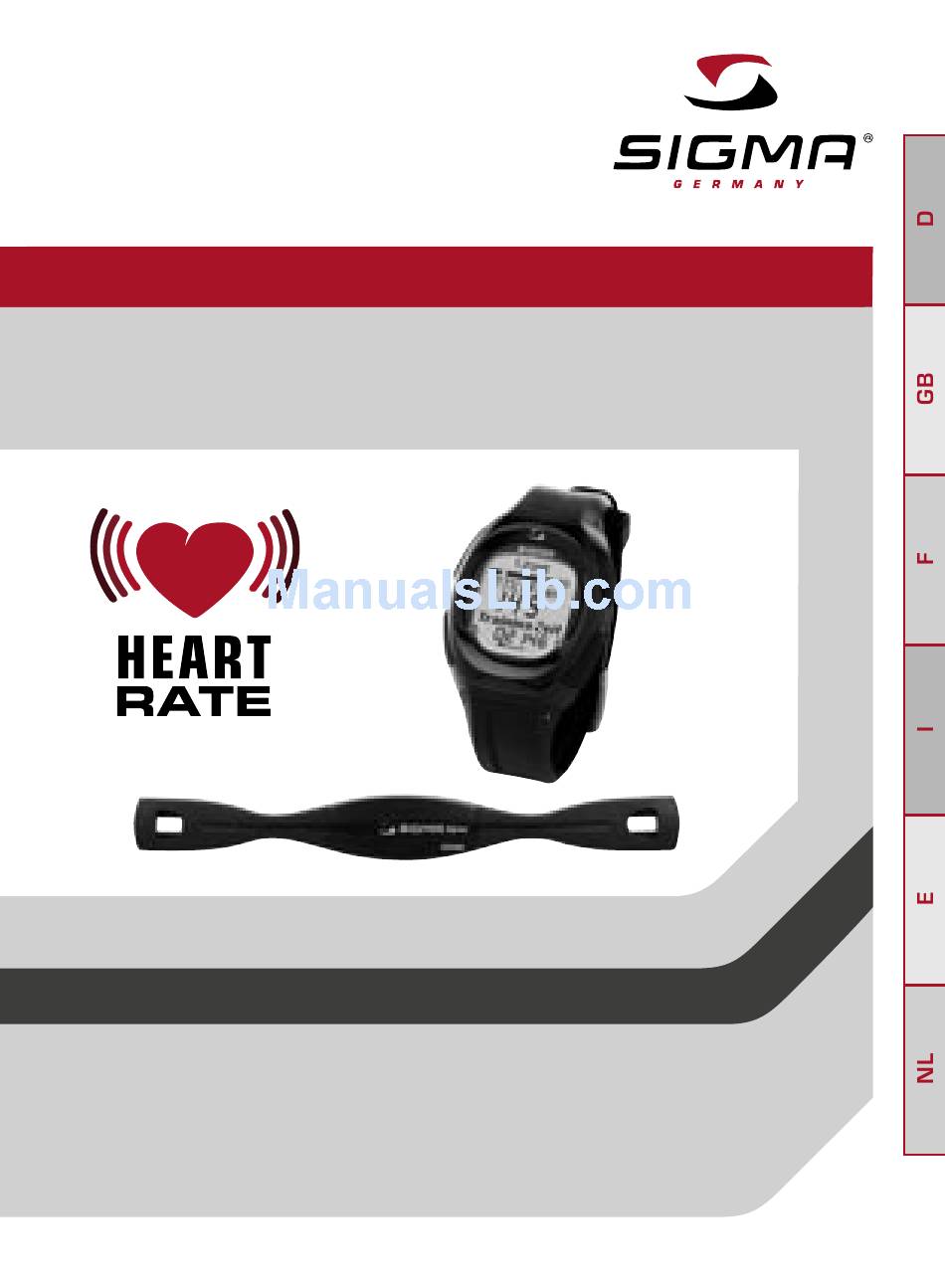

- Page 1 Heart rate Monitors TOPLINE ONYX easY DeUtsCH itaLiano enGLisH esPaÑoL FranÇais neDerLanDs...
-
Page 2: Table Of Contents
CONTENT Foreword and package contents Basic operation principle 2.1 Function summary (tree diagram) 2.2 Key occupancy and navigation principle 2.3 Fixing the chest belt / attaching the handlebar holder 2.4 Measuring the heartbeat Settings before the first training k Main menu Setting 3.1 Setting User 3.2 Setting Unit Main menu Training Main menu Time Main menu Memory 6.1 Total values 6.2 Memory... -
Page 3: Foreword And Package Contents
1. FOREWORD AND PACKAGE CONTENTS Congratulations on choosing a heart rate monitor from SIGMA SPORT . Your new ® ONYX EASY will be a faithful companion for sport and leisure for many years to come. The ONYX EASY is a technically demanding measuring device. In order to learn and apply the varied functions of your new heart rate monitor, please read this user manual carefully. SIGMA SPORT ® wishes you a lot of fun using your ONYX EASY. Heart rate monitor ONYX EASY. k ECG-accurate k Approved to medical standards Chest belt with digitally coded radio transmission. Handlebar holder to use the ONYX EASY on the bike with an O ring. -
Page 4: Basic Operation Principle
. BASIC OPERATION PRINCIPLE .1 FUNCTION SUMMARY Training Time 1 zone Clock training Date Stopwatch Countdown Alarm Memory 1 Memory Total Values Per Week Per Month Since Reset www.sigmasport.com... - Page 5 . BASIC OPERATION PRINCIPLE .1 FUNCTION SUMMARY Setting User Unit Gender Language Birthday Date Weight Clock HR Max. Volume T. zone Button tones (training zone) Zone Alarm My Name...
-
Page 6: Key Occupancy And Navigation Principle
.1 FUNCTION SUMMARY The main menus of the ONYX EASY Your ONYX EASY is classified into 4 main menus – “Training”, “Time”, “Memory” and “Setting”. The symbol and description on the screen indicates where you are in the main menu. Use the PLUS /MINUS buttons to change between the individual main menus. . KEY ALLOCATION AND NAVIGATION PRINCIPLE The ONYX EASY uses three menu levels. When navigating through the menus and sub-menus of the ONYX EASY the user can always refer to the tree diagram in Chapter 2.1 “Function summary”. The menu navigation on the ONYX EASY is made much simpler by the navigation level. The navigation level always appears when you press one of the two upper function buttons. www.sigmasport.com... -
Page 7: Fixing The Chest Belt
. KEY ALLOCATION AND NAVIGATION PRINCIPLE The possible button functions for the two upper buttons are shown in the navigation level in order to: k Move to the next deeper level (ENTER) k Go back to the next higher level (BACK /OFF) k Start training (START) k End training (END) Confirm the function shown in the navigation level by pressing the button again. Use the two lower buttons PLUS /MINUS to change between the individual menu options on one level. . FIXING THE CHEST BELT /HANDLEBAR HOLDER Connect the transmitter with the elastic belt. Use the adjusting mechanism to individually adapt the length of the belt. Ensure that you set the length of the belt so that it sits well but is not too tight. -
Page 8: Measuring The Heartbeat
. FIXING THE CHEST BELT /HANDLEBAR HOLDER Place the belt such that for men the transmitter is below the chest muscles and for women below the breasts. The SIGMA logo must always be readable from the front. Lift the belt slightly from the skin. Dampen the ribbed zones (electrodes) on the rear of the transmitter with salvia or cardio gel. Assemble the handlebar holder. Then fix the handlebar holder with the O ring and close the wristband. . MEASURING THE HEARTBEAT When you are not training your ONYX EASY is in sleep mode and can be worn as a normal watch. Before and after training the screen shows the date, time and product name. www.sigmasport.com... - Page 9 . MEASURING THE HEARTBEAT You can enter another word with up to 10 characters under the ONYX EASY font (my name function). Please refer to Chapter 3.2 “Setting unit”. To activate your ONYX EASY hold down any button for two seconds. The clock changes to active mode and you enter the training main menu. Note: At the start always refer to the tree diagram shown in 2.1. Synchronisation of Watch and Chestbelt Your ONYX EASY is equipped with a digitally coded chestbelt that enables you to have interference free training.
- Page 10 . MEASURING THE HEARTBEAT Before starting to train you have to synchronize the chestbelt with the watch once. Select “Training” in the main menu and press navigation button k ENTER. The synchronization starts automatically and takes just a few seconds. After successful synchronization your ONYX EASY gives a short confirmation with “Sync ok”. Note: If you do not see this indication on your watch synchronization has already been completed successfully. After your ONYX EASY has successfully synchronized with your chest belt you can start training by pressing k START. Note: please refer to Chapter 7.4 “Trouble- shooting” for possible problems with synchro- nization. www.sigmasport.com...
-
Page 11: Settings Before The First Training
. MEASURING THE HEARTBEAT Switch off ONYX EASY The ONYX EASY switches itself off automatically after 5 minutes if no training is undertaken. You can also turn your watch to sleep mode manually at any time. To switch off your ONYX EASY you have to be in the Main Menu. Press the Navigation button k OFF to activate sleep mode. Your ONYX EASY is again in sleep mode and can be worn as an everyday watch. . SETTINGS BEFORE THE FIRST TRAINING Before the first training session enter your personal settings. -
Page 12: Setting User
. SETTINGS BEFORE THE FIRST TRAINING Go to main menu by pressing the PLUS /MINUS button until you reach the “Setting menu” option. Press the Navigation button k ENTER to open the “Setting menu”. The “Setting main menu” is sub-divided into user, “unit” and “trai- ning settings” (Setting /User, Setting /Unit, Setting /Training). Switch between these options by pressing the PLUS/MINUS buttons. Open the relevant menu with the Navigation button k ENTER. Now various setting values are displayed in each menu. Change the setting value using the Navigation button k CHANGE. Increase /reduce the value to be set using PLUS /MINUS. Confirm the relevant setting with OK and save the setting when you have finished using k SAVE. Note: The ONYX EASY has an additional memory so that the personal settings in your ONYX EASY are retained when you are changing the battery. .1 SETTING USER In “Setting user” enter in succession your gender, birthday and weight. Your maximum heart frequency is calculated by the following equations. www.sigmasport.com... - Page 13 .1 SETTING USER The calculated max. HR (heart rate) forms the basis for deter- mining the upper and lower limits of your preferred training zone. Selecting and setting the training zone is done in the “Settings // User // Train. Zone” menu. Depending on your personal targets, you can choose to activate one of the following training zones in the ONYX EASY. 1. Fat Burner Zone: k approx. –0 % of HR max. When training at a lower intensity and hence longer period, a bigger percentage of fat than carbohydrate is used to provide energy. Therefore people who primarily want to reduce their weight and burn fat should train in this area. The recommended training period is 45-90 min. Beginners, who have not done any sport for a long time, should also start training in this area of intensity at first. This significantly reduces the danger of over-exertion and the associated health risks. . Fitness Zone: k approx. 0–0 % of HR max. Heart-circulation training is predominantly used to improve aerobic performance.
-
Page 14: Setting Unit
. SETTING UNIT The “setting unit” menu provides the language (D ,GB /USA, F, ES, IT), date, clock (12 /24 h mode) and various volume settings. The different volume settings are: Button tones: Button tones give the user acoustic feedback each time a button is pressed. Zone Alarm: On the zone alarm, an acoustic signal beeps when the user goes above or below the limits of the training zone. Please refer to Chapter 7.3 “Beep summary” for a summary of the acoustic signals. You will find information on the setting principle at the start of this chapter. In the sub menu “setting” you can personalize the ONYX EASY using the “my name” function. In sleep mode the watch displays the name or any font of up to 10 characters in length. www.sigmasport.com... -
Page 15: Main Menu Training
. MAIN MENU TRAINING Press the Navigation button k ENTER to open the main menu “Training”. After you have successfully synchronized your ONYX EASY with your chestbelt you can start your training by pressing k START. In the upper area of the screen you can find all the information on your target zone. You will see your current heart rate in the middle. In the lower area you can call up the following values during training: k Training Time k Average HR k Highest HR k KCAL k Clock Pressing the PLUS /MINUS buttons during training enables you to switch between the training values. The training zone that you are training in depends on your pre-settings in menu option 3.2 “User settings”. -
Page 16: Main Menu Time
. MAIN MENU TIME Your ONYX EASY has a main menu “Time”, for all important time functions. Summary of time functions: k Clock k Date k Stopwatch with 1/10 seconds k Countdown timer k Alarm Press the Navigation button k ENTER to open the “Time” menu. The ONYX EASY shows you the current time. Please refer to Chapter 3.2 “Unit settings” for more information setting the time in the “Setting unit” menu. www.sigmasport.com... - Page 17 . MAIN MENU TIME The ONYX EASY shows you the current date. Please refer to Chapter 3.2 “Unit settings” for more information setting the date in the “Settings main” menu. The stopwatch is used to measure time sepa- rately from training. To start your stopwatch press k START. Then follow the instructions on the screen. The stop watch on ONYX EASY can also be used with the chest belt. In this case the watch stays activated up to 19:59:59 h. Note: once started, the stop watch also conti- nues to run in the background when the watch has been put into sleep mode. In this case the display shows the stop watch symbol in sleep mode. The countdown timer counts a freely selectable time down to 0 and then issues an acoustic and optical alarm. To set the countdown timer press the Navigation button k CHANGE. Then follow the instructions on the screen.
- Page 18 . MAIN MENU TIME You can also use your ONYX EASY as an alarm or reminder. To set the alarm press the Navigation button k CHANGE. Then follow the instructions on the screen. Note: if the alarm is set to a certain time, it will go off every day at this time. To leave the “Time Menu” press the Navigation button k BACK. You are now back in the “Main Menu Time“. www.sigmasport.com...
-
Page 19: Main Menu Memory
. MAIN MENU MEMORY Press the Navigation button k ENTER to open the “Memory Menu”. Using the PLUS /MINUS buttons you can choose between the “Total values memory” and the “Individual memory”. .1 TOTAL VALUES Press the navigation button k ENTER to open the “Total Values” menu or the detailed individual memory. In “Total Values” you can see the training units you have completed over various periods of time like training diary. This enables you to monitor the most important training data over a much longer period than in the individual memory. Unlike the individual memory, this memory is not used to give an exact analysis of a single training session, but more to analyse the “training regime” over a longer period. (How regularly have I trained in a certain week or month) -
Page 20: Memory
.1 TOTAL VALUES Your ONYX EASY saves the most important total values of the training units you have completed over the following periods of time: k Per week (up to 12 weeks) k Per month (up to 12 months) k Since reset For this the following values are displayed for the desired period of time: k Number of training units k Total training time k Average training time k Kcal . MEMORY In addition to the total values, your ONYX EASY has a very detailed memory to analyse your training session. www.sigmasport.com... -
Page 21: Other Information
. MEMORY The following values are displayed for the user: k Date k Start time k Total time k Average time k Highest HR k Kcal k Time in HR zone k % in HR zone . OTHER INFORMATION .1 INFORMATION ON HEART RATE The heart rate (HR) is stated in beats per minute. Maximum Heart Rate The maximum heart rate (HR max.) is the maximum possible rate at which your heart beats when exploiting your physical performance completely. Your personal HR max. varies with your age, gender, ability to perform, performance related to your type of sport and your physical fitness. - Page 22 .1 INFORMATION ON HEART RATE We recommend undertaking this test with a doctor and repeating it regularly. The HR max. is approximated automatically in the ONYX EASY using the following mathematical equation: Men: 210 – “half age” – (0.11 x personal weight in kg) +4 Women: 210 – “half age” – (0.11 x personal weight in kg) The right training pulse: The training zone is the range in which the heart rate should move during effective and targeted training. In your ONYX EASY you can choose between the “Fat Burner Zone” and the “Fitness Zone” de- pending on your personal targets. You can find more information about this in Chapter 3.1 “User settings”. HR zone (Fat Burner Zone) –0 % of HR max.: Designed for: health for people who are new to training (or starting again). This zone is also called “fat burning zone”. More fat than carbo- hydrate is burned at low intensity for longer periods. At this low level of intensity the tendency is for more fat than carbohydrate to be burned. It is therefore recommended to train for > 40 mins. at this intensity for targeted weight loss. HR zone (Fitness Zone) – fitness 0–0 % of HR max.: Designed for: fitness at advanced level.
-
Page 23: Faq
.1 INFORMATION ON HEART RATE Personal zone: The limits of the training zone can also be changed manually. Notes about settings can be found in Chapter 3.1 “User settings”. Please always note that general exercise can never address personal issues! Therefore really ideal training can only be designed by a well educated trainer who personally knows the athlete. . FAQ What happens if I remove the chest belt during training? The watch will no longer display a signal, the screen will indicate “0” – after a short period of time the ONYX EASY goes into sleep mode (stopwatch does not operate). Do SIGMA heart rate monitors switch off completely? No – in sleep mode only the time and date are displayed so you can use the heart rate monitor as a normal watch. In this state the ONYX EASY uses only very little power. -
Page 24: Beep Summary
. FAQ Why does the display react slowly or is coloured black? The operating temperature may be too high or low. Your heart rate monitor is designed for temperatures between 0 °C and 55 °C (32–140 degrees F). What should I do if the screen display is weak? A weak display may be due to weak batteries. You should change them as quickly as possible. – battery type CR 2032 (Item No. 00342) . BEEP SUMMARY The ONYX EASY provides information with various beep signals. The different volume settings are: 1 x long: When entering Zone 3 x short: If you are below Zone 5 x short: When you are above Zone www.sigmasport.com... -
Page 25: Troubleshooting
. BEEP SUMMARY 3 x short in interval: Countdown has finished, alarm rings 1 x short: Button beep . TROUBLESHOOTING No chest belt was found. Please ensure you have placed the chestbelt correctly. Press k SYNC to restart synchro- nization. Please refer to chapter 2.4 “Heart Rate Measurement” for more information. During synchronization two or more chest belts were found close by. Move away and press k SYNC again to start synchronization. -
Page 26: Changing The Battery/Waterproofing And Warranty
. TROUBLESHOOTING Important note If no heart rate is shown on the display, this may be due to the following reasons: k The belt with the heart rate transmitter is not worn correctly. k The sensors (electrodes) on the heart rate transmitter are dirty or dry. k Interference from electrical sources (high voltage lines, railway cables, etc.). k Transmitter battery (CR 2032) is dead (Item no. 00342). Before starting to train, consult your doctor to avoid risks to your health. This applies in particular if you have cardio-vascular problems. . CHANGING THE BATTERY/WATERPROOFING AND WARRANTY Changing the battery Battery CR 2032 (Item no. 00342) is used in the heart rate monitor and chest belt. ONYX EASY is equipped with a compartment for changing the battery. Open the battery compartment with the key provided, change the battery and close the battery compartment back up. www.sigmasport.com... - Page 27 . CHANGING THE BATTERY/WATERPROOFING AND WARRANTY Waterproofing The ONYX EASY is waterproof down to 10 m. Do not press any buttons under water. Warranty We are liable to our contractual partner for faults as defined by law. Batteries are excluded from the warranty. If you need to use the warranty please contact the dealer where you bought the heart rate monitor or send the monitor with proof of purchase and all accessories with adequate postage to: SIGMA Elektro GmbH Dr. - Julius - Leber - Straße 15 D - 67433 Neustadt /Weinstraße Tel. + 49 (0) 63 21- 9120 - 118 E - mail: service@sigmasport.com If your warranty claim is justified we will send you a replacement unit. You only have the right to the current model at the time.The manufacturer reserves the right to make technical changes.
