Summary of Contents for Komatsu HD1500-7

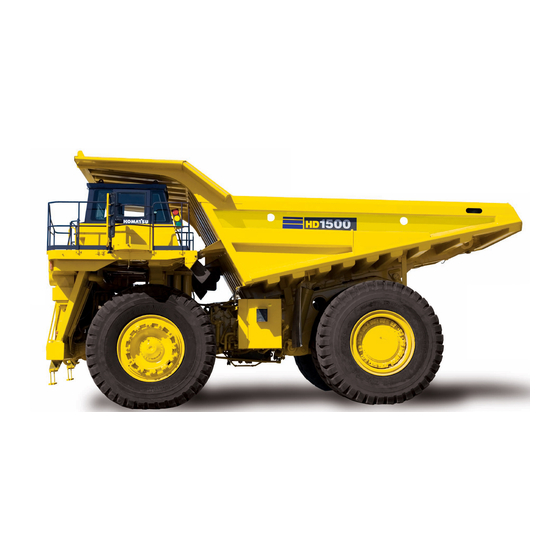

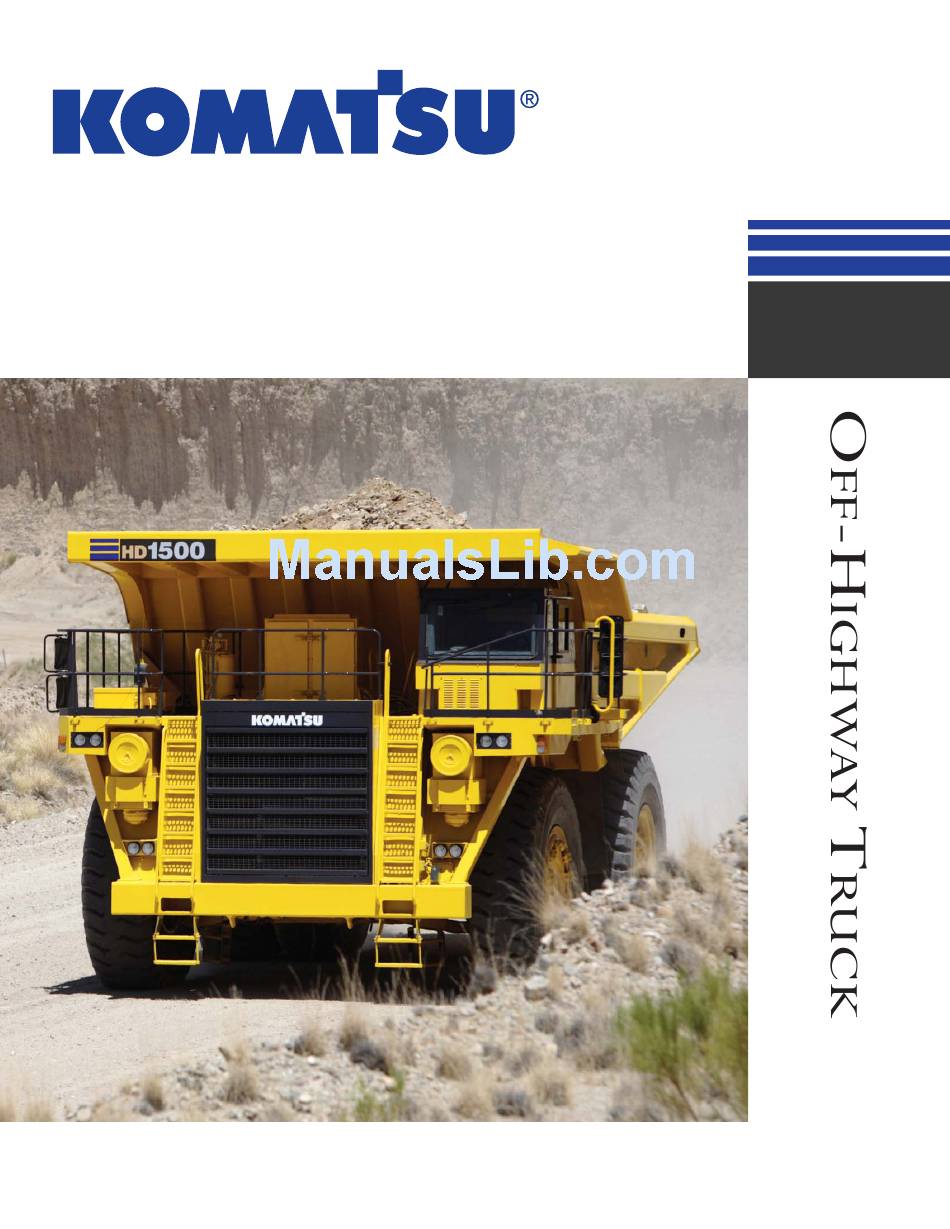

- Page 1 GROSS HORSEPOWER 1109 kW 1,487 HP NET HORSEPOWER 1048 kW 1,406 HP MAXIMUM GVW 249478 kg 550,000 lb HD1500-7 1500 Photo may include optional equipment...
-
Page 2: Reliability Features
HD1500-7 I G H W A Y R U C K ROUND Productivity and Economy Features ● High performance Komatsu SDA12V160 engine Net horsepower 1048kW 1,406HP ● Komatsu 7 speed, electronically controlled automatic powershift transmission ● 4-wheel oil-cooled, multiple-disc retarder ●... -
Page 3: Easy Maintenance
HD1500-7 I G H WAY R U C K GROSS HORSEPOWER 1109 kW 1,487 HP @ 1900 rpm NET HORSEPOWER Operator Environment and Control 1048 kW 1,406 HP @ 1900 rpm ● Spacious cab with excellent visibility MAXIMUM GVW ● Ergonomically-designed cab 249478 kg 550,000 lb ●... - Page 4 HD1500-7 I G H W A Y R U C K RODUCTIVITY & CONOMY EATURES High Performance Komatsu SDA12V160 Engine The Komatsu SDA12V160 engine provides the highest horsepower in it’s class. With 1487 gross horsepower, this engine delivers faster acceleration and higher travel speeds with a high horsepower-to-ton ratio.
- Page 5 HD1500-7 I G H WAY R U C K Auto Retard Speed Control (ARSC) Automatic Idling Setting System (AISS) ARSC allows the operator to simply set the downhill travel This system facilitates quick engine warm-up and cab cooling/warming. When setting the system ON, speed and go down slopes at a constant speed.
- Page 6 HD1500-7 I G H W A Y R U C K Long Wheelbase and Wide Tread With an extra-long wheelbase, a wide tread, and an exceptionally low center of gravity, the HD1500-7 hauls its load at higher speed for greater productivity, and delivers superior driving comfort over rough terrain.
- Page 7 HD1500-7 I G H WAY R U C K PERATOR NVIRONMENT Vehicle Health Monitoring System (VHMS) Spacious Cab with Excellent Visibility VHMS controller monitors the health conditions of major The HD1500-7 cab inherits the superior design features of components and enables remote analysis of the machine Komatsu's ultra-class haul trucks.
- Page 8 HD1500-7 I G H W A Y R U C K Automatic Spin Regulator (ASR) Automatic Lubrication System ASR automatically maximizes traction by preventing the The Lincoln Auto-lube system rear tires from slipping on either side. features a deck mounted canister, ground level refill point, and an Integral Four-Post ROPS/FOPS Cab Structure adjustable timer to ensure all pivot...
- Page 9 HD1500-7 I G H WAY R U C K -7 F EATURES Komatsu Components Reliable Hydraulic System Komatsu manufactures the torque converter, A large capacity oil cooler is installed in each hydraulic circuit, improving the reliability of the hydraulic units during transmission, hydraulic cylinders, and electrical parts on this sudden temperature rises.
-
Page 10: Specifications
HD1500-7 I G H W A Y R U C K PECIFICATIONS ENGINE BRAKES Model ....... . . Komatsu SDA12V160 Brakes meet ISO 3450 standard. - Page 11 HD1500-7 I G H WAY R U C K DIMENSIONS AND PERFORMANCE TRAVEL PERFORMANCE To determine travel performance: Read from gross weight down to the percent of total resistance. From this weight-resistance point, read horizontally to the curve with the highest obtainable speed range, then down to maximum speed. Usable rimpull depends upon traction available and weight on drive wheels.
-
Page 12: Optional Equipment
STANDARD EQUIPMENT ● Heat shield behind engine POWERTRAIN –hourmeter ● Air cleaner (2); battery disconnect; ● Horn, electric (2) –odometer ● Ladder, deck-to-transmission engine electronic control; engine –torque converter temperature ● Ladders, right and left (front) electronic monitor; engine overspeed –warning lights ●...
