C

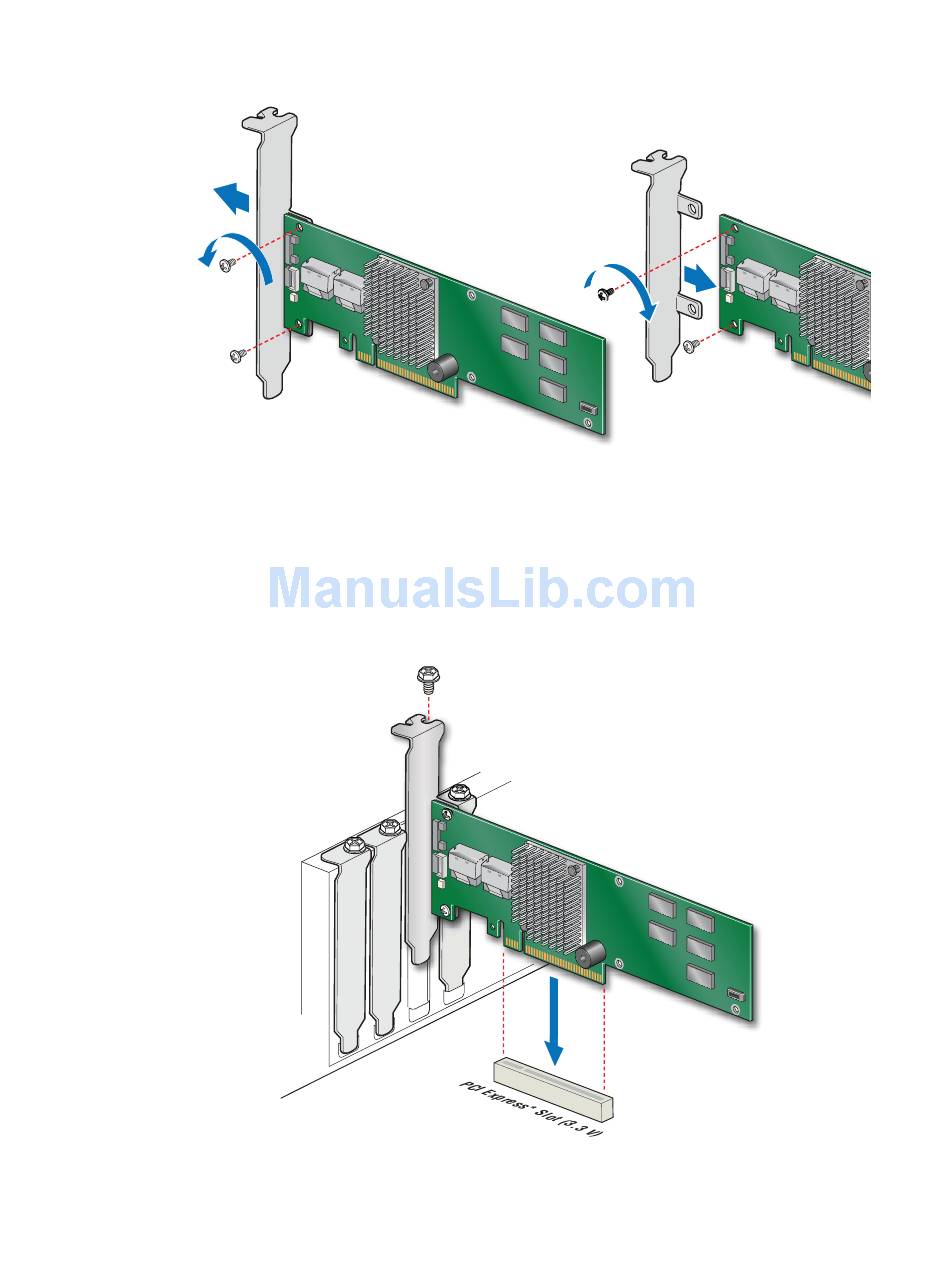

Figure 1. Changing the Bracket

4. Install the RAID controller into an available server system x8 or x16 PCI-Express*
slot (see Figure 2). To locate an appropriate slot and for instructions on installing an
add-in card, see your server system documentation.
AF003196
®
Figure 2. Installing the Intel RAID Controller RT3WB080
8 Intel® RAID Controller RT3WB080 Hardware User's Guide
