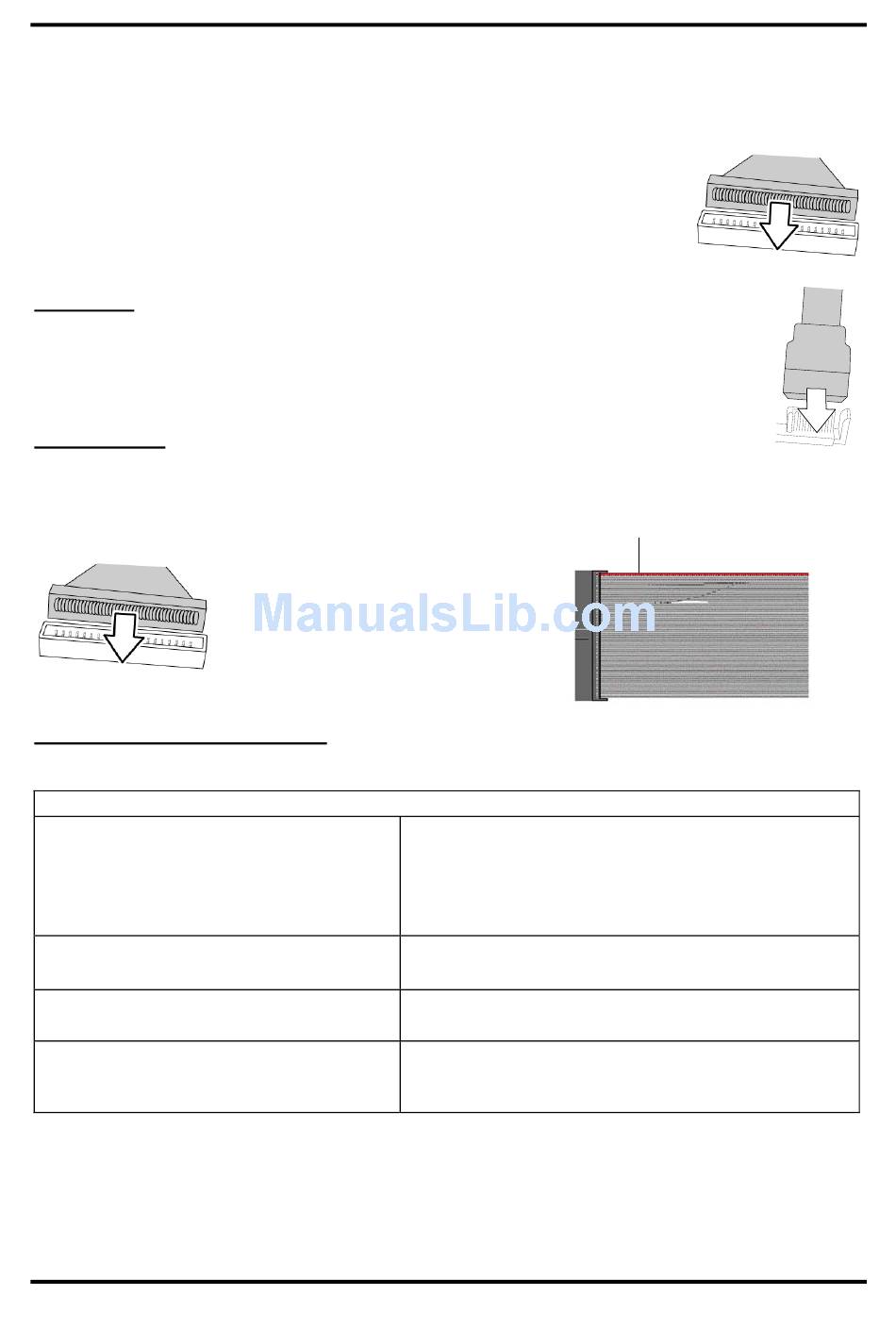

2.7 Installing Drive Cables
IDE and FDD connectors are "keyed" to only allow insertion only one way. TYAN
motherboards have two on-board IDE channels, each supporting two drives. The black
connector is a standard IDE channel. Only the blue connector
supports RAID.
Insert the IDE cable as shown in the diagram.
TIP: When connecting to an IDE cable to a drive, Pin 1 on the IDE
cable (usually designated by a colored wire) should be closest to the
drive power connector.
Serial ATA
Attaching Serial ATA cables to the Serial ATA connectors is illustrated below:
Plug in one end of the Serial ATA cable into the motherboard Serial ATA
connector, and the other end into the drive. Each standard Serial ATA cable has
two connectors, one at each end. Connectors are the same on both ends.
Floppy Drives
Floppy disk drive (FDD) cables can be installed in the same way as IDE cables. Usually
connectors are keyed to prevent insertion the wrong way. In most cases the cable should be
inserted into the drive with pin 1 closest to the power input. FDD cables usually have a single
red wire that marks pin 1. See the diagram below.
Troubleshooting Floppy Drives
See the chart below for troubleshooting floppy disk drive installations.
Symptoms of incorrectly installed floppy drives
Drive is not automatically detected
Drive Fail message at boot up
Drive does not power on
Drive activity light is constantly on
Usually caused by faulty cables, cables put in
backwards or a faulty floppy drive. Try another
floppy drive or try replacing the cable. Check to
see if the onboard floppy controller is enabled in
the BIOS setup.
The cable, floppy drive or motherboard may be
faulty. Try another drive or cable.
Check power cable and cabling. A faulty power
supply or drive cable could be the problem.
Usually signifies that the cable on the drive is
inserted backwards. Reverse the cable at the
floppy drive end and try again.
2-18
http://www.tyan.com
Chapter 2: Board Installation
Colored cable denotes pin 1
