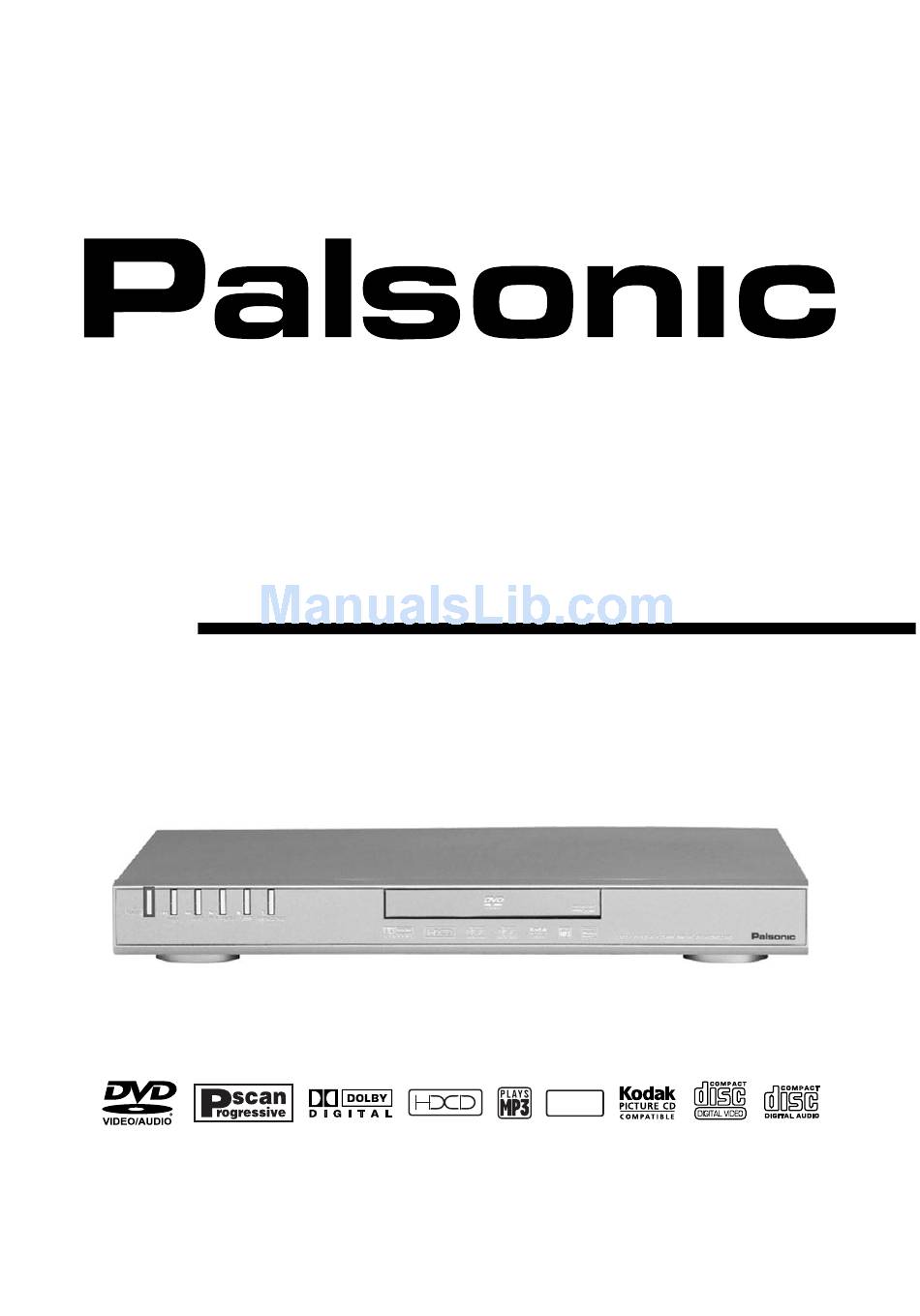

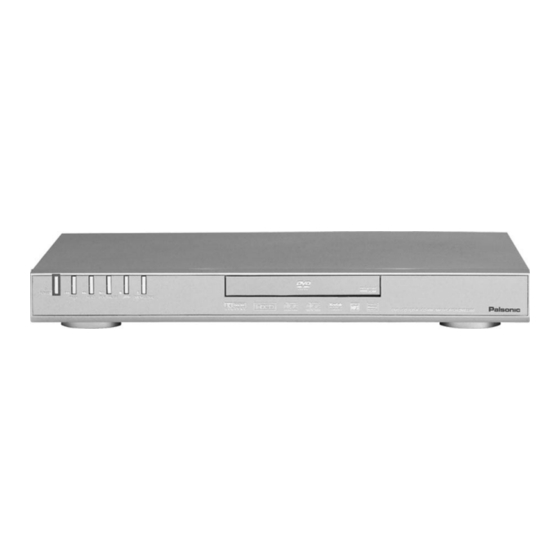

- Page 1 DVD2880PS User's Manual DVD Player...
-
Page 2: Table Of Contents
Content Introduction Safety Precautions ....................... Important Safety Instructions..................Caution ......................... Features ........................Front Panel and Rear Panel Illustration ............... Remote Control ......................Connections Connecting to a TV Set ....................Connecting to an AV Receiver with 2 Channel Analog Audio Input ......Connecting to an AV Receiver with 5.1 Channel Analog Audio Input ...... -
Page 3: Introduction
Safety Precautions Introduction Welcome to the purchase of our DVD player. For perfect operation and security please read the manual carefully and keep it for future reference CAUTION: THE UNIT EMPLOYS A LASER SYSTEM. TO CAUTION ENSURE THE PROPER USE OF THE UNIT, READ THIS MANUAL CAREFULLY AND KEEP IT FOR RISK OF ELECTRICAL SHOCK FUTURE REFERENCE. -
Page 4: Important Safety Instructions
Important Safety Instructions Introduction 1. READ INSTRUCTIONS 10. VENTILATION All the safety and operating instructions should be Slots and openings in the case are provided for read before the product is operated. ventilation to ensure reliable operation of the product and to protect it from overheating. and these 2. - Page 5 Important Safety Instructions Introduction 20. SERVICING 15. OUTDOOR ANTENNA GROUNDING Do not attempt to service this product yourself as If an outside antenna or cable system is connected to opening or removing covers may expose you to the product, be sure the antenna or cable system is dangerous voltage or other hazards.
-
Page 6: Caution
Caution Introduction Please use the original box and packing materials for safe transportation of the product. It is normal for the cover and rear panel become warm after the player has been operating for an extended period of time. Do not move this product during playback. Doing so may cause damage to the pick-up and the disc. -
Page 7: Features
Features Introduction Progress Scan Video output. Full compatibility with DVD, SVCD ,VCD, CD, MP3, Kodak Picture CD, CD-R and CD-RW (finalised). Multiple playback modes: Program, Search, 10-Second Review. Dynamic spectrum display. Coaxial digital audio output. S-video, composite video and component (Y,Pb/Cb,Pr/Cr) video outputs. Disc formats supported by this player: Dolby Digital system Progressive scan... -
Page 8: Front Panel And Rear Panel Illustration
Front Panel and Rear Panel Illustration Introduction Front panel 2 3 4 5 6 1. Power button 5. Stop button 2. Previous button 6. Open/close button 3. Next button 7. Disc tray 4. Play/Pause button Rear panel Video Pb/Cb Audio 1 Audio 2 Optical S-Video... -
Page 9: Remote Control
Remote Control Introduction ON/STANDBY OPEN/CLOSE TITLE MENU ON/STANDBY OPEN/CLOSE MENU TITLE DISPLAY DISPLAY SETUP SETUP NUMBER KEYS PS/IS CLEAR PS/IS CLEAR SEARCH SEARCH ENTER ENTER SLOW RETURN RETURN SLOW STEP STOP PLAY/PAUSE STEP STOP PREV NEXT NEXT PREV ZOOM PROGRAM REPEAT ZOOM PROGRAM... -
Page 10: Connections
Connecting to a TV Set Connections Video Optical Audio 1 Audio 2 S-Video Coaxial Component Video WHITE YELLOW Component Video (for progressive scan) VIDEO IN VIDEO S-VIDEO VIDEO IN AUDIO IN Notes: There are three ways of connecting the player's AV output to the TV set: 1. -
Page 11: Connecting To An Av Receiver With 2 Channel Analog Audio Input
Connecting to an AV amplifier with 2 Channel Analog Audio Input Connections Video Optical Audio 1 Audio 2 S-Video Coaxial YELLOW WHITE VIDEO VIDEO IN AMPLIFIER VOLUME INPUT SELECTOR POWER BYPASS PRO LOGIC 3 STEREO MODE TEST CHANNEL KARAOKE MUTE DOWN BASS TREBLE... -
Page 12: Connecting To An Av Receiver With 5.1 Channel Analog Audio Input
Connecting to an AV amplifier with Digital Audio Input Connections Video Optical Audio 1 Audio 2 S-Video Coaxial Optical cable Optical Coaxial VOLUME INPUT SELECTOR POWER BYPASS PRO LOGIC 3DSTEREO MODE TEST CHANNEL KARAOKE MUTE DOWN BASS TREBLE ECHO MIC VOL EXCITE Notes: 1. -
Page 13: Basic Playback
Basic Operation Basic Playback Preparation before playing: 1. Connect your DVD player to the TV and amplifier. 2. Turn on the television, and select the AV input channel you have connected. 3. Turn down the amplifier volume and turn on the power of amplifier, then select the audio input to the channel you have connected. -
Page 14: Advanced Features
Modes and Features Setup Advanced Features SETUP In stop mode, press SETUP, and the TV screen will display the Setup Menu as follows: Language Video Audio Rating Press to change items. Setup Menu A. Press select to display each submenu B. - Page 15 Modes and Features Setup Advanced Features Language Setup Select [Subtitle], and press SELECT or to display the [Subtitle] submenu: Language Video Audio Rating OSD Menu English Subtitle English English Audio English Francais Press to change your selection. DVD Menu English Esponal Note: Subtitle languages vary by disc.
- Page 16 Modes and Features Setup Advanced Features Video Setup Select [Video], in the Setup Menu, and press SELECT to display the [Video] submenu: Language Video Audio Rating TV signal 4:3 PS Press TV system NTSC select the menu item Video Output S-Video A.
- Page 17 Modes and Features Setup Advanced Features Select [Video Output], and press SELECT or to display Language Video Audio Rating the [Video Out] submenu: A. Press SELECT to confirm. TV signal 4:3 PS B. Press SETUP to exit the Setup Menu. TV system NTSC Video Output...
- Page 18 Modes and Features Setup Advanced Features Rating Setup The Rating menu allows you to block playback of DVDs based on their ratings. Language Video Audio Rating 1:Kid Safe Password ---- Setting the Password & Rating Level 3:PG Rating 8 Adult The DVD player allows you to block playback 4:PG-13 LOAD factory...
-
Page 19: Remote Control Operation
Remote Control Operation Advanced Features POWER During playback, press POWER to stop the player and return to standby mode. While the player is in standby, press POWER or any key on the front panel to resume normal operation. OPEN/CLOSE To open the disc tray, press OP/CL. To Close the disc tray, press OP/CL again 0-10+ Keys These keys are used to input time, as well as... - Page 20 Remote Control Operation Advanced Features DISPLAY During playback, press DISPLAY to display the current time counter position. Elapsed time of the current track/chapter. 00:00:01 0:04:45 Press DISPLAY again to display additional information about the playing disc. Elapsed time of the current track. Disc type CDDA 00:00:01 0:04:45...
- Page 21 Remote Control Operation Advanced Features SEARCH During playback, press SEARCH, and the [Tack Search] menu will display as follows: Track Search Time -:--:-- Track Note: Time searches for an exact time in Search the movie. -:--:-- Time In Title/Chapter mode, you cannot --/-- Track/Chapter select a value outside the range of the...
- Page 22 Remote Control Operation Advanced Features During DVD or CD/VCD playback, press once to play the next chapter, title or track. During DVD or CD/VCD playback, press and hold to scan forward. The player will review the disc at 2, 4, 8 and 20 time normal speed as follows.
- Page 23 Remote Control Operation Advanced Features PLAY/PAUSE Press PLAY from stop mode to start playback Press PLAY during playback to replay the last 10 seconds. This function is not available if the elapsed time of current track is less than 10 seconds. Note: MP3 disc and some DVD discs do not have a 10 second review feature.
- Page 24 Remote Control Operation Advanced Features While [PROG] is on, press SELECT to display the [Program] submenu: Input the track numbers in the order you would like them to play. When finished, select [Play Program] and then press SELECT to play tracks in the new programmed order. Select [Clear All] and press SELECT to clear all the numbers you have input.
- Page 25 Remote Control Operation Advanced Features Press N/P when in STOP mode to select the mode from NTSC/PAL/AUTO. SLOW Press SLOW repeatedly to SLOW DOWN motion playback at variable speeds. STEP Press STEP during playback to pause playback. Press STEP repeatedly to play frame. Press PLAY to resume normal playback.
- Page 26 Remote Control Operation Advanced Features RETURN Press RETURN to the main menu when PBC is on. VOL+ VOL- Press Volume <VOL+> button to increase Volume. Press <VOL-> button to reduce volume till no volume output. During VCD playback. Press PBC (playback control) to select PBC an and off. MUTE Press MUTE to mute the Audio output.
-
Page 27: Mp3 Playback
MP3 Playback Advanced Features Supported formats Disc format: ISO9660, Joliet Music file format: MP3 MP3 bit rate (data rate): 32 - 192 kbps Total number of music files and albums: around 350 per disc. Sampling rate: (CBR)32kHz/44.1kHz/48kHz/64kHz; (VBR) 16kHz/22kHz/24kHz/32kHz (MPEG) Note: The player will not identify or play MP3 discs under the following conditions: recording format is not supported, badly scratched or deformed disc, MP3 recorded in CD-R or CD-RW which is not finalised, or a dirty pickup. -
Page 28: Kodak Picture Cd Playback
Kodak Picture CD Playback Advanced Features The introduction of KODAK PICTURE CD A Kodak Picture CD has the size and shape of a regular CD. You can order a KODAK Picture CD simply by checking the box on the photo finishing envelope when you drop off a roll of film (35mm or Advanced Photo System (APS) colour print film) at the time of processing in Kodak Express store displaying "Kodak Picture CD"... -
Page 29: Others
Troubleshooting Other Please read the user's manual carefully before using the DVD player. If you are having any troubles in using this player, try to solve the problems by the suggestions mentioned below. If you can not correct the trouble after using all the suggestions, please contact our company or the technical service centre authorised by us. -
Page 30: Remote Control Preparation
Point the remote control at the remote sensor. (The pictures are only for reference) Windows Media DVD / CD / CD-R / CD-RW / MP3 PLAYER DVD2880PS DIGITAL AUDIO DIGITALVIDEO 2. Insert batteries. Make sure to match the "+" and "-" of the batteries with the marks inside the battery compartment. -
Page 31: Specifications
