JRC JUE-500 Brochure

Fleetbroadband quality voice and high-speed data proven antenna design single coax installation dedicated compact solution wide range of interfaces as standard
Hide thumbs
1
2
3
4
5
6

Advertisement

Quick Links

Download this manual

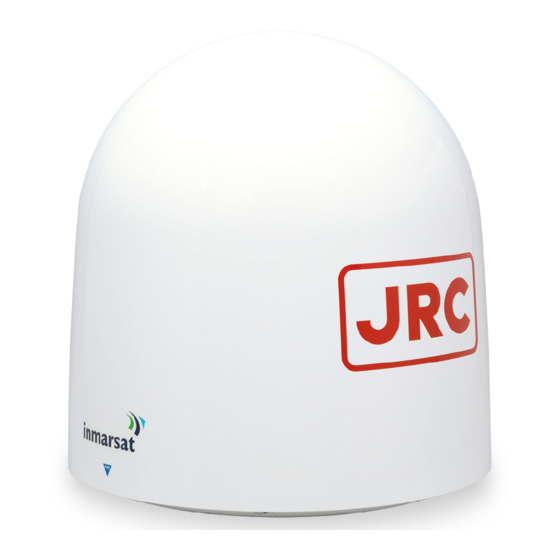

JUE-500
FleetBroadband
– with the new JRC JUE-500 FleetBroadband FB500 onboard communication has never been this fast
Quality voice and high-speed data
Proven antenna design
Single coax installation
Dedicated compact solution
Wide range of interfaces as standard

Advertisement

loading

Related Manuals for JRC JUE-500

Summary of Contents for JRC JUE-500

  • Page 1 JUE-500 FleetBroadband – with the new JRC JUE-500 FleetBroadband FB500 onboard communication has never been this fast Quality voice and high-speed data Proven antenna design Single coax installation Dedicated compact solution Wide range of interfaces as standard...
  • Page 2 Antenna design The antenna base which is located inside dome is solid piece of aluminum, making it stable and durable. JRC adapted its proven three-axis control. The antenna size is greatly reduced by using the latest technologies. Our company’s long experience of antenna design ensured the antenna is robust and easy to install.

  • Page 3: Easy To Install

    • Store and forward video JRC StarNetwork™ JRC has been providing sales and support of products since 1915. Today, JRC o ers comprehensive assistance through its organisation, in partnership with a worldwide StarNetwork™ of over 270 fully trained and quali ed partners and agents, assisting you 24 hours a day, 7 days a week and 365 days a year.
  • Page 4 – system ˜ exibility Global coverage The JRC FB500 is the latest in a long range of Inmarsat products and will take your vessel into the IP era. Delivered via the most advanced commercial communication satellites ever launched by Inmarsat, voice, fax and high-speed data connectivity is globally available through the JRC FB500 solution, except for the extreme polar regions.
  • Page 5 JUE-500 FleetBroadband – dimensions and weights Dimension drawings - Above Deck Equipment GSC-501 Mass 25 kg 4-M10 bolts 683 mm 630 mm 290 mm Dimension drawings - Below Deck Equipment GSC-502 Mass 2,2 kg 72 mm 221 mm 198 mm 166 mm Dimension drawings - Handset NQW-267...
  • Page 6 JUE-500 FleetBroadband – speciÿ cations Model JUE-500 Inmarsat type approved Frequency Transmit 1626.5 to 1660.5 MHz Receive 1525.0 to 1559.0 MHz Communication Standard IP up to 432 kbps Streaming IP up to 256 kbps Voice 4 kbps Audio 64 kbps 3.1 kHz (for fax and analogue modem) ISDN 64 k/56 kbps for ISDN video phone, G4 fax Antenna...
