VDO VDR 3202-B Datasheet

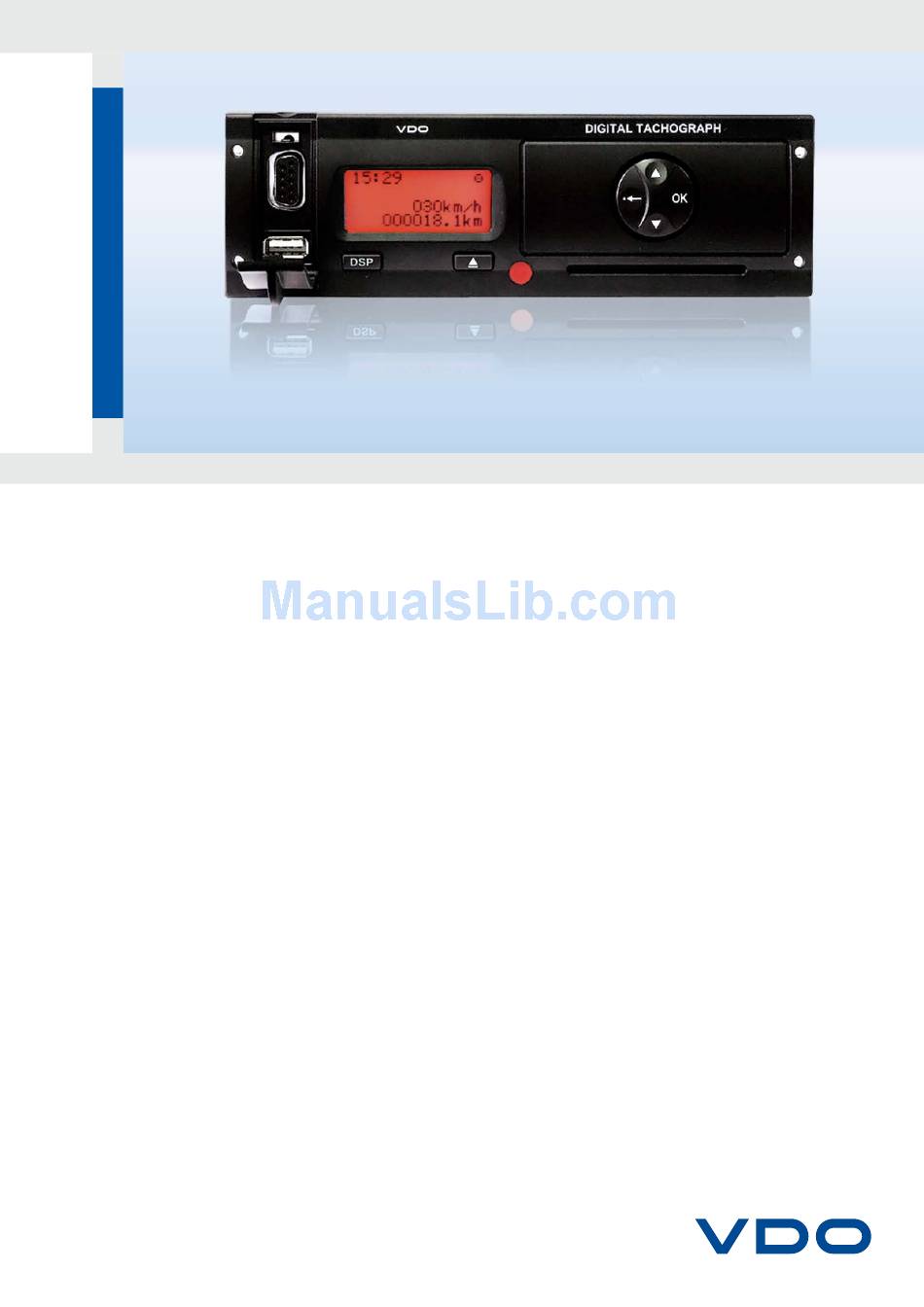

VDR 3202-B
Digital tachograph
The VDR 3202 release B is a digital tachograph for the
Chinese market. It meets the requirements of the
standard GB/T19056-2003 as well as of international
en vironmental and electrical automotive standards.
It benefits from the worldwide experience of VDO in
tacho graphs and combines a high quality with a wide
range of functionalities.
It allows data, such as driving and rest times, speed,
rpm, status inputs, as well as information needed for
calibration, to be digitally recorded.
The VDR 3202-B fits into a standard 1-DIN radio slot
and consists of a recording unit with mass memory.
Different configurations regarding the chip card
reader, the printer, the illumination and the CAN inter-
face are available in order to meet all the customers'
requirements.
Thanks to its seals preventing from opening the hous-
ing or removing the connectors, the smart cards and
the possibility to use smart sensors KITAS 2171 the
VDR 3202-B is a highly tamperproof system.
Data relating to the vehicle and driver are stored in an
integral mass memory with capacity for recording
activities for approx. 360 hours. Accident data stored
into the mass memory can provide important infor-
mation for the vehicle accident analysis. Additionally
important driver-related data are stored on a personal
driver card (smart card) inserted into the digital tacho-
graph before each journey or shift begins.
The VDR 3202-B has interfaces for connecting to on-
board electronics or an instrument cluster (electronic
speedometer). Mass memory data can be uploaded
via the front RS232 and USB interfaces. RS232 inter-
face is also used to calibrate the system (note that only
authorized service partners are permitted to perform
system calibration).
It is exceptionally easy to upload, evaluate and store
this digital data for business management purposes.
We offer appropriate solutions such as the VDRDMS
software.
