Storage Area Network
Configurations for
RA8000/ESA12000 on
Windows NT – Intel
Visit Our Web Site for the Latest Information
At Compaq we are continually making additions to our storage solutions product line. Please check
our web site for more information on the complete line of Fibre Channel storage products, product
certification, technical information, updates to this document, and other available documentation.
This information can be accessed through our web page at:
Introduction
This application note describes fibre channel switch based Storage Area Network (SAN)
configurations for RA8000/ESA12000 storage systems on Windows NT Intel platforms. For mixed
platform heterogeneous SAN configurations refer to the "Heterogeneous Storage Area Networks"
application note, and the applicable platform specific application notes listed in Table 3.
Enterprise Network Storage Architecture (ENSA)
The Compaq Enterprise Network Storage Architecture is key to supporting Compaq's NonStop
eBusiness strategy; through ENSA, Compaq leverages industry standards to allow deployment of
storage where applications need it. ENSA uses the Compaq StorageWorks product family to deliver
the storage solutions that address non-stop computing requirements like availability, reliability,
performance, scalability, manageability, and data backup/restore capabilities. ENSA addresses the
storage issues that our customers expect to face now and in the future. Compaq SANs address today's
issues including:
Data protection
High availability
Increased distance
High connectivity
High bandwidth
Multi-vendor platform support
Enterprise backup support
Economical capacity growth
Scalability
Investment protection
With the addition of multi-switch fibre channel Fabric support in the RA8000/ESA12000 FC storage
products and the integration of Enterprise Backup Solutions into the SAN, Compaq has taken the next
evolutionary step in delivery of the ENSA vision. Our customers can now realize the full benefits of a
scalable Storage Area Network providing the robust backbone needed to address dispersed server
operation with shared storage access and backup across the enterprise.
Copyright © 1999, Compaq Computer Corporation
Printed in U.S.A.
All Rights Reserved
www.compaq.com/storageworks
Application Note
AA-RHH6B-TE
AA–RHH6B–TE
Page 1
Advertisement

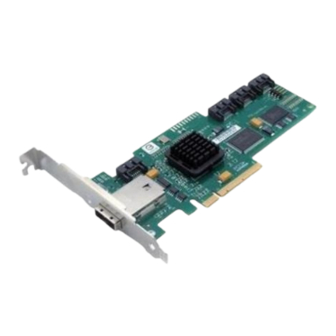

Related Manuals for Compaq 295242-B21 - RAID Controller - UW SCSI 40 MBps
Summary of Contents for Compaq 295242-B21 - RAID Controller - UW SCSI 40 MBps
- Page 1 ENSA addresses the storage issues that our customers expect to face now and in the future. Compaq SANs address today’s issues including:...
-
Page 2: Product Overview
For the highest availability, two hardware paths between the cluster servers and the RA8000 or ESA12000 FC storage system can be configured using Compaq’s Secure Path for Windows NT. This configuration provides two separate physical paths between the servers and the storage. - Page 3 SAN Enterprise Backup Management Legato NetWorker and SmartMedia software manages and automates the backup-and-restore process using Compaq servers, disk arrays, tape libraries and FC interconnect hardware. SAN Access Management Switch Fabric Zoning – The FC switch Zoning feature provides a means to control SAN access at the node port level.
- Page 4 SAN Configurations for RA8000/ESA12000 on Windows NT - Intel those that are allowed access. Additionally, SSP allows the setting of host modes and LUN offsets for each HBA connected to the array. The host mode is specially tailored to the storage communication techniques of the operating system.
- Page 5 Fabric rules, platform and disk storage connectivity rules, Enterprise Backup integration rules and Compaq Secure Path for Windows NT rules. The configuration information is presented in the form of rules to provide for flexibility and customization depending on the specific customer need.
- Page 6 Line 2 in Table 2 lists the configuration maximums for Windows NT Intel platforms in a heterogeneous SAN configuration. If implementing a SAN for high availability storage using Compaq Secure Path for Windows NT, refer to the Secure Path configuration rules.
- Page 7 Application Note Windows NT Server/Storage Rules Table 2 describes the Windows NT Intel platform maximums when in a homogenous Windows NT SAN and when using Windows NT Intel platforms in a heterogeneous mixed platform SAN. Table 2 Guidelines for Windows NT Intel Platform Supported Maximums Active Active Controller...
- Page 8 The maximum number of LUNs per HSG80 controller pair is 128 Dual redundant controllers can be configured for Transparent Failover Mode or Multiple-Bus Failover Mode. Multiple-bus Failover mode requires Compaq Secure Path for Windows NT on the server Each storage system can be configured using SWCC or the Command Line Interface (CLI) through either the HSG80 controller maintenance serial port or a TCP/IP interface All configurations utilize ACS V8.5F (Array Controller Software) configured for FABRIC...
- Page 9 Supports backup for up to 2 RA8000 or 1 ESA12000 (4 controller pairs) storage systems Compaq Secure Path for Windows NT Rules All High Availability Multiple-Bus Failover configurations require Compaq Secure Path for Windows NT (minimum revision v2.2) and two physical paths to a pair of controller ports on the storage system One instance of the Secure Path Manager can control two paths on up to 4 storage systems.
-
Page 10: Configuration Descriptions
Table 2 for each configuration. All configurations support a mix of both clustered and non-clustered (MSCS) servers. All configurations are supported with all Compaq supplied 16-port and 8-port FC switches. Table 3 RA8000 / ESA12000 SAN Fabric Configurations Windows NT - Index... - Page 11 Application Note SAN Fabric Configuration 1 - One FC Switch, Controller Transparent Failover Mode, Integrated EBS SAN Fabric Configuration 1 (Figure 2) is a general-purpose configuration that provides connectivity for multiple servers, disk storage, and tape storage all on a single SAN. Up to 12 separate non- cooperating servers or up to 6 pairs of clustered cooperating servers can be connected through a 16- port switch providing access from all servers to a single storage system.
- Page 12 SAN Configurations for RA8000/ESA12000 on Windows NT - Intel Or Maximum Storage Capacity, Up to 2 Storage Systems (6 storage ports/3 Active, 3 Standby) and 2 Servers [8 – 2 server ports = 6 storage ports] All HSG80 array controllers configured in Transparent Failover Mode EBS Integration Supported SAN Configuration 1 Fabric Rules Total Switches = 1, 16-port or 8-port...
- Page 13 This SAN configuration utilizes the high availability features of controller Multiple- Bus failover and Compaq Secure Path for Windows NT software. With 2 FC HBAs in each server, and 2 FC switches, a second separate path to the storage is provided to each server. The 2 switches form isolated Fabrics providing the highest level of storage path fault tolerance should a failure occur with any path component - FC HBA, FC Switch, Fabric path interconnect, or storage controller.
- Page 14 Refer to general Fabric rules for other cable types SAN Configuration 2 Notes Uses Compaq Secure Path for Windows NT (minimum version 2.2) When configured with greater than 4 FC HBA's per active controller host port, classified as an “NT Extended Configuration”...
- Page 15 Application Note SAN Fabric Configuration 3 – Two FC Switches, Cascaded, Controller Transparent Failover Mode, Integrated EBS SAN Fabric configuration 3 (Figure 4) is a general purpose single Fabric cascaded switch configuration that provides increased server, disk, and tape storage connectivity capabilities. Up to 22 separate (non-cooperating) servers or up to 11 pairs of clustered (cooperating) servers can be connected through a 16-port switch providing access from all servers to 2 storage systems.
- Page 16 SAN Configurations for RA8000/ESA12000 on Windows NT - Intel [32 – 2 ISL ports – 8 storage ports = 22 server ports] Maximum of 16 servers configured on one controller pair Maximum of 8 servers configured on any one active controller host port Or Maximum Storage Capacity, Up to 7 Storage Systems (26 Storage Ports/13 Active, 13 Standby) and 4 Servers [32 –...
- Page 17 This SAN configuration utilizes the high availability features of controller Multiple- Bus failover and Compaq Secure Path for Windows NT software. With 2 FC HBA’s in each server and 4 FC switches in 2 separate isolated Fabrics, a second separate path to the storage is provided to each server.
- Page 18 Each FC Switch within a path must have a unique domain number (Domain_ID) Uses Compaq Secure Path for Windows NT (minimum version 2.2) One instance of the Secure Path Manager is required for each standalone server or each pair of clustered servers.
- Page 19 Application Note FC switch Zoning to create separate Zones for each of the server groups that you wish to configure with specific storage systems. When configured with greater than 4 Windows NT Servers per active controller host port, classified as an “NT Extended Configuration” (refer to the StorageWorks Windows NT Platform Kit FC Software Setup Utility) Performance considerations, assuming relatively equal server load: If using two storage systems, for balanced performance across all servers, configure half of...
- Page 20 SAN Configurations for RA8000/ESA12000 on Windows NT - Intel SAN Fabric Configuration 5 – Three FC Switches, Cascaded Meshed Fabric, Controller Transparent Failover Mode SAN Fabric configuration 5 (Figure 6) is a meshed Fabric cascaded switch configuration that provides increased server, disk, and tape storage connectivity capabilities in addition to Fabric resiliency.
- Page 21 Application Note 16-port FC Switches, total number of switch ports available for Servers and Storage is 42 Maximum Server Connectivity, Up to 30 Servers and 3 Storage Systems (12 storage ports/6 Active, 6 Standby) [48 – 6 ISL ports – 12 storage ports = 30 server ports] Maximum of 16 servers configured on any one controller pair Maximum of 8 servers configured on any active controller host port Or Maximum Storage Capacity,...
- Page 22 SAN Configurations for RA8000/ESA12000 on Windows NT - Intel For high bandwidth applications – One ISL between switches for every 2 storage controller ports on one switch being accessed by a server on the other switch. For high throughput applications – One ISL between switches for every 6 storage controller ports on one switch being accessed by a server on the other switch.
- Page 23 Application Note SAN Fabric Configuration 6 – Four FC Switches, Cascaded Meshed Fabric, Controller Transparent Failover Mode SAN Fabric configuration 6 (Figure 7) is a meshed Fabric cascaded switch configuration that provides the maximum server and storage connectivity available in a single Fabric. All of the switches in the Fabric are interconnected providing alternate paths within the Fabric.
- Page 24 SAN Configurations for RA8000/ESA12000 on Windows NT - Intel SAN Configuration 6 Server/Storage Connectivity Rules Any mix of Windows NT Intel Servers - standalone or clustered, and storage systems using these maximums. Assumes 1 FC HBA per server, an even storage port count, and no EBS ports. 16-port FC Switches, total number of switch ports available for Servers and Storage is 52 Maximum Server Connectivity, Up to 40 Servers and 3 Storage Systems (12 storage ports/6 Active, 6 Standby)
- Page 25 Application Note storage system. (See Windows NT Server/Storage Rules). This situation can be avoided by using FC switch Zoning to create separate Zones for each of the server groups that you wish to configure with specific storage systems. Performance considerations, assuming relatively equal server load: If using four storage systems, for balanced performance across all servers configure one quarter of the servers on each of the storage systems and equally on the controller port pairs.
-
Page 26: Parts List
SAN Configurations for RA8000/ESA12000 on Windows NT - Intel Parts List Intel Servers with Microsoft Windows NT 4.0, Service Pack 4 (minimum) Compaq Part # Description 380551-001 RA8000/ESA12000 FC Solution Software V8.5 for Windows NT/Intel 128697-B21 ACS V8.5F Controller SW... -
Page 27: Product Details
“rackable” model. The pedestal is a self-contained desk height cabinet; it is available in Digital Classic Top Gun blue and in Compaq Opal. The rackable is shipped ready to be mounted in a 19” Compaq rack or a 19”cabinet/rack using an included universal RETMA/metric mounting kit. - Page 28 UNIX is a registered trademark in the United States and other countries, licensed exclusively through X/Open Company, Ltd. Compaq, StorageWorks, HSG, Compaq Tru64 UNIX, and the Compaq Logo are trademarks of Compaq Computer Corporation. All other trademarks and registered trademarks are the property of their respective owners.
