Desa SBLP155AT Owner's Manual

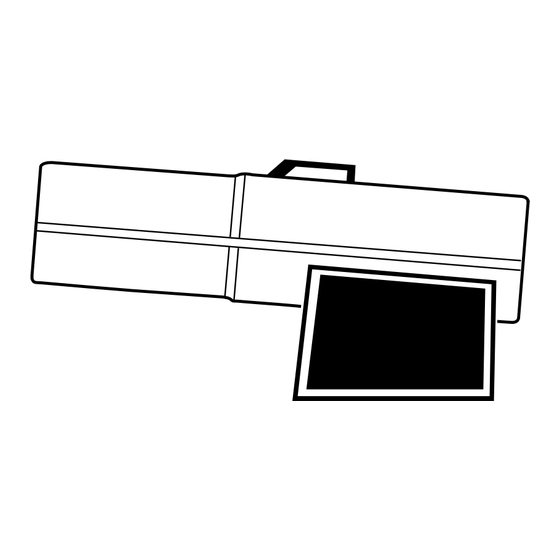

Propane construction forced air heater 150,000 btu/hr with built-in thermostat

Advertisement

Quick Links

For more information, visit www.desatech.com
For more information, visit www.desatech.com
MODELS
BLP155AT
SBLP155AT
150,000 Btu/Hr with
Built-in Thermostat
IMPORTANT: Read and understand this manual before assembling, starting or servicing
heater. Improper use of heater can cause serious injury. Keep this manual for future reference.
GENERAL HAZARD WARNING:
FAILURE TO COMPLY WITH THE PRECAUTIONS AND INSTRUCTIONS PROVIDED WITH THIS
HEATER, CAN RESULT IN DEATH, SERIOUS BODILY INJURY AND PROPERTY LOSS OR
DAMAGE FROM HAZARDS OF FIRE, EXPLOSION, BURN, ASPHYXIATION, CARBON MONOX-
IDE POISONING, AND/OR ELECTRICAL SHOCK.
ONLY PERSONS WHO CAN UNDERSTAND AND FOLLOW THE INSTRUCTIONS SHOULD USE
OR SERVICE THIS HEATER.
IF YOU NEED ASSISTANCE OR HEATER INFORMATION SUCH AS AN INSTRUCTIONS
MANUAL, LABELS, ETC. CONTACT THE MANUFACTURER.

TABLE OF CONTENTS

SAFETY INFORMATION ............................................................ 2
PRODUCT IDENTIFICATION ..................................................... 3
UNPACKING ............................................................................... 3
THEORY OF OPERATION ......................................................... 3
PROPANE SUPPLY .................................................................... 4
INSTALLATION ........................................................................... 4
VENTILATION ............................................................................. 5
OPERATION ............................................................................... 5
STORAGE ................................................................................... 5
MAINTENANCE .......................................................................... 5
Save this manual for future reference.
Save this manual for future reference.
PROPANE CONSTRUCTION
FORCED AIR HEATER
OWNER'S MANUAL
SERVICE PROCEDURES .......................................................... 6
SPECIFICATIONS ...................................................................... 7
WIRING DIAGRAMS ................................................................... 7
ACCESSORIES ........................................................................ 10
TECHNICAL SERVICE ............................................................. 10
REPLACEMENT PARTS .......................................................... 10
OWNER'S REGISTRATION ...................................................... 11
WARRANTY INFORMATION ...................................... Back Cover

Advertisement

Table of Contents
loading

Summary of Contents for Desa SBLP155AT

  • Page 1: Table Of Contents

    For more information, visit www.desatech.com For more information, visit www.desatech.com MODELS BLP155AT SBLP155AT 150,000 Btu/Hr with Built-in Thermostat IMPORTANT: Read and understand this manual before assembling, starting or servicing heater. Improper use of heater can cause serious injury. Keep this manual for future reference.
  • Page 2: Safety Information

    SAFETY INFORMATION SAFETY INFORMATION WARNINGS WARNING: This product contains and/or generates chemicals known to the State of California to cause cancer or birth defects, or other reproductive harm. WARNING: FIRE, BURN, INHALATION, AND EX- PLOSION HAZARD. KEEP SOLID COMBUSTIBLES, SUCH AS BUILDING MATERIALS, PAPER OR CARD- BOARD, A SAFE DISTANCE AWAY FROM THE HEATER AS RECOMMENDED BY THE INSTRUC- TIONS.
  • Page 3: Product Identification

    PRODUCT IDENTIFICATION Hot Air Outlet Upper Shell (Front) Lower Shell On/Off Switch Inlet Connector Hose/Regulator Assembly Figure 1 - 150,000 Btu/Hr Model Clean Heated Air Out (Front) Figure 2 - Cross Section Operational View For more information, visit www.desatech.com For more information, visit www.desatech.com 103014-01L UNPACKING 1.
  • Page 4: Propane Supply

    PROPANE SUPPLY INSTALLATION PROPANE SUPPLY Propane gas and propane tank(s) are to be furnished by the user. Use this heater only with a propane vapor withdrawal supply system. See Chapter 5 of the Standard for Storage and Handling of Liquefied Petroleum Gas, ANSI/NFPA 58. Your local library or fire department will have this booklet.
  • Page 5: Ventilation

    VENTILATION WARNING: Follow the minimum fresh, outside air ventilation requirements. If proper fresh, outside air ventilation is not provided, carbon monoxide poison- ing can occur. Provide proper fresh, outside air ven- tilation before running heater. Provide a fresh air opening of at least three square feet for each 100,000 Btu/Hr rating.
  • Page 6: Service Procedures

    SERVICE PROCEDURES SERVICE PROCEDURES WARNING: Never service heater while it is plugged in, connected to propane supply, operating, or hot. Severe burns and electrical shock can occur. UPPER SHELL REMOVAL 1. Remove screws along each side of heater using 5/16" nut-driver. These screws attach upper and lower shells together.
  • Page 7: Specifications

    SPECIFICATIONS Input Rating (Btu/Hr) ... 150,000 Fuel ... Propane Vapor Only Fuel Consumption Gallons/Hour ... 1.6 Pounds/Hour ... 7.0 Supply Pressure To Regulator Minimum (for purposes of input adjustment) ... 10 psi Maximum ... Tank Pressure Regulator Outlet Pressure (Factory Preset) ... 12.5" WC Manifold Pressure ...
  • Page 8: Illustrated Parts Breakdown And Parts List

    ILLUSTRATED PARTS BREAKDOWN Models BLP155AT and SBLP155AT ILLUSTRATED PARTS BREAKDOWN MODELS BLP155AT SBLP155AT For more information, visit www.desatech.com For more information, visit www.desatech.com Note: Screws are standard hardware items 103014-01L...
  • Page 9: Parts List

    097657-03 Built-in Thermostat 104905-01 Thermostat Knob ** Not a field replacement part. For more information, visit www.desatech.com For more information, visit www.desatech.com 103014-01L Models BLP155AT and SBLP155AT KEY PART QTY. NO. NUMBER DESCRIPTION M51104-01 Handle M11084-29 Screw, #10-16 x 3/4"...
  • Page 10: Accessories

    Regulator: LPA2100 External Capillary Thermostat: HA1210 TECHNICAL SERVICE You may have further questions about this heater. If so, contact DESA Heating Products' Technical Service Department at 1-866-672-6040. When calling, please have your model and serial numbers of your heater ready.
  • Page 11: Owner's Registration

    First Name: Address: City: Phone: ( Please answer the following questions to register your product with DESA Heating Products: 1. Who will heater be used by? Individual 2. Will you use your heater in more than one location? 3. Where will the product be used? (You may select more than one.)
  • Page 12 Postage Required 2701 Industrial Drive P.O. Box 90004 Bowling Green, KY 42102-9004 TAPE...
  • Page 13 OTHER OUTDOOR HEATING PRODUCTS PROPANE/LP FORCED AIR HEATERS PROPANE/LP CONVECTION HEATERS PORTABLE KEROSENE/DIESEL FORCED AIR HEATERS PROPANE/LP TANK TOP HEATERS PROPANE/LP AND NATURAL GAS GARAGE HEATERS PROPANE/LP PROPANE/LP AND NATURAL PATIO HEATERS GAS CHIMENEAS...
  • Page 14: Warranty And Repair Service

    Should your heater require service, return it to your nearest authorized service center. Proof of purchase must be presented with the heater. The heater will be inspected. A defect may be caused by faulty materials or workmanship. If so, DESA Heating Products will repair or replace the heater without charge.
