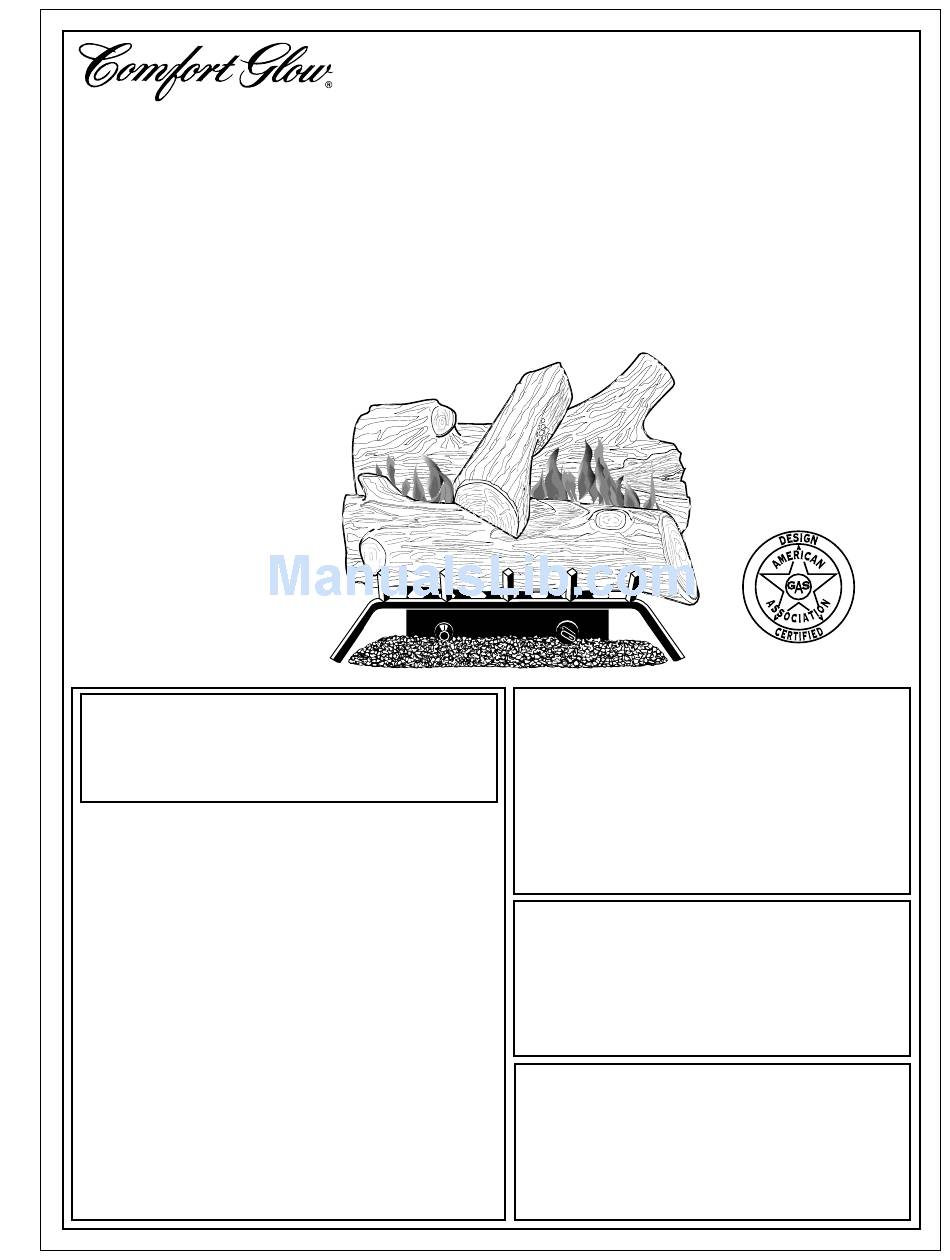

Desa Comfort Glow CGS2718P Owner's Operation And Installation Manual

Yellow flame design unvented (vent-free) propane/lp gas log heater

Advertisement

UNVENTED (VENT-FREE)
PROPANE/LP GAS LOG HEATER
(Also Designed Certified as Vented Decorative Appliance)
This appliance may be installed in an aftermarket* manufactured (mobile) home, where
not prohibited by state or local codes. This appliance is only for use with the type of gas
indicated on the rating plate. This appliance is not convertible for use with other gases.
* Aftermarket: Completion of sale, not for purpose of resale, from the manufacturer
OWNER'S OPERATION AND INSTALLATION MANUAL
18" and 24"
Variable
Manually-
Controlled
Models
CGS2718P
CGS3124P
WARNING: If the information in this
manual is not followed exactly, a fire or
explosion may result causing property
damage, personal injury, or loss of life.
— Do not store or use gasoline or other
flammable vapors and liquids in the
vicinity of this or any other appliance.
— WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance.
• Do not touch any electrical switch;
do not use any phone in your build-
ing.
• Immediately call your gas supplier
from a neighbor's phone. Follow the
gas supplier's instructions.
• If you cannot reach your gas sup-
plier, call the fire department.
— Installation and service must be per-
formed by a qualified installer, service
agency, or the gas supplier.
YELLOW FLAME DESIGN
Save this manual for future reference.
WARNING: Improper installation, adjust-
ment, alteration, service, or maintenance
can cause injury or property damage.
Refer to this manual for correct installa-
tion and operational procedures. For
assistance or additional information
consult a qualified installer, service
agency, or the gas supplier.
WARNING: This gas log set is for instal-
lation in a masonry solid fuel burning
fireplace, U.L. listed manufactured solid
fuel burning fireplace, or an AGA de-
sign cerified vent-free firebox listed for
use with these gas log heaters.
WARNING: This is an unvented gas-fired
heater. It uses air (oxygen) from the room
in which it is installed. Provisions for ad-
equate combustion and ventilation air must
be provided. Refer to Air for Combustion
and Ventilation section in this manual.
®

Advertisement

Table of Contents
loading

Summary of Contents for Desa Comfort Glow CGS2718P

  • Page 1 OWNER’S OPERATION AND INSTALLATION MANUAL 18" and 24" Variable Manually- Controlled Models CGS2718P CGS3124P WARNING: If the information in this manual is not followed exactly, a fire or explosion may result causing property damage, personal injury, or loss of life.
  • Page 2: Table Of Contents

    CONTENTS SAFETY INFORMATION SECTION Safety Information ... 2 Product Identification ... 4 Local Codes ... 4 Unpacking ... 4 Product Features ... 4 Air for Combustion and Ventilation ... 5 Installing ... 8 Check Gas Type ... 8 Installation and Clearances (Vent-Free Operation Only) ... 9 Installing Damper Clamp Accessory for Vented Operation ...
  • Page 3 SAFETY INFORMATION Continued 102989 WARNINGS WARNING ICON G 001 WARNING: Any change to this heater or its controls can be dangerous. 1. This appliance is only for use with the type of gas indicated on the rating plate. This appliance is not convertible for use with other gases. 2.
  • Page 4: Product Identification

    PRODUCT IDENTIFICATION LOCAL CODES UNPACKING PRODUCT FEATURES Crossover Log Front Log Piezo Ignitor Control Knob Figure 1 - Vent-Free Gas Log Heater Install and use heater with care. Follow all local codes. In the absence of local codes, use the latest edition of The National Fuel Gas Code ANSI Z223, also known as NFPA 54*.
  • Page 5: Air For Combustion And Ventilation

    AIR FOR COMBUSTION VENTILATION 102989 WARNING ICON This heater shall not be installed in a confined space unless provisions are provided for adequate combustion and ventilation air. Read the following instructions to insure proper fresh air for this and other fuel-burning appliances in your home. Today’s homes are built more energy efficient than ever.
  • Page 6 AIR FOR COMBUSTION VENTILATION Continued DETERMINING AIR FLOW FOR HEATER LOCATION Determining if You Have a Confined or Unconfined Space Use this work sheet to determine if you have a confined or unconfined space. Space: Includes the room in which you will install heater plus any adjoining rooms with doorless passageways or ventilation grills between the rooms.
  • Page 7 AIR FOR COMBUSTION VENTILATION Continued 102989 WARNING ICON G 001 If the area in which the heater may be operated is smaller than that defined as an unconfined space, provide adequate combustion and ventilation air by one of the methods described in the National Fuel Gas Code, ANSI Z223.1, 1992, Section 5.3 or applicable local codes.
  • Page 8: Installing

    INSTALLING A qualified service person must install heater. Follow all local codes. State or local codes may only allow operation of this appliance in a vented configuration. Check your state or local codes. Before installing in a solid fuel burning fireplace, the chimney flue and firebox must be cleaned of soot, creosote, ashes and loose paint by a qualified chimney cleaner.
  • Page 9: Installation And Clearances (Vent-Free Operation Only)

    INSTALLING Continued 102989 INSTALLATION AND CLEARANCES (Vent-Free Operation Only) Maintain the minimum clearances. If you can, provide greater clear- ances from floor, ceiling, and adjoining wall. MINIMUM FIREPLACE CLEARANCE TO COMBUSTIBLE MATERIALS Log Size Side Wall 18", 24" 16" LOG SIZING REQUIREMENTS Minimum Firebox Size Size Height...
  • Page 10 INSTALLING Continued You may use this heater as a vented product. If so, you must always run heater with chimney flue damper open. If running heater with damper open, non-combustible material above fire- place opening is not needed. Go to Installing Damper Clamp Accessory for Vented Operation, page 13.
  • Page 11 INSTALLING Continued 102989 Minimum Non Combustible Material Clearances If Using Mantel You must have non combustible material(s) above the fireplace opening. Non combustible materials (such as slate, marble, tile, etc.) must be at least 1/2 inch thick. With sheet metal, you must have non combustible material behind it. Non combustible material must extend at least 8 inches up (for all models).
  • Page 12 INSTALLING Continued 12" 10" 8" 6" " Minimum Non- Combustible Material Hood (GA6050, GA6052) Figure 7 - Minimum Mantel Clearances When Using Hood If your installation does not meet the above minimum clearances, you must: • operate the logs only with the flue damper open, OR •...
  • Page 13: Installing Damper Clamp Accessory For Vented Operation

    INSTALLING Continued 102989 INSTALLING DAMPER CLAMP ACCESSORY FOR VENTED OPERATION Note: When used as a vented heater, appliance must be installed only in a solid- fuel burning fireplace with a working flue and constructed of non combustible material. If your heater is a manually controlled model, you may use this heater as a vented product.
  • Page 14: Installing Heater Base Assembly

    INSTALLING Continued INSTALLING HEATER BASE ASSEMBLY WARNING ICON G 001 You must secure this heater to fireplace floor. If not, heater will move when you adjust controls. Moving heater may cause a gas leak. WARNING ICON G 001 If installing in a sunken fireplace, special care is needed. You must raise the fireplace floor to allow access to heater control panel.
  • Page 15: Connecting To Gas Supply

    INSTALLING Continued 102989 Figure 12 - Attaching Base Assembly to Fireplace Floor CONNECTING TO GAS SUPPLY A qualified service person must connect heater to gas supply. Follow all local codes. WARNING ICON Never connect heater directly to the propane supply. This heater requires an external regulator (not supplied).
  • Page 16 INSTALLING Continued The installer must supply an external regulator. The external regulator will reduce incoming gas pressure. You must reduce incoming gas pressure to between 11 and 14 inches of water. If you do not reduce incoming gas pressure, heater regulator damage could occur.
  • Page 17: Checking Gas Connections

    INSTALLING Continued 102989 WARNING ICON Avoid damage to regulator. Hold gas regulator with wrench when connecting it to gas piping and/or fittings. A.G.A. Design-Certified Manual Shutoff Valve With 1/8" NPT Tap* From Gas Meter (5" W.C.** to 10.5" W.C. Pressure) Tee Joint Pipe 3"...
  • Page 18 INSTALLING Continued 3. Pressurize supply piping system by either using compressed air or opening propane supply tank valve. 4. Check all joints of gas supply piping system. Apply mixture of liquid soap and water to gas joints. Bubbles forming show a leak. 5.
  • Page 19: Installing Logs

    INSTALLING Continued 102989 INSTALLING LOGS WARNING ICON G 001 Failure to position the parts in accordance with these diagrams or failure to use only parts specifically approved with this heater may result in property damage or personal injury. Each log is marked with a number. These numbers will help you identify the log when installing.
  • Page 20: Operating Heater

    OPERATING HEATER FOR YOUR SAFETY READ BEFORE LIGHTING WARNING ICON G 001 If you do not follow these instructions exactly, a fire or explosion may result causing property damage, personal injury or loss of life. A. This appliance has a pilot which must be lighted by hand. When lighting the pilot, follow these instructions exactly.
  • Page 21: To Turn Off Gas To Appliance

    OPERATING HEATER Continued 102989 5. Slightly depress and turn control knob counterclockwise position. Press in control knob for five (5) seconds (see Page 20). Note: You may be running this heater for the first time after hooking up to gas supply.
  • Page 22: Inspecting Burners

    OPERATING HEATER Continued INSPECTING BURNERS Thermocouple MANUAL LIGHTING PROCEDURE 1. Follow steps 1 through 5 under Lighting Instructions, pages 20 and 21. 2. Depress control knob and light pilot with match. 3. Keep control knob pressed in for 30 seconds after lighting pilot. After 30 seconds, release control knob.
  • Page 23: Cleaning And Maintenance

    CLEANING MAINTENANCE TROUBLE- SHOOTING Note: All trouble- shooting items are listed in order of operation. 102989 WARNING ICON G 001 Turn off heater and let cool before cleaning. WARNING ICON G 001 You must keep control areas, burner, and circulating air passage- ways of heater clean.
  • Page 24 TROUBLE- SHOOTING Continued OBSERVED POSSIBLE PROBLEM CAUSE When ignitor button 1. Gas supply turned off or is pressed, there is manual shutoff valve spark at ODS/pilot closed but no ignition 2. Control knob not in PILOT position 3. Control knob not pressed in while in PILOT position 4.
  • Page 25 TROUBLE- SHOOTING Continued 102989 OBSERVED POSSIBLE PROBLEM CAUSE Burner does light 1. Burner orifice clogged after ODS/pilot is lit 2. Inlet gas pressure is too low 3. Burner orifice diameter is too small Delayed ignition of 1. Manifold pressure is burner too low 2.
  • Page 26 TROUBLE- SHOOTING Continued If you smell gas • Shut off gas supply. • Do not try to light any appliance. • Do not touch any electrical switch; do not use any phone in your building. • Immediately call your gas supplier from a neighbor’s phone. Follow the gas supplier’s instructions.
  • Page 27: Technical Service

    TECHNICAL SERVICE SPECIFICATIONS SERVICE HINTS 102989 You may have further questions about installation, operation, or troubleshooting. If so, contact DESA International’s Technical Service Department at 1-800-DESA LOG (1-800-337-2564). 18" Model Btu (Variable) 16,000/27,000 Type Gas Propane Only Ignition Piezo Manifold Pressure 8.0"...
  • Page 28: Replacement Parts

    Usually, we will ask you to return the defective part to the factory. Parts Not Under Warranty Contact authorized dealers of this product. If they can’t supply original replace- ment part(s), call DESA International’s Parts Department at 1-800-972-7879 for referral information. When calling DESA International, have ready •...
  • Page 29: Accessories

    Purchase these fireplace accessories from your local dealer. If they can not supply these accessories, either contact your nearest Parts Central (see page 28) or call DESA International’s Sales Department at 1-800-458-2472 for information. You can also write to the address listed on the back page of this manual.
  • Page 30: Illustrated Parts List

    ILLUSTRATED PARTS BREAKDOWN CGS2718P CGS3124P 20-2 20-1 102989...
  • Page 31: Parts List

    PARTS LIST CGS2718P PART NUMBER 103729-02 103730-02 103731-02 102775-02CK 102844-01 102966-01 098867-10 102780-03 102798-01 099056-21 102843-01 102963-01 102568-08 098508-01 098354-01 102445-01 098249-01 099387-08 098271-07 099059-02 20-1 098594-01 20-2 098593-01 M11084-38 098276-01 099553-01 100563-01 101055-02 100565-01 100639-01 101449-04 101137-02 101416-21 GA6060 102989 This list contains replaceable parts used in your heater.
  • Page 32: Warranty Information

    COMFORT GLOW VENT-FREE PROPANE GAS LOG HEATERS DESA International warrants this product to be free from defects in materials and components for two (2) years from the date of first purchase, provided that the product has been properly installed, operated and maintained in accordance with all applicable instructions.
