GE JAP02SNSS - 24 Inch - Electric Range Dimensions And Installation Information

JAP02SN
GE 24" Self Clean Free-Standing Electric Range
®

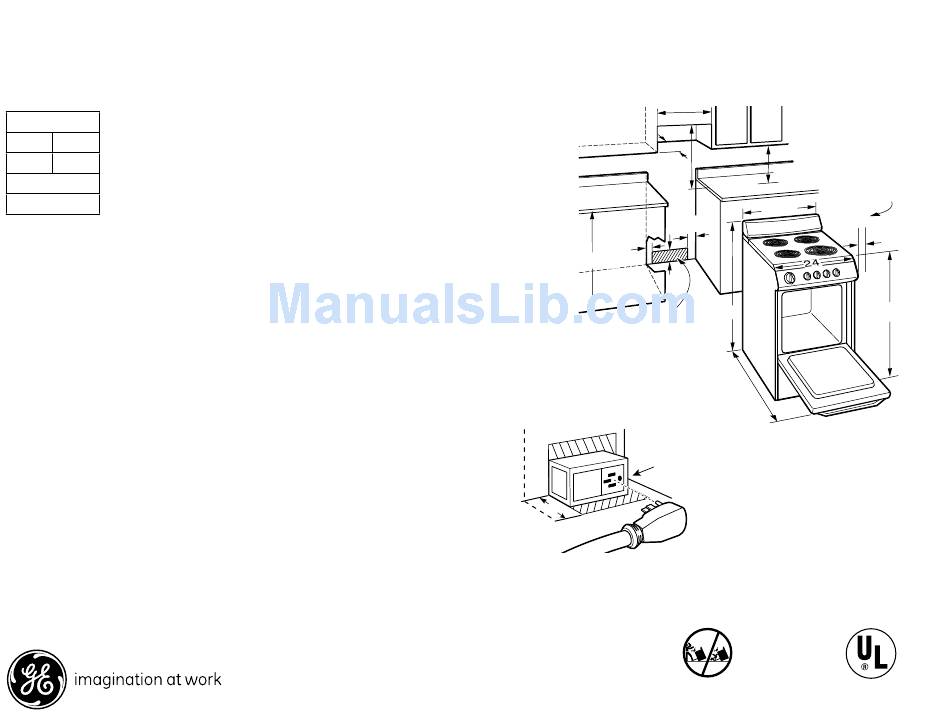

Dimensions and Installation Information (in inches)
KW Rating
240V
9.8
208V 7.4
Breaker Size
40 Amps
†
Note: Check local codes for required breaker size.
†
Effective January 1, 1996, the National Electrical Code requires
that new construction (not existing) utilize a 4-conductor
connection to an electric range.
Receptacle Locations: Locally approved flexible service cord
or conduit must be used because terminals are not accessible
after range installation. See shaded area in drawing for location
of electrical outlet box. Recommended outlet locations allow
range to be installed directly against wall.
One Year Warranty: Entire Appliance: Parts and Labor; In-Home
Installation Information: Before installing, consult installation
instructions packed with product for current dimensional data.
For answers to your Monogram, GE Profile
®
GE ® appliance questions, visit our website at
geappliances.com or call GE Answer Center
800.626.2000.
or
™
service,
®
24-3/8
13
30 MIN
MAX
2-1/2
5
2
36 MAX
Surface
mount
outlet
(Depth with
Wall Mounted
Wall
Outlet box
2-1/4"
Floor
Cord
Recommended acceptable electrical
outlet area. Orient the electrical
receptacle so the length is parallel
to the floor.
From combustible
15 MIN
walls above
cooking surface
24-1/3
2
A
41
door open)
A= 44-2/3 for model JAS02SNSS
and 47 for model JAP02SNSS.
All GE ranges are equipped with
an Anti-Tip device. The installation
of this device is an important,
required step in the installation
of the range.
Specification Revised 7/10
