For Use With:
Fireboxes: (NL)FB32C, (NL)FB36C, FB42C, (NL)UV32C, CGFB32C, and CGFB36C Series
Vent-Free Fireplaces: VSGF28, VYGF33, VTGF33, VCGF30, VSGF33, FPV33, CGFP28, LFP33 Series,
and (CG)EFP33 Series
Direct-Vent Fireplaces: (E)BDV, BHDV, DVF(E)34, DVFH34, CDV, and CHDV Series
Stoves: CSDBN, SDVB, MSDVB MSTD, CDV, S39T, and S26T Series
WARNING: ELECTRICAL GROUNDING INSTRUCTIONS This appliance is equipped with a three-prong
(grounding) plug for your protection against shock hazard and should be plugged directly into a properly
grounded three-prong receptacle.
(Check your appliance owner's manual for specific applications and additional instructions.)
Parts included with this kit:
Part No.
Description
Blower with speed control and 6-foot cord.
Instruction Sheet
103650-01
Control Knob
103651-01
Lock Nut
M11084-38
#8 x 3/8" sheet metal screws
101629-01
Plastic Hole Bushings
101584-05
Wiring Diagram Decal
Tools Required
•
Pliers
•
Phillips Screwdriver
If any of these pieces are missing or damaged, or if the installation instructions for your fireplace or stove are not included in this manual,
contact the dealer where you purchased this kit or DESA at 1-866-672-6040 for referral information.
INSTALLATION INSTRUCTIONS

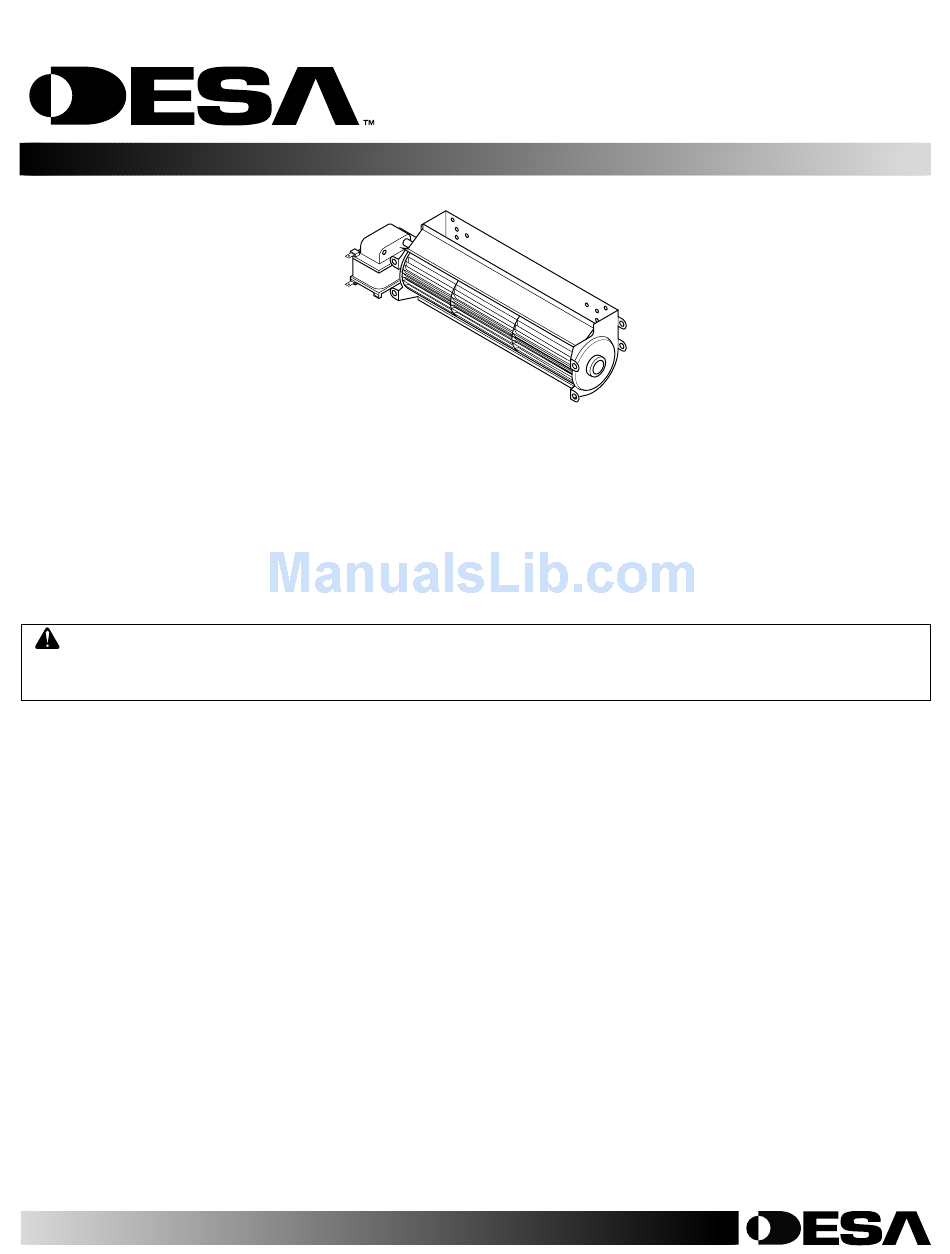

GA3750A BLOWER ACCESSORY
Save this manual for future reference.
Save this manual for future reference.
Quantity
1
1
1
1
5
2
1
