Before you begin, make sure all parts shown are included with your product.

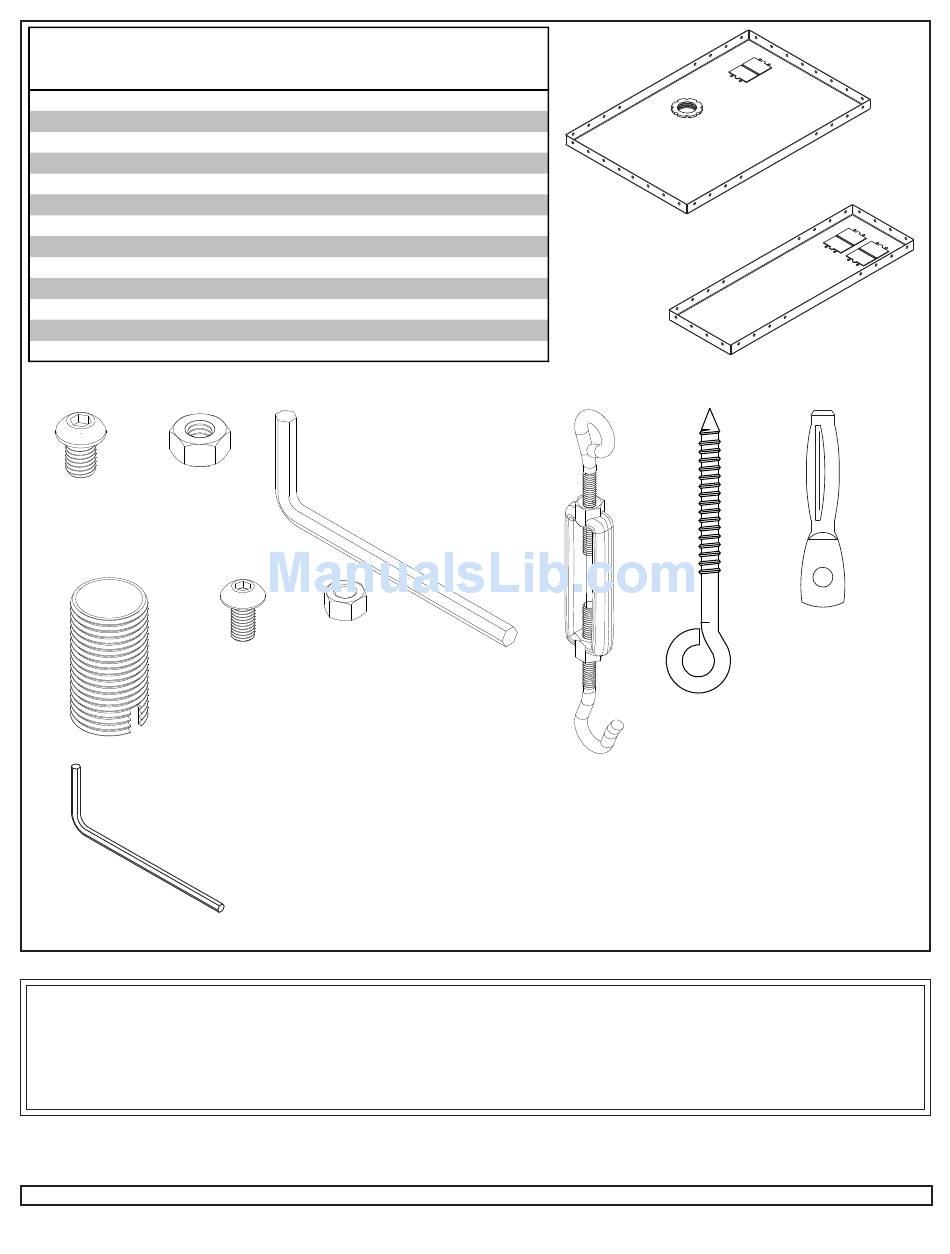

Parts List
Description
A ceiling tray
A1 filler tray
B 1/4"-20 x 3/8" screws
C 1/4"-20 nuts
D allen wrench
F turnbuckle
G 12 gauge x 20' (6.1m) tie wire (not shown)
K eye bolt
L concrete anchor
M flush mount tube
AA M5 x 10 mm socket screw
BB nut
CC 3 mm allen wrench
NOTE: Some parts may appear slightly different than illustrated.
B
C
M
AA
CC
IMPORTANT PRE-ASSEMBLY INFORMATION: Ceiling Trays (A), and (A1) are designed to fit within or above a
24" (610 mm) x 24" (610 mm) section of a conventional suspended ceiling system. It may also be mounted within or
above 24" x 48" conventional suspended ceiling. Ceiling runners (see DETAIL 1, page 5) should have a "T" cross
section and a minimum height of 1.5" (38 mm).
For certain installations it may be best to install ceiling anchors (step 2) before installing the ceiling tray (step 1).
Visit the Peerless Web Site at www.peerlessmounts.com
Qty. Part #
1
1
4
4
1
4
1
5
5
1
4
4
1
D
BB
For Technical Support Contact Peerless Mounts at 1-800-729-0307 or 708-865-8870.
128-2198
128-2207
520-2015
530-9302
560-9706
560-9620
600-2008
580-0006
580-0005
1446-014
520-1216
530-9409
560-0194
F
3 of 6
A
A1
K
L
ISSUED: 02-13-08 SHEET #:128-9030-2 07-16-08
