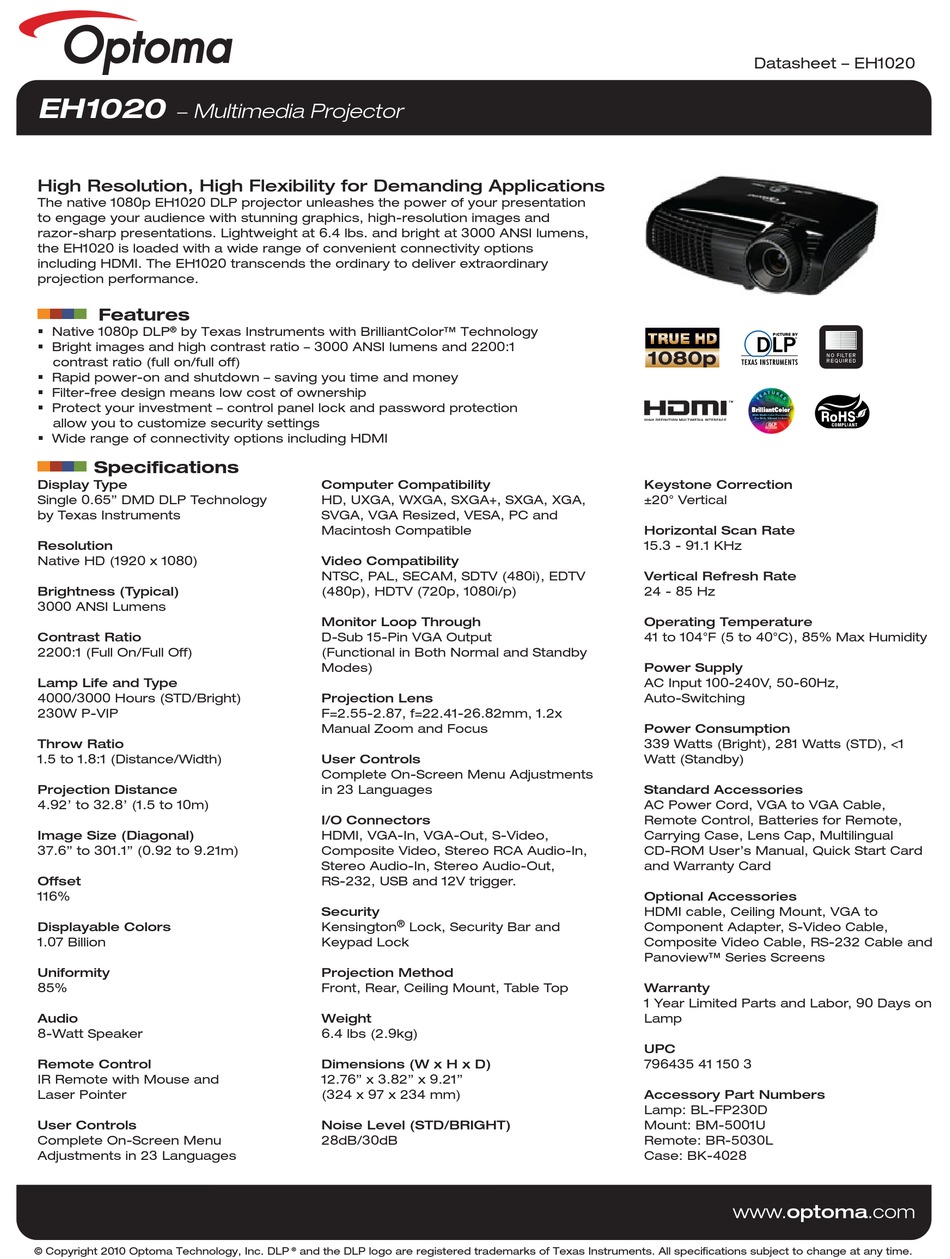

EH1020
− Multimedia Projector
High Resolution, High Flexibility for Demanding Applications
The native 1080p EH1020 DLP projector unleashes the power of your presentation
to engage your audience with stunning graphics, high-resolution images and
razor-sharp presentations. Lightweight at 6.4 lbs. and bright at 3000 ANSI lumens,
the EH1020 is loaded with a wide range of convenient connectivity options
including HDMI. The EH1020 transcends the ordinary to deliver extraordinary
projection performance.
Features
Native 1080p DLP
by Texas Instruments with BrilliantColor™ Technology
®
Bright images and high contrast ratio – 3000 ANSI lumens and 2200:1
contrast ratio (full on/full off)
Rapid power-on and shutdown – saving you time and money
Filter-free design means low cost of ownership
Protect your investment – control panel lock and password protection
allow you to customize security settings
Wide range of connectivity options including HDMI
Specifications
Display Type
Single 0.65" DMD DLP Technology
by Texas Instruments
Resolution
Native HD (1920 x 1080)
Brightness (Typical)
3000 ANSI Lumens
Contrast Ratio
2200:1 (Full On/Full Off)
Lamp Life and Type
4000/3000 Hours (STD/Bright)
230W P-VIP
Throw Ratio
1.5 to 1.8:1 (Distance/Width)
Projection Distance
4.92' to 32.8' (1.5 to 10m)
Image Size (Diagonal)
37.6" to 301.1" (0.92 to 9.21m)
Offset
116%
Displayable Colors
1.07 Billion
Uniformity
85%
Audio
8-Watt Speaker
Remote Control
IR Remote with Mouse and
Laser Pointer
User Controls
Complete On-Screen Menu
Adjustments in 23 Languages
© Copyright 2010 Optoma Technology, Inc. DLP
Computer Compatibility
HD, UXGA, WXGA, SXGA+, SXGA, XGA,
SVGA, VGA Resized, VESA, PC and
Macintosh Compatible
Video Compatibility
NTSC, PAL, SECAM, SDTV (480i), EDTV
(480p), HDTV (720p, 1080i/p)
Monitor Loop Through
D-Sub 15-Pin VGA Output
(Functional in Both Normal and Standby
Modes)
Projection Lens
F=2.55-2.87, f=22.41-26.82mm, 1.2x
Manual Zoom and Focus
User Controls
Complete On-Screen Menu Adjustments
in 23 Languages
I/O Connectors
HDMI, VGA-In, VGA-Out, S-Video,
Composite Video, Stereo RCA Audio-In,
Stereo Audio-In, Stereo Audio-Out,
RS-232, USB and 12V trigger.
Security
®
Kensington
Lock, Security Bar and
Keypad Lock
Projection Method
Front, Rear, Ceiling Mount, Table Top
Weight
6.4 lbs (2.9kg)
Dimensions (W x H x D)
12.76" x 3.82" x 9.21"
(324 x 97 x 234 mm)
Noise Level (STD/BRIGHT)
28dB/30dB
and the DLP logo are registered trademarks of Texas Instruments. All specifications subject to change at any time.
®
Datasheet – EH1020
Keystone Correction
±20° Vertical
Horizontal Scan Rate
15.3 - 91.1 KHz
Vertical Refresh Rate
24 - 85 Hz
Operating Temperature
41 to 104°F (5 to 40°C), 85% Max Humidity
Power Supply
AC Input 100-240V, 50-60Hz,
Auto-Switching
Power Consumption
339 Watts (Bright), 281 Watts (STD), <1
Watt (Standby)
Standard Accessories
AC Power Cord, VGA to VGA Cable,
Remote Control, Batteries for Remote,
Carrying Case, Lens Cap, Multilingual
CD-ROM User's Manual, Quick Start Card
and Warranty Card
Optional Accessories
HDMI cable, Ceiling Mount, VGA to
Component Adapter, S-Video Cable,
Composite Video Cable, RS-232 Cable and
Panoview™ Series Screens
Warranty
1 Year Limited Parts and Labor, 90 Days on
Lamp
UPC
796435 41 150 3
Accessory Part Numbers
Lamp: BL-FP230D
Mount: BM-5001U
Remote: BR-5030L
Case: BK-4028
www.optoma.com
NO FILTER
REQUIRED
