3Com 005689-03 Installation Manual

READ
ME
FIRST!

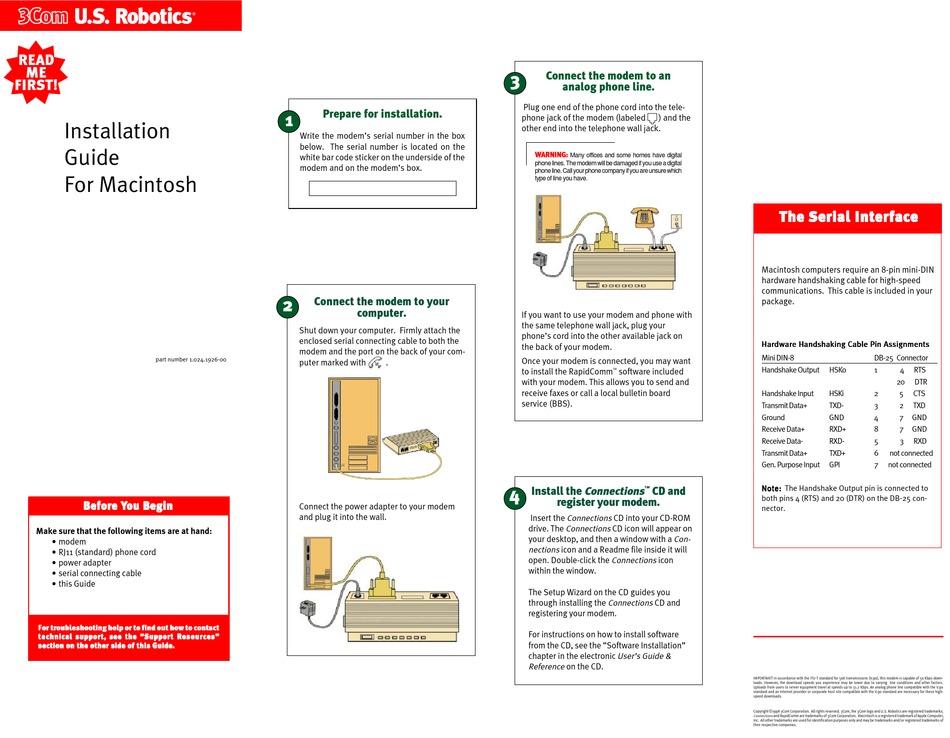

Installation
Guide

For Macintosh

part number 1.024.1926-00
Before Y Befor Befor Befor Befor e Y e Y e You Begin e Y ou Begin ou Begin ou Begin ou Begin
Make sure that the following items are at hand:
• modem
• RJ11 (standard) phone cord
• power adapter
• serial connecting cable
• this Guide
F F F F F or tr or tr or tr or tr or trouble oubleshooting help or to find out how to cont ouble ouble ouble shooting help or to find out how to cont shooting help or to find out how to contact shooting help or to find out how to cont shooting help or to find out how to cont
t t t t t e e e e e chnical suppor chnical support, see the "Suppor chnical suppor chnical suppor chnical suppor t, see the "Support Re t, see the "Suppor t, see the "Suppor t, see the "Suppor t Re t Re t Re t Res s s s s ource ources" ource ource ource
se se se section on the other side of this Guide. se ction on the other side of this Guide. ction on the other side of this Guide. ction on the other side of this Guide. ction on the other side of this Guide.
Prepare for installation.
1
Write the modem's serial number in the box
below. The serial number is located on the
white bar code sticker on the underside of the
modem and on the modem's box.
2 Connect the modem to your
computer.
Shut down your computer. Firmly attach the
enclosed serial connecting cable to both the
modem and the port on the back of your com-
puter marked with .
Connect the power adapter to your modem
and plug it into the wall.
act act act act
s" s" s" s"
Connect the modem to an
3
analog phone line.
Plug one end of the phone cord into the tele-
phone jack of the modem (labeled ) and the
other end into the telephone wall jack.
WARNING:
Many offices and some homes have digital
phone lines. The modem will be damaged if you use a digital
phone line. Call your phone company if you are unsure which
type of line you have.
If you want to use your modem and phone with
the same telephone wall jack, plug your
phone's cord into the other available jack on
the back of your modem.
Once your modem is connected, you may want
TM
to install the RapidComm software included
with your modem. This allows you to send and
receive faxes or call a local bulletin board
service (BBS).
TM
Install the Connections CD and
4
register your modem.
Insert the Connections CD into your CD-ROM
drive. The Connections CD icon will appear on
your desktop, and then a window with a Con-
nections icon and a Readme file inside it will
open. Double-click the Connections icon
within the window.
The Setup Wizard on the CD guides you
through installing the Connections CD and
registering your modem.
For instructions on how to install software
from the CD, see the "Software Installation"
chapter in the electronic User's Guide &
Reference on the CD.
The Serial Int The Serial Int The Serial Int The Serial Interface The Serial Int erface erface erface erface
Macintosh computers require an 8-pin mini-DIN
hardware handshaking cable for high-speed
communications. This cable is included in your
package.
Har Har Har Har Hardwar dwar dware Handshaking Cable Pin Assignments dwar dwar e Handshaking Cable Pin Assignments e Handshaking Cable Pin Assignments e Handshaking Cable Pin Assignments e Handshaking Cable Pin Assignments
Mini DIN-8 DB-25 Connector
Handshake Output HSKo 1 4 RTS
20 DTR
Handshake Input HSKi 2 5 CTS
Transmit Data+ TXD- 3 2 TXD
Ground GND 4 7 GND
Receive Data+ RXD+ 8 7 GND
Receive Data- RXD- 5 3 RXD
Transmit Data+ TXD+ 6 not connected
Gen. Purpose Input GPI 7 not connected
Note: Note: Note: Note: Note: The Handshake Output pin is connected to
both pins 4 (RTS) and 20 (DTR) on the DB-25 con-
nector.
IMPORTANT! In accordance with the ITU-T standard for 56K transmissions (V.90), this modem is capable of 56 Kbps down-
loads. However, the download speeds you experience may be lower due to varying line conditions and other factors.
Uploads from users to server equipment travel at speeds up to 31.2 Kbps. An analog phone line compatible with the V.90
standard and an Internet provider or corporate host site compatible with the V.90 standard are necessary for these high-
speed downloads.
Copyright ©1998 3Com Corporation. All rights reserved. 3Com, the 3Com logo and U.S. Robotics are registered trademarks;
Connections and RapidComm are trademarks of 3Com Corporation. Macintosh is a registered trademark of Apple Computer,
Inc. All other trademarks are used for identification purposes only and may be trademarks and/or registered trademarks of
their respective companies.
