Compaq 207590-B21 - Power Distribution Unit Strip Quick Install Manual

0U / 1U
I
NSTALLATION
Quick Installation Guide for
Rack-Mounted 0U / 1U Devices
Open Guide Completely Before
Beginning Installation Procedures
Printed on recycled paper
NOTICE
The information in this publication is subject to change without notice.
COMPAQ COMPUTER CORPORATION SHALL NOT BE LIABLE FOR
TECHNICAL OR EDITORIAL ERRORS OR OMISSIONS CONTAINED HEREIN,
NOR FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES RESULTING FROM
THE FURNISHING, PERFORMANCE, OR USE OF THIS MATERIAL. THIS
INFORMATION IS PROVIDED "AS IS" AND COMPAQ COMPUTER
CORPORATION DISCLAIMS ANY WARRANTIES, EXPRESS, IMPLIED OR
STATUTORY AND EXPRESSLY DISCLAIMS THE IMPLIED WARRANTIES OF
MERCHANTABILITY, FITNESS FOR PARTICULAR PURPOSE, GOOD TITLE
AND AGAINST INFRINGEMENT.
This publication contains information protected by copyright. No part of
this publication may be photocopied or reproduced in any form without
prior written consent from Compaq Computer Corporation.
©
2000 Compaq Computer Corporation
Compaq, Registered U.S. Patent and Trademark Office.
COMPAQ 0U / 1U INSTALLATION KIT
QUICK INSTALLATION GUIDE FOR RACK-MOUNTED 0U / 1U DEVICES
Second Edition (November 2000)
Part Number 216252-022
Compaq Computer Corporation
K
IT
Kit Contents
! Assembly, 0U mounting hardware
" Mounting brackets - 0U (2)
" Screws 3 mounting unit (0U) to rack (6) [2 extra]
! Assembly, 1U mounting hardware
" Mounting brackets - 1U (2)
" Rail assembly for rack-mounting (assembly required) - 1U
- Rail, front 1U (2)
- Rail, rear 1U (2)
- Nut, wing (4)
- Nut, metric hex (4) [recommended when shipping in a rack]
- Cage nuts - (4) [2 extra]
" Screws 1 mounting brackets to unit (6) [2 extra]
" Screws 2 mounting rails to rack (10) [2 extra]
! 1U installation rack template tool

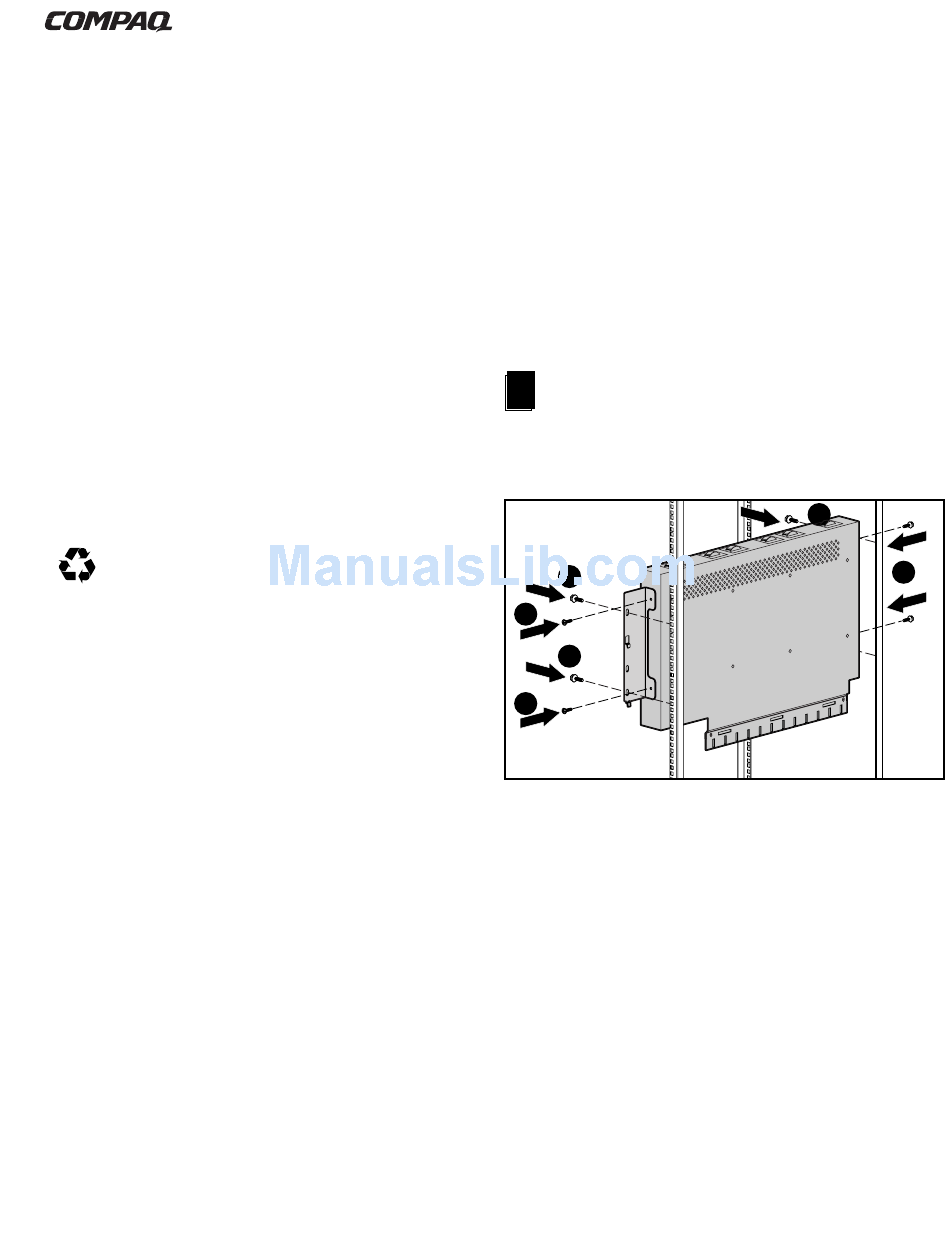

Installing the Unit - 0U Configuration
1
Align bracket with screw holes in unit. Use screws 1 to attach brackets to the
sides of unit. Secure the unit to the side of rack by using screws 3 (two on each
side) to attach unit.
3
1
3
1
3
1
