Denon ACD-HD Owner's Manual

ACD-HD
e
CAUTION:
• Because of risk of accidental ingestion, please keep small
components such as screws out of reach of children.
• Never disassemble or modify the unit in any way.
• T he ACD-HD is an option board exclusively for the TU-604CI.
• T his option board can be used as an HD Radio when inserted in
one of the option slots on the main unit's rear panel.
• T he option board can be inserted into any of the option slots (3
to 6) on the rear panel.
• R ead the main unit's manual carefully before assembling.
• F or operating instructions, see the TU-604CI's owner's manual.
NOTE
Always be sure to turn off the power and unplug the power cord
before mounting or removing option boards. Doing so with the power
turned on could cause damage.
Accessories
Check that the following parts are supplied with the product.
q Owner's manual ...................................................................... 1
w Warranty (for North America model only) ................................ 1
e Service station list ................................................................... 1
r Audio cable .............................................................................. 1
t AM loop antenna (Large) ......................................................... 1
y FM indoor antenna .................................................................. 1
u Hand screw ............................................................................. 2
r t y
[Option Board]

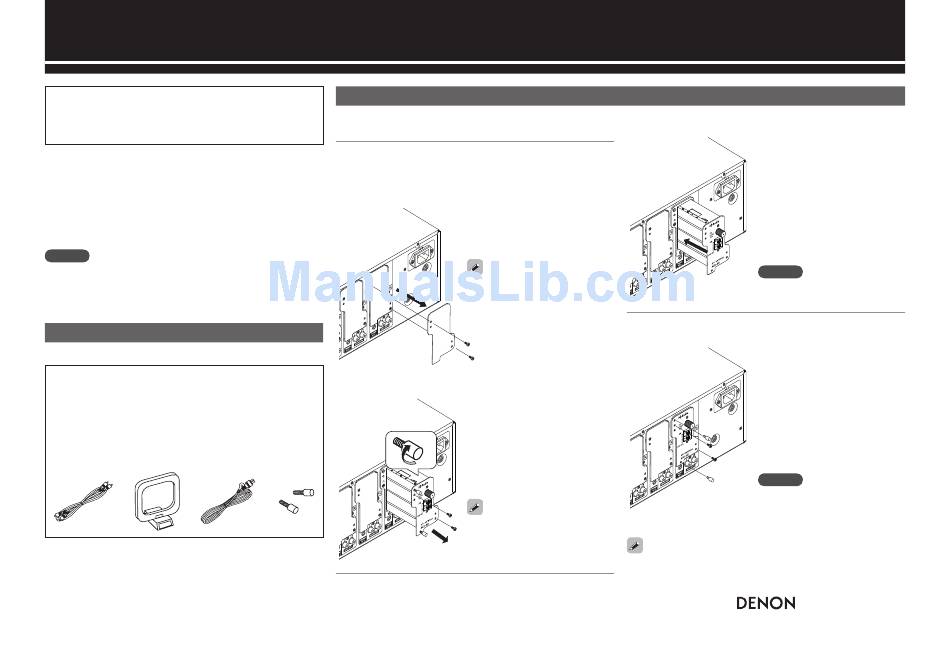

Installing
1
Unplug the power cord.
2
Make the preparations for mounting the option
board.
n When mounting an option board for the first time
Remove the two screws fixing the
cover, then remove the cover.
• Reuse the two fixing screws to
• Be sure to keep the removed
n When replacing option boards
q R emove the two screws fixing
w S crew in the two hand screws
u
e Remove the two hand screws.
Reuse the two fixing screws to
fasten the option board.
3
Insert the option board.
fasten the option board.
cover for future use.
4
Use the two fixing screws to fasten the option board to
the main unit.
the option board.
about 5 mm, then pull out the
option board.
When replacing an option board, we recommend mounting the two
hand screws removed in step 2 to the option board to store them.
(See the diagram above.)
Owner's manual
NOTE
Push the option board all the way
in.
NOTE
Not fixing the option board with
the two screws could lead to poor
contact or other problems.
