NETGEAR FWG114Pv1 - Wireless Firewall With USB Print Server Specifications

• Help is there when you need it!
NETGEAR provides, 24x7
technical support* in English,
with selected local language
support during office hours.
Ultra Equipped
Safeguarded
Helpful
Everybody's connecting.
™

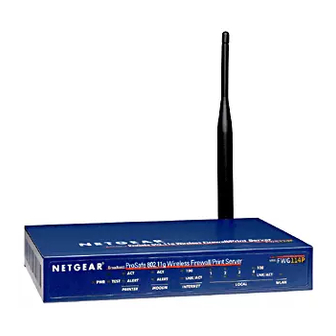

FWG114P
ProSafe™ 802.11g Wireless VPN Firewall
4-port 10/100 Switch with USB Server
Combination Router, Switch, Print Server, Wireless Access Point,
and Firewall Connects to the Internet with Cable, DSL, ISDN or
Analog Modem
One powerful device, NETGEAR's ProSafe 802.11g Wireless Firewall with USB Print Server
consolidates multiple connection features and gives users the ability to share secure wired
and wireless network connections. Designed to connect multiple PCs without running
additional wires, it allows up to 253 users on the LAN – including up to 64 wireless users –
to share one broadband Internet connection. Higher wireless speeds allow for distribution of
large files and enables high performance videoconferencing. The built-in print server enables
multiple users to use a single printer. Full-scale business-class security that includes Wi-Fi
Protected Access, up to two simultaneous VPN tunnels and Stateful Packet Inspection Firewall
ensures that the network, network users, and data communications are thoroughly protected.
Fully compliant with IEEE 802.11g and backward compatible to any existing IEEE 802.11b
network equipment. Web browser-based settings and on-screen help make setup a breeze.
Fail safe features provide back-up connection to the Internet. Wall-mountable to save space.
Built in to this firewall router is a 4-port 10/100 switch, an IEEE 802.11g wireless 2.4 GHz 54 Mbps access
point, and an easy connection USB print server port that supports multiple print jobs simultaneously. An
RS-232 serial port provides for either an ISDN/analog modem fail-over backup or dial-up connections, and a
100 Mbps WAN port allows for future high-speed broadband services. Seventeen LEDs display status at a
glance. Supports single remote access server (RAS) client via the serial port.
Wi-Fi Protected Access (WPA) shields wireless communications with the highest available level of
industry-standard encryption, blocking unwanted users from accessing the network without the proper
permission and password. True firewall using Stateful Packet Inspection (SPI), Network Address Translation
(NAT) and Intrusion Control capabilities provides defense against Denial of Service (DoS) hacker attacks,
while 40/64 and 128 -bit WEP encryption protects the network from wireless eavesdroppers. Virtual Private
Network (VPN) enables secure access to your office or corporate network. Web page URL content filtering
provides administrative control over access to inappropriate web sites. Provides logging and reporting alerts of
Internet activity.
Smart Wizard automatically detects the ISP connection type, and automatically adjusts your configuration.
Extensive functions include MAC Address cloning/spoofing, Import/Export router settings, Exposed Host
(DMZ) support for unrestricted communication between the Internet and a specified device, advanced settings
for additional control by experienced users, and secure remote management capability.
FWG114P ProSafe 802.11g
Broadband
Wireless Firewall/PrintServer
modem
Internet
ISDN or Analog
modem
Printer
Desktop PC with
WG311 54 Mbps
Wireless PCI Adapter
Desktop PC with
Desktop PC with
WG121 54 Mbps
FA311 Ethernet Card
Wireless USB 2.0 Adapter
Notebook PCs with
WG511 54 Mbps
Wireless PC Card
Notebook PC with
WAG511 802.11a/b/g
Dual Band Wireless PC Card
Notebook PC with
MA521 802.11b
Wireless PC Card
