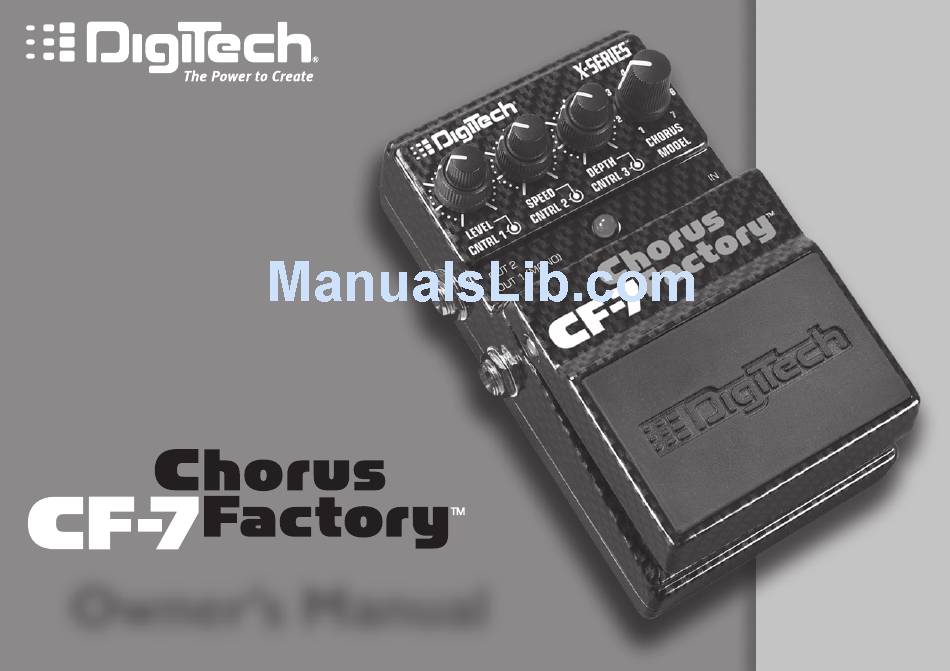

- Page 1 Owner’s Manual...
- Page 2 10. No user serviceable parts inside. Refer all servicing to qualified service personnel. Servicing is required European Contact: Your local DigiTech Sales and Service Office or when the apparatus has been damaged in any way, Harman Music Group such as power-supply cord or plug is damaged,...
- Page 3 DigiTech or Harman International Industries, Inc. They are trademarks of other manufacturers and were used merely to identify products whose sounds...
- Page 4 Chorus Factory Pedal includes the following items: ® • DigiTech Chorus Factory Pedal ® • This Owner’s Manual • DigiTech Warranty Card • DigiTech Brochure Please make sure that all of these items have been included before you get started.
- Page 5 Battery Replacement Directions 1. Using the tip of a 1/4" guitar cable, push one of the release pins in on either side of the pedal, and remove the pedal from the pedal chassis. 2. Remove the battery from the battery compartment and disconnect the bat- tery cable.
- Page 6 4. CNTRL 2 (Ring) Model dependent. Refer to the Cho- rus Model Control Table on page 14 for more information. 5. POWER SUPPLY JACK Connect only the DigiTech PS200R ® (9V DC) power supply to this jack. 6. CNTRL 3 (Ring) Model dependent.
- Page 7 Selects one of the following seven 9. INPUT Chorus Models: Connect your instrument to this jack. Connecting a guitar cable to MODEL 1: DigiTech Multi Chorus ® ® this jack supplies battery power even MODEL 2: Based on the Voodoo...
- Page 8 11. PEDAL 14. OUT 2 Press the pedal to turn the effect Connect this output to a second on and off. amplifier for true stereo chorusing. Stereo is the best way to get the 12. OUT 1 (MONO) most effective chorusing experience Connect this output to a single from the Chorus Factory pedal.
- Page 9 MODEL DESCRIPTIONS MODEL 1. DigiTech Multi Chorus ® ® This setting models DigiTech ’s Multi Chorus pedal. The first multi-voice (16 ® ® voices) chorus pedal ever! LEVEL – Controls the effect output level. Turn clockwise for more effect, or counter-clockwise for less effect.
- Page 10 Model 2. Voodoo Lab Analog Chorus The Voodoo Lab Analog Chorus pedal has a distinctively organic tone that faithfully clones the 1976 Boss CE-1. ® LEVEL – Controls the effect output level. Turn clockwise for more effect, or counter-clockwise for less effect. CNTRL 1 (EQ) –...
- Page 11 Model 3. TC Electronic Stereo Chorus Flanger ® The classic TC Electronic Stereo Chorus Flanger is the choice of many pros ® and still remains known as a state-of-the-art unit with incredible dynamic range. LEVEL (Intensity) – Controls the effect output level. Turn clockwise for more effect, or counter-clockwise for less effect.
- Page 12 Model 4. Fulltone Choralflange ® This setting models the Fulltone Choralflange , known as the ultimate analog ® modulation pedal: versatile, transparent, and flexible. LEVEL (Mix) – Controls the balance of processed and dry signal. Turn clockwise for more processed signal, or counter-clockwise for more dry signal.
- Page 13 Model 5. Boss CH-1 Super Chorus ® The Boss CH-1 Super Chorus pedal is popular for its offering of frequency ® ™ range with a versatile tonal control. LEVEL – Controls the effect output level. Turn clockwise for more effect, or counter-clockwise for less effect.
- Page 14 Model 6. Electro Harmonix Small Clone ® ® This setting recreates the chorus effect of Electro Harmonix Small Clone ® ® Its lush grunge tone still remains a favorite of pros for its multi dimensional personality. LEVEL – Controls the effect output level. Turn clockwise for more effect, or counter-clockwise for less effect.
- Page 15 Model 7. Boss CE-5 Chorus Ensemble ® The CF-7 models the Boss CE-5 Chorus Ensemble with its versatile cover- ® ™ age of frequency range and high/low cut filters. LEVEL – Controls the effect output level. Turn clockwise for more effect, or counter-clockwise for less effect.
- Page 16 Chorus Model Control Table MODEL 3: MODEL 1: MODEL 2: ® TC Electronic ® DigiTech Voodoo Lab Stereo Chorus ® Multi Chorus Analog Chorus Flanger LEVEL Level Level* Intensity CNTRL 1 SPEED Speed Speed Speed CNTRL 2 Pre Delay* Pre Delay*...
- Page 17 MODEL 6: MODEL 7: MODEL 4: MODEL 5: ® Electro Boss CE-5 ® ® Fulltone Boss CH-1 ® Harmonix Chorus Choralflange Super Chorus ® Small Clone Ensemble Level Level* Level Chorus/Flange High EQ Hi Filter Rate Rate Rate Rate Delay Pre Delay* Pre Delay* Pre Delay*...
- Page 18 Flexible Output Mode The CF-7 has two Flexible Output Modes Mono/Stereo Amp - A mono signal (OUT 1 only) sent to one guitar amp, or a stereo signal (OUT 1 and OUT 2) sent to two amplifiers. Mono/Stereo Mixer - A mono signal (OUT 1 only) sent to a single mixer channel, or a stereo signal (OUT 1 and OUT 2) sent to two chan- nels of a mixer.
- Page 19 Cabinet Modeling (CIT The CF-7 has built-in CIT™ cabinet modeling that can be enabled. This is a useful tool when running a distortion pedal into the CF-7 and then running direct into a mixer or recorder. This creates a guitar-through-an- amplifier sound without having to use a guitar amp.
- Page 20 In no event shall DigiTech or its dealers be liable for special or consequential damages or from any delay in the performance of this warranty due to causes beyond their control.
- Page 21 • Input Impedance - 1 MOhms • Output Impedance - 100 Ohms • Power Supply - (Optional) DigiTech PS200R or 9V Alkaline Dry Battery • Power Consumption - 4.8 Watts (w/optional PS200R power supply) • Battery Life - Approximately 4 hours (with continuous usage) •...
- Page 24 DigiTech or Harman International Industries, Inc. They are trademarks of other manufacturers and were used merely to identify products whose sounds were reviewed in the creation of this product.
