Crest Audio CC-IPB Datasheet

INPUT PROCESSING MODULE
FOR CKS, CKV, CKX SERIES
POWER PROCESSING AMPLIFIERS
CC-IPB
Basic Input
Product Information
The CC-IPB Module fits in the Input Processing bay located on the rear
panel of Crest Audio CKS, CKV & CKX Series Power Processing
amplifiers. It is fitted standard to all models. CC-IPB provides balanced
inputs to the two amplifier channels.
Features
• Balanced input on barrier strip connector with .325" (8.3mm) screw center, .270" (6.9mm) lug space
• Removable gain pot knobs for security
• Input isolation transformers optional
Internal Features
• Jumper-selectable gain of X20 (26 dB), X40 (32 dB, factory setting), or constant sensitivity for full output at 0dBu (.775V) in.

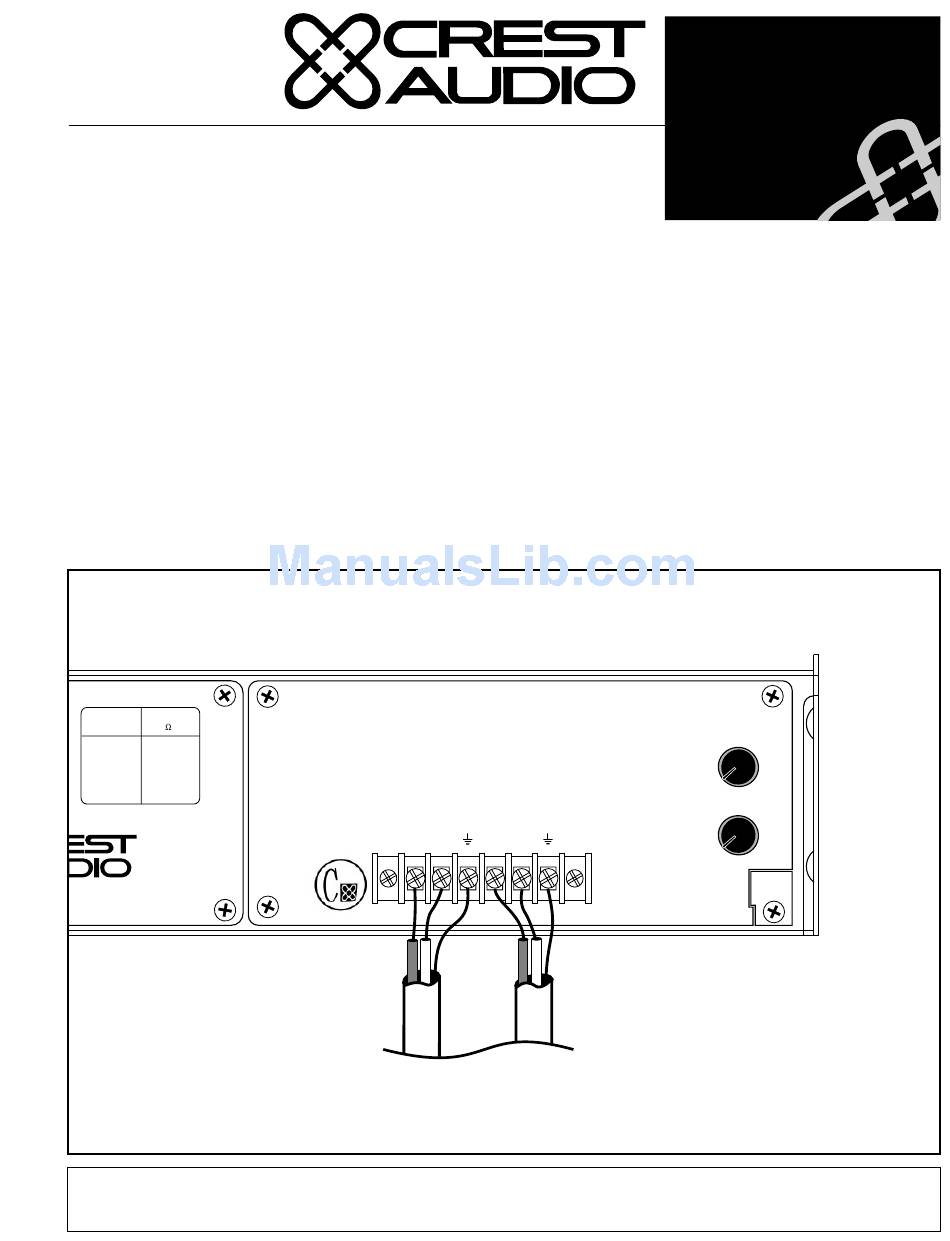

C C - I P B c o n n e c t i o n s
Model Output Power
Name @8 /Ch.
CKS 100 50W
CKS 200 100W
CKS 400 200W
CKS 800 400W
CKS 800-2 400W
CKS 1200-2 600W
CKS 1600-2 800W
d in the USA by:
Model
CC-BLK
nc.
er Dr.
07652 USA
Architects and Engineers Specifications - CC-IPB
The module shall plug into Crest CKS or CKV Power Processing amplifiers in the Input
Processing bay. Barrier strip input connections shall be provided which feed two
electronically balanced inputs.
An internal three-position jumper selects between gains of X20 (26 dB),
X40 (32 dB), or constant sensitivity for full output at 0dBu (.775V) in.
The standard factory setting is for X40 (32dB). Individual channel atten-
uators are provided with removable knobs for extra security.
CC-IPB is not programmable or NexSys
Input A Input B
+ +
– –
Input Input
Signal A Signal B
Two removable-knob gain pots shall be provided that control the level of each input. An
internal input sensitivity/voltage gain jumper shall be provided with selections of 0dBu, X20
and X40. The module shall be designated the Crest Audio model CC-IPB.
Power
Processing
Modules
® controllable.
5
Level
4
6
A
3
7
2
8
1
9
0
10
Level 5
4
6
B
3
7
2
8
1
9
0
10
Model
CC-IPB
