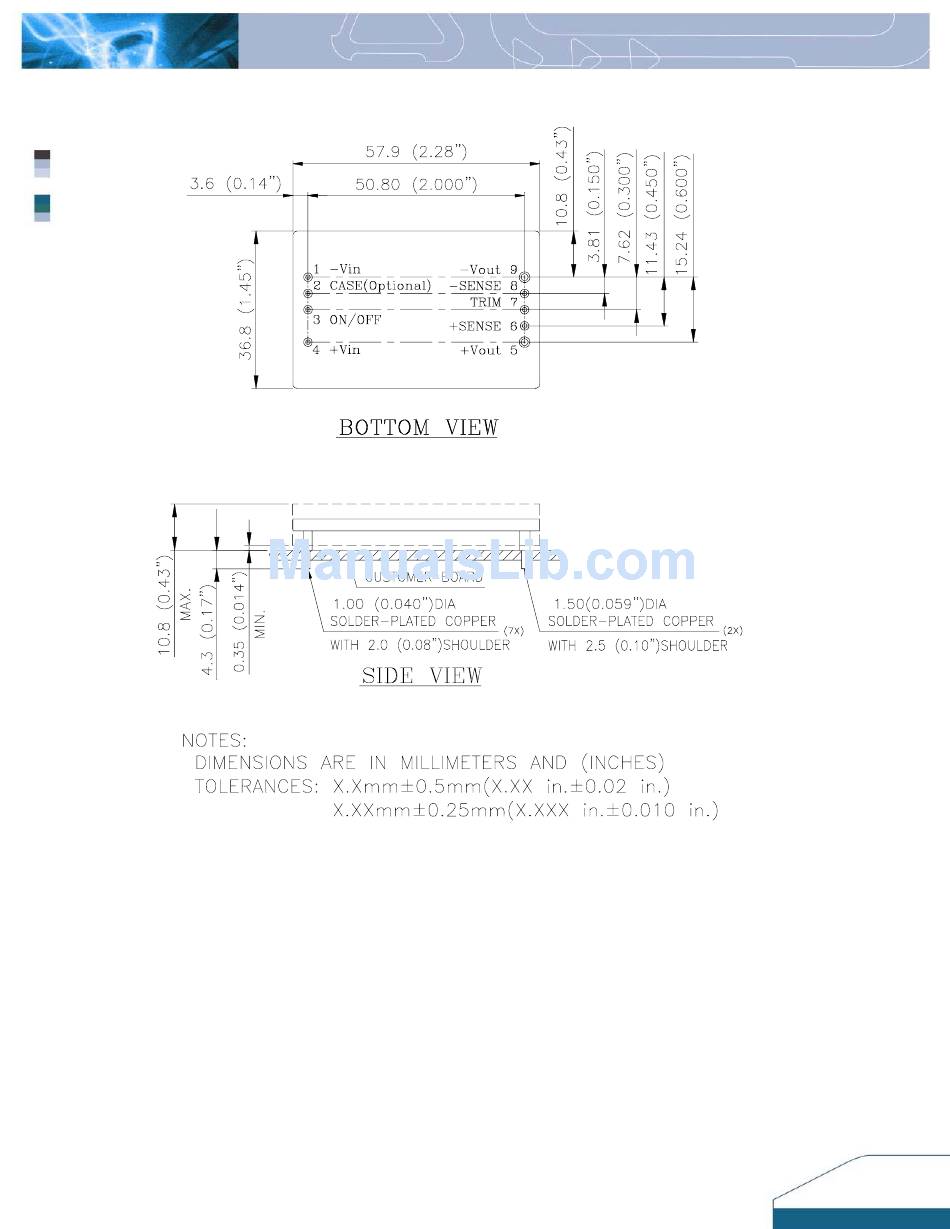

MECHANICAL DRAWING (WITHOUT HEATSPERADER)
Pin No. Name
1 -Vin
2 CASE
3 ON/OFF
4 +Vin
5 +Vout
6 +SENSE
7 TRIM
8 -SENSE
9 -Vout
Notes:
Pins 1-4, 6-8 are 1.00mm (0.040") diameter
1
Pins 5 and 9 are 1.50mm (0.060") diameter
2
All pins are copper with Tin plating
3
DS_Q48SP12017_05302008
Function
Negative input voltage
Case ground pin
Remote ON/OFF
Positive input voltage
Positive output voltage
Positive remote sense
Output voltage trim
Negative remote sense
Negative output voltage
11
