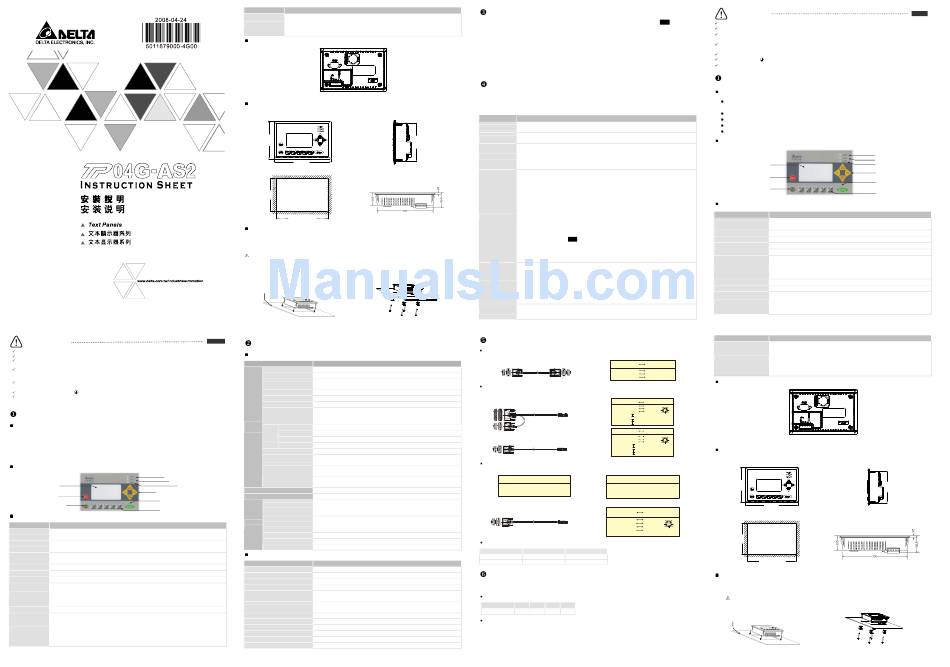

Delta Electronics Terminal Panels Series TP04G-AS2 Instruction Sheet

Warning
Please read this instruction carefully before use.
Switch off the power before wiring.
The display panel of TP04 series is waterproof. But please prevent grease, corrosive liquids and sharp objects from
contacting the TP04 series.
The TP04 series require 24VDC input power. DO NOT connect input AC power supply to any of the RS-485
communication port; otherwise serious damage may occur. Check all the wiring again before switching on the
power.
DO NOT touch any terminal when the power is switched on. DO NOT touch any internal circuit in 1 minute after
the power is switched off.
Make sure the groud terminal is correctly grounded in order to prevent electromagnetic interference.
Please use the fixed support accessory which is packed together with the product provided by Delta. DO NOT
tighten the screws out of the normal torque specifications; otherwise serious damage may occur.
Introduction
Model Explanation
Thank you for choosing Delta TP Series. TP04G-AS2 has the features of high resolution 128×64 dots and is
able to display 8×4 Chinese character. It provides multilingual display and two built-in communication ports, one
is for RS-232/RS-422 and the other is for RS-485. RS-232 and RS-485 can be used simultaneously. Besides, it
also supports built-in RTC, communication/alarm LED indicators. The user can purchase program copy card
(optional) to copy settings and programs quickly and save download time. Regarding the editing software, there
are various objects and images for the user's requirements.
Product Outline
Alarm LED Indicator
RS-232 LED Indicator
Displaying Area RS-485/RS422 LED Indicator
Arrow Keys
Escape / Exit Key
Enter Key
Shift Key
Function Keys
Panel Function Explanation
Panel component Explanation
Alarm LED indicator Status 1: When power is on, LED will start to blink slowly
(RED)
Status 2: When there is an abnormal situation, LED will blink quickly along with an alarm sound.
RS-232 LED
LED will blink when transmits program and communicates via RS-232.
indicator (yellow)
RS-485/RS-422 LED
LED will blink when communicates via RS-485/RS-422.
indicator (green)
Displaying area Liquid Crystal Module display area. It is used to display current program status.
Escape/Exit key It is used to cancel an incorrect input, or to exit a programming step.
Shift key It is used to select function keys F0 ~ F9 and other keys for special function.
UP/Pg Up: It is used to increase the value or move up one page.
Pg Dn/DOWN: It is used to decrease the value or move down one page.
Arrow keys
Left: This key is left direction key and it can be used to select the position of the value.
Right: This key is right direction key and it can be used to select the position of the value.
Enter key It is used to input a value or accept a programming command.
F0/F5: It is used to be constant 0 (F0) and 5 (Shift+F0) when it is in the system menu, the user
can use it to define functions separately when they are in user page.
F1/F6: It is used to be constant 1 (F1) and 6 (Shift+F1) when it is in the system menu, the user
Function keys
can use it to define functions separately when they are in user page.
F2/F7: It is used to be constant 2 (F2) and 7 (Shift+F2) when it is in the system menu, the user
can use it to define functions separately when they are in user page.
Panel component Explanation
F3/F8: It is used to be constant 3 (F3) and 8 (Shift+F3) when it is in the system menu, the user
can use it to define functions separately when they are in user page.
Function keys
F4/F9: It is used to be constant 4 (F4) and 9 (Shift+F4) when it is in the system menu, the user
can use it to define functions separately when they are in user page.
Back Panel
BATTERY
SWITCH OR
RS-485/422
5 PIN terminal/Wire gauge: 12-24 AWG/Torque: 4.5 lb.-inch
Dimension
Front panel (unit: mm [inch]) Right side diagram (unit: mm [inch])
97.00
[3.82]
147.00 [5.79]
Mounting dimension (unit: mm [inch]) Vertical view (unit: mm)
85
[3.35]
135~136.5[5.31~5.37]
Thickness Range 0.5~9mm
Installation
Please insert TP04 series to the opening hole of panel and tighten the screws. However, if a firm mounting
TP04 series to the panel is needed, please use the mounting fixed support accessory which is packed together
with TP04 series, then insert the fixed support in the back and tighten the screws.
If the fixed support is not installed well, Delta will not guarantee the waterproof function. The screw torque
should be 4-5(kg-cm). DO NOT exceed this specification when tightening the screws; otherwise TP04 series
may be damaged.
Notes: The flat surface should be a UL Type 4 "Indoor Use Only" enclosure or equivalent (IP65/NEMA4). Please refer to
the figures below.
Please leave sufficient space (more than 50mm )
around the unit for heat dissipation.
Thickness: 0.5~9.0mm
ENGLISH
Specifications
Function Specifications
Item TP04G-AS2
Screen type STN-LCD
Display color Monochromatic
The back-light automatic turn off time is 1 ~ 99 minutes (0 = DO NOT turn off)
Backlight
(The back-light life is about 50 thousand hours at 25° C)
Resolution 128x64 dots
Display range (W) x (H) = 72 x 40 (unit: mm); 3.00" (diagonal preferred)
Contrast adjustment 10 levels of adjustment
ASCII: (Code page 850) Alphanumeric (including European characters)
Language/Font Taiwan: (Big 5 codes) Traditional Chinese Fonts
China: (GB2324-80 codes) Simplified Chinese Fonts
Display
5×8 dots 25 characters×8 rows
screen
8×8 dots 16 characters×8 rows
Display
text
8×12 dots 16 characters×5 rows
8×16 dots 16 characters×4 rows
Font Size ASCII: 5×8, 8×8, 8×12, 8×16
1. Power on indication (Blink for three times); 2. Communication error alarm;
Alarm LED indicator (RED)
3. Special indication by user programming.
RS-232 LED indicator
It will blink when transmitting program and communicating by using RS-232.
(yellow)
RS-485/RS-422
It will blink when communicating by using RS-485/RS-422.
LED indicator (green)
Program memory 256KB flash memory
RAM of system 32K Byte
Unsynchronized transmission method: RS-232;
Serial communication port
Data length: 7 or 8 bits, Stop bits: 1 or 2 bits; Parity: None/Odd/Even;
RS-232 (COM1)
Transmission speed: 9,600 bps ~ 115,200 bps; RS-232: 9 PIN D-SUB male.
Extension communication Unsynchronized transmission method: RS-485 / RS-422; Data length: 7 or 8 bits;
External
port RS-422 (COM1) Stop bits: 1 or 2 bits; Parity: None/Odd/Even; Transmission speed: 9,600 bps ~
interface
115,200 bps; RS-422: 9 PIN D-SUB male; RS-485: 5 PIN removal terminal.
RS-485 (COM2)
Extension interface 1. Update firmware version. 2. The slot for program copy card.
Battery cover 3V DC battery for HMI
5 PIN removal terminal Include 24V DC input and RS-485 communication input
Electrical Specifications
Specifications TP04G-AS2
Communication interface COM1: RS-232/RS422; COM2: RS-485.
Waterproof class of front panel IP65/NEMA4
Operating temperature for hardware 0 ~ 50° C; 20 ~ 90% RH (non-condensing)
Storage temperature for hardware -20 ~ 60° C
5Hz f 9 Hz = Continuous: 1.75mm/Occasional: 3.5mm
≦ ＜
Vibration
9Hz f 1 50Hz = Continuous: 0.5g/Occasional: 1.0g
≦ ≦
15g peak, 11ms duration, half-sine, three shocks in each direction per axis,
Shock
on 3 mutually perpendicular axes (total of 18 shocks)
Radiated emission CISPR11, Class A
Electrostatic discharge immunity EN61000-4-2
Radiated immunity EN61000-4-3
Electrical fast transient EN61000-4-4
Weight/dimensions 0.24kg; 147×97×35.5mm (Width(W)×Height(H)×Deep(D))
Cooling method Natural air cooling
Password Function
1. If the user forgot the password, the password can be cleared by using the following code: 8888. This
universal code will clear the password and all TP04 series internal programs. The TP04 series will be reset to
the factory settings by using this code also. Please pay close attention when using it.
2. The password can be the alphabet from A to Z or the number from 0 to 9. But it must use the function keys F0
~ F9 to input the password characters. Please refer to the following table.
F0/F5: Scrolls in a loop as follows 0→5→A→B→C→D→E→F→0
F1/F6: Scrolls in a loop as follows 1→6→G→H→I→J→K→1
F2/F7: Scrolls in a loop as follows 2→7→L→M→N→O→P→2
F3/F8: Scrolls in a loop as follows 3→8→Q→R→S→T→U→V→3
F4/F9: Scrolls in a loop as follows 4→9→W→X→Y→Z→4
Hardware Operation
When the user wants to startup TP04 series, a 24V DC power is needed. After applying 24V DC power to
TP04 series, it will enter into the startup display and then enter the user-designed program. Pressing Esc key
and holding on for 5 seconds can return to system menu. There are five selections in the system menu and
are described below.
Selections
Use the connection cable (DVPACAB530) to connect the TP04 serial communication port RS-232 to
Download program
a PC. Then use the TPEditor software to download an application program to TP04.
Use the connection cable (DVPACAB530) to connect the TP04 serial communication port RS-232 to
Upload program
85.00 a PC. Then use the TPEditor software to upload an application program from TP04.
[3.35]
Transfer a program between two TP04 units.
1: transmit programs. 2: receive programs
Copy program When transmit programs and data between two TP04 units. Set one TP04 to "Receive Program"
mode and the other TP04 to "Transmit Program" mode. Please use twisted pair wires to connect the
two units via the RS-485 ports.
There are 9 items that used to modify TP04 system settings:
1. Communication protocol: Setting the address of TP04, the control port of PLC, and the
communication string for either RS-232 or RS-485.
2. Contrast: Adjust the contrast of LCM display screen.
3. Back-light: adjust the automatic turn off time of LCM. Setting range is 00 ~ 99 minutes. If set to
00, the LCM Back-light will not turn off.
4. Date and Time: It is used to set the TP04 built-in RTC including year, month, day, hour, minute,
second and week. Also the internal battery capacity display is shown here.
5. Buzzer: Used to set the buzzer sound, normal mode or quiet mode.
TP04 settings
6. Language Setting: Used to set the displayed language. English, Traditional Chinese, Simplified
Chinese or user defined language.
7. Password setting: Used to set, enable, and disable the password function. If the password
function is enabled, it will require the user to input a password before entering any system menu.
The factory password is 1234.
8. Startup display: Used to select the TP04 startup display. User can select "user defined" to use the
file that designed by TPEditor and download to TP04.
9. Comm. indicator: The user can determine if the RS-232 and RS-485 LEDs will blink or not during
communication.
There are three methods to connect to PLC:
1. Using TP04 serial communication port (COM1) RS-232: set 8-pin DIP switch to RS-485 mode
and connect the cable (DVPACAB215 or DVPACAB230) to program communication I/O
RS-232C of PLC.
PLC connection
2. Using extension communication port (COM2): set 8-pin DIP switch to RS-485 mode and connect
5-pin removal terminal of extension communication port to RS-485 of PLC with twisted pair.
3. Using extension communication port (COM2): set 8-pin DIP switch to RS-422 mode and connect
four pins (6, 7, 8, 9) of 9 PIN D-SUB male to RS-422 of PLC with 4-wire cable.
Execute the internal program that download from TPEditor or transmitted from other TP04 units.
Execution When program is in execution, the user can return to system menu by pressing Escape/Exit (Esc)
key for 5 seconds.
Communication Connection
TP04G may connect to a PC by using connection able DVPACAB515
PC or TP02 / 04G
TO PC (RS-2 32) TO TP0 2 / 04G
5 1 6
9
6 1 5 9
9 PIN D-SUB 9 PIN D-SUB
TP04G may connect to a DVP-PLC by using connection cable DVPACAB215/DVPACAB230/
DVPACAB2A30
1. DVPACAB215/DVPACAB230
TO P C o r TP 02 / 04 G
13 TO P LC
25 P IN D-S UB
M INI DIN TER MIN AL
14 1
9 5
6 9 P IN D-SU B
1
2. DVPACAB2A30
TO P C o r TP 02 / 0 4G
TO P LC
9 5
6
1 MINI DIN TERMINAL
9 P IN D-SUB
The Pin definition of 9 PIN D-SUB
1. RS-232 2. RS-422
TP 02 / 0 4G COM Po rt
RS-232 9 PIN D- SUB male
3 Tx
2 Rx
5 GND
3. DVPACAB630 (RS-422)
TO TP02 / 04G
TO PLC
9 5
6 1
MINI DIN TERMINAL
9 PIN D-SUB
Switch between RS-422/RS-485 (by using 8-PIN DIP switch)
8-PIN DIP switch RS-485 RS-422
SW1 ~ SW4 On Off
SW5 ~ SW8 Off On
Battery Life and Precision of Calendar
Timer
Battery Life
Temperature (° C) -20 0 20 60
Life (Year) 1.972 2.466 2.712 2.835
Precision of Calendar Timer
1. At 0° C/32° F, less than -117 seconds error per month.
2. At 25° C/77° F, less than 52 seconds error per month.
3. At 55° C/131° F, less than -132 seconds error per month.
注 意 事 項
24V
產 品 簡 介
型 號 說 明
(RS-232
Explanation
/
產 品 外 觀 及 各 部 介 紹
LC M
退 出 取 消 鍵
複 合 功 能 鍵
面 版 功 能 說 明
( )
RS-232 ( )
RS-485/RS-422 ( )
LCM
/
UP/Pg Up
Pg Dn/DOWN
Left
Right
F0/F5
F1/F6
F2/F7
F3/F8
PC COM Port TP02 / 04G COM Port
9 PIN D-SUB female 9 PIN D-SUB female F4/F9
Rx 2 3 Tx
Tx 3 2 Rx
GND 5 5 GND
背 面 介 紹
PC / TP COM Po rt PLC COM1 Port
25 PIN D-SUB female 8 PIN MINI DIN
2 4 Rx
Tx 2 1
Rx 3 5 Tx
5 4 3
GND 7 8 GND
8 6
4 1 ,2 5 V 7
5
6
8
2 0
PC / TP COM P ort PLC COM1 Port
9 PIN D-SUB fe male 8 PIN MINI DIN
Tx 3 4 Rx 1
2
Rx 2
5 Tx 5 PIN
5 4 3
GND 5 8 GND
8 6
7 1 ,2 5 V 7
8
1
4 外 觀 尺 寸
6
( mm [ ] inch)
TP 02 / 04G COM Port
RS-422 9 P IN D-S UB male
97.00
6 Rx + [3.82]
7 Rx -
8 Tx +
9 Tx -
147.00 [5.79]
MIT SUBIS HI F X-P LC
TP 02 / 04G COM Port
COM1 Port RS -422 ( mm [ ] inch)
9 P IN D-S UB female
8 PIN MINI DIN
Rx+ 6 7 Tx+ 2 1
Rx -
7 4 Tx - 5 3
4
Tx+ 8 2 Rx+
8 6
7
Tx - 9 1 Rx -
GND 5 3 S G
85
[3.35]
135~136.5[5.31~5.37]
厚 度 : 0.5~9mm
安 裝 方 法
嵌 入 式
隔 板 厚 度 ： 0 .5~9.0mm
RS-485
TP04G-AS2 128*64 8*4
RS-485/RS-422 )
LED
警 示 指 示 燈
RS-232
指 示 燈
RS-485 指 示 燈
顯 示 區
命 令 操 作 鍵
/
輸 入 鍵
數 值 鍵 及 功 能 鍵
RS-232
RS-485/RS-422
F0 ~ F9
0 (F0) 5 (Shift+F0)
1 (F1) 6 (Shift+F1)
2 (F2) 7 (Shift+F2)
3 (F3) 8 (Shift+F3)
4 (F4) 9 (Shift+F4)
BATTERY
SWITCH OR
RS-485/422
/ 12-24 AWG / 4.5 lb.-inch
( mm [ ] inch)
85.00
[3.35]
( mm)
( )
4-5 (kg-cm)
Type 4
