Operation Mode Select

The operation mode is on "Normal mode" from factory
shipping. When to change the mode, please follow the steps
shown below.
1
Turn off the receiver.
2
Press and hold the Link/Mode switch and turn on the
receiver. Keep the switch hold more than one(1)
second. The LED starts flashing with the current
status.
3
Release the switch.
4
Turn off the receiver.
By doing this step, the mode can switch over between two(2)
modes.
0 sec.
Press and Hold
（Function）
Showing the CURRENT
mode with blink.
Red Blink = Normal
（LED Status）
Green/Red Blink =
High Speed
Please check the operation mode by observing the LED when
turning on the receiver. If possible there's no FASST transmitter
turned on around you in order to make firmer check.
When turn on the receiver, the LED will be;
• Red when on "Normal mode"
• Green and Red (makes Orange) when on "High Speed mode".
(After two(2) seconds, change to Red.)
If there are some FASST transmitter turned on around the
receiver, the LED may show the above status for a brief
moment then changed to the status indication as shown in the
"LED indication" table.

LED Indication

Green Red
Solid Solid Initializing
Off Solid No signal reception
Solid Off Receiving signals
Blink Off Receiving signals but ID is unmatched

Link to the transmitter

1
Press and hold the Link/Mode switch more than two(2)
seconds.
Re-adjust the F/S position (only for TM-8)
1
Press and hold the Link/Mode switch between one(1)
and two(2) seconds.
0 sec.
0 to 1 sec.
Press and Hold
With TM-8
No function
(not included in this set)
Other than TM-8
(not included in this set)
1M23N17434
Turn on the receiver.
1 sec.
0 to 1 sec. More than 1 sec.
To change the mode between
No function
Normal and High Speed
Solid as the mode changed.
Red Solid = Normal
Green/Red Solid = High
Speed
(Become Red after one (1)
second)
Status
1 sec. 2 sec.
1 to 2 sec. More than 2 sec.
To set the F/S Re-link(ID set) and to
position(No re-link) set the F/S position
No function Re-link(ID set)
1080 Yabutsuka, Chosei-mura, Chosei-gun, Chiba-ken, 299-4395, Japan
Phone: +81 475 32 6982, Facsimile: +81 475 32 6983
 WARNING
Do not perform the linking procedure with

motor's main wire is connected or the engine is
operating as it may result in serious injury.
While the linking is done, please cycle receiver

power and check if the receiver to be linked is
really under the control by the transmitter to be linked.

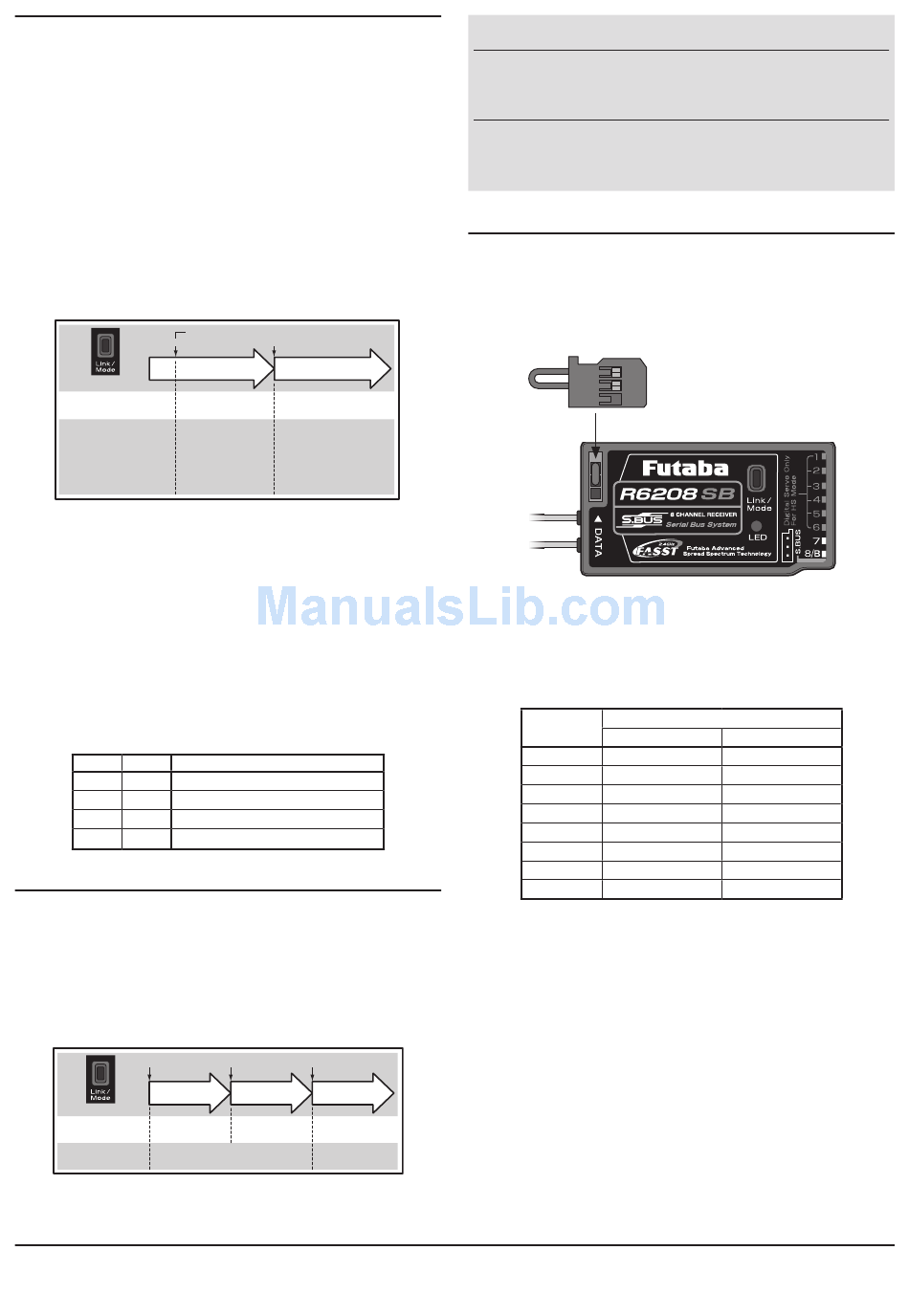

S.BUS Servo Channel Setting Method

S.BUS servo channel setting can be performed at the R6208SB
receiver.
1
Connect the accessory short-plug to the DATA port of
the receiver.
* Connect the short-plug to the DATA port only when an S.BUS servo
channel is set. Normally do not connect the plug.
2
Connect an S.BUS servo to the conventional system
output connector(1 to 8) corresponding to the channel
you want to set.
Output
connector
* Channel setting mode A (ch1 to 8 setting mode) or channel setting
mode B (ch9 to 16 setting mode) can be set.
3
Turn on the receiver.
* At once when turning on the receiver, the channel setting is com-
pleted in mode A.
(To switch to mode B, press the Link/Mode button until
the red and green LED starts to blink simultaneously.
The channel setting is completed in mode B.)
* The LED corresponding to the setting mode blinks.
Mode A: Red blinks 3 times
Mode B: Green blinks 3 times
4
Turn off the receiver.
FUTABA CORPORATION
Short-plug
(accessory)
Channel setting
Mode A
1 1
2 2
3 3
4 4
5 5
6 6
7 7
8 8
©FUTABA CORPORATION
Mode B
9
10
11
12
13
14
15
16
