FUTABA FP-3EG Instruction Manual

FUTABA FP-3EG Instruction Manual

Am 3 channel digital proportional radio control
Hide thumbs
Table of Contents

Advertisement

Quick Links

Futaba
DIGITAL PROPORTIONAL
RADIO CONTROL

Advertisement

Table of Contents
loading

Related Manuals for FUTABA FP-3EG

Summary of Contents for FUTABA FP-3EG

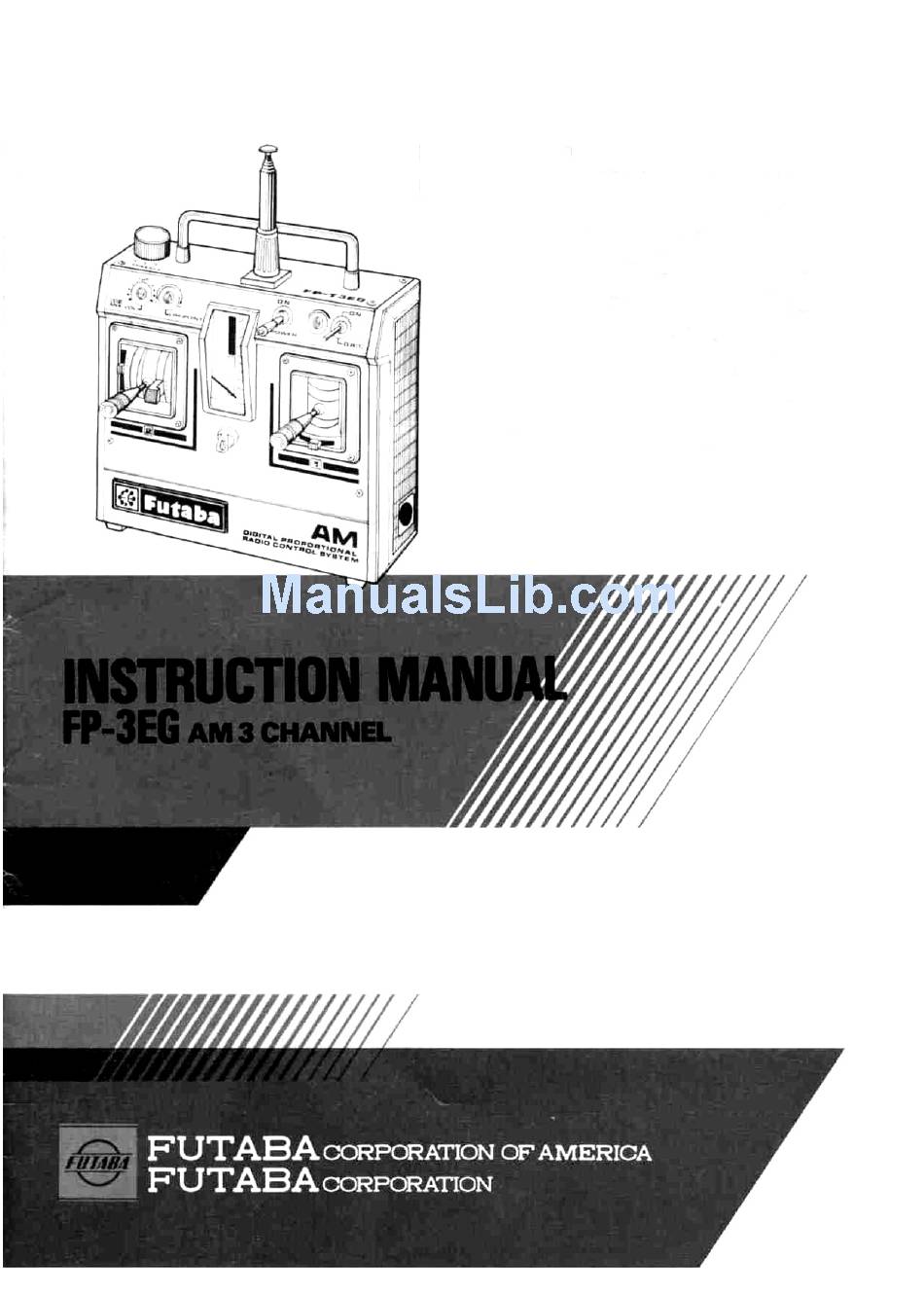

  • Page 1 Futaba DIGITAL PROPORTIONAL RADIO CONTROL...

  • Page 2: Table Of Contents

    Thank you for purchasing a Futaba digital proportional radio control set. Please read this manual thoroughly before using your new set. CONTENTS FEATURES ..... . . 1 CONTENTS AND RATINGS .

  • Page 3: Features

    •FEATURES The FP-3EG is a high quality 3 channel, expanded digital proportional radio control set. The receiver and servo power is a four-battery; 4.8V (Ni-Cad)/6.0V (Dry-Cell). The transmitter power supply is 9.6V (Ni-Cad)/10.5V (Dry-Cell). 3FG with S24 servos only comes with Ni-cads for both TX and RX. Speed and torque of our servo are the highest in its class.

  • Page 4: Contents And Ratings

    •CONTENTS AND RATINGS FP-3EG Set name Transmitter FP-T3EG x 1 Pen-cell Dry Battery Type or NiCd Battery Type. Receiver FP-R3F x 1 Servo FP-S24 x 2 or FP-S20x2 or S21Sx2 or S26x2 or S27x2 SWH-1 Switch NiCd battery/Batt holder NR-4C/AA0312...

  • Page 5: Neutral Lever

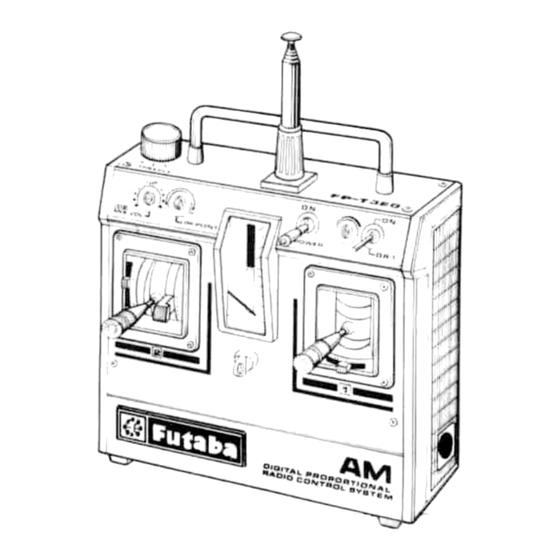

    •TRANSMITTER The below figure gives the name of each part of the transmitter. 13 Antenna Memorize the position and operation of each switch and control. 1 2 Handle 3 3rd channel 7 Limit point trimmer 11 Power switch 6 Mixing trimmer 5 Rudder dual rate trimmer 4 Rudder dual...

  • Page 6: Opening The Transmitter Rear Cover

    •OPENING THE TRANSMITTER REAR COVER AND LOADING THE PENLIGHT BATTERIES • Remove the rear cover of the transmitter as Pay careful attention to the polarity y shown in Fig. 4 and load the 7 pen-cell bat- of the 7 pen-cell batteries. teries in the correct polarity.

  • Page 7: Servo Reversing

    •REVERSING THE SERVO After connecting the linkage, check each rudder. If the direction of the rudder and the stick operating direction are opposite, switch the reversing switch. Fig. 7 15 Rudder reverse switch 16 Throttle reverse switch 15 Rudder reverse switch (Reverses the direction of operation of the rudder servo.) 16 Throttle reverse switch (Reverses the direction, of operation of the throttle servo.)

  • Page 8: Receiver, Servo, & Switch Harness

    Fig. 9 •After mounting is complete, recheck each • Be alert for noise. part, then make the transmitter antenna as If engine vibration causes metal parts to short as possible, extend the receiver an- touch, noise will be produced and the re- tenna fully, and operate the set from a dis- ceiver and servos may operate incorrectly.

  • Page 9: Throttle->Rudder Mixing Adjustment

    SLOW, the boat. will slowly swerve to the right at HIGH. Mix- ing from throttle to rudder, the biggest feature of the Model FP-3EG, completely eliminates this tendency. You should now have a good understanding of throttle to rudder mixing.

  • Page 10: Rudder Dual Rate

    7. Include a packing list of all items being returned, and double check to make sure that all items are packed. 8. Upon receipt of your equipment at the Futaba factory, an estimate of the cost of repair (over $25.00 only) will be sent to you.

  • Page 11: Fps24& S27 Exploded Views

    FP-S24...

This manual is also suitable for:

Fp-t3egFp-s24Fp-r3f
