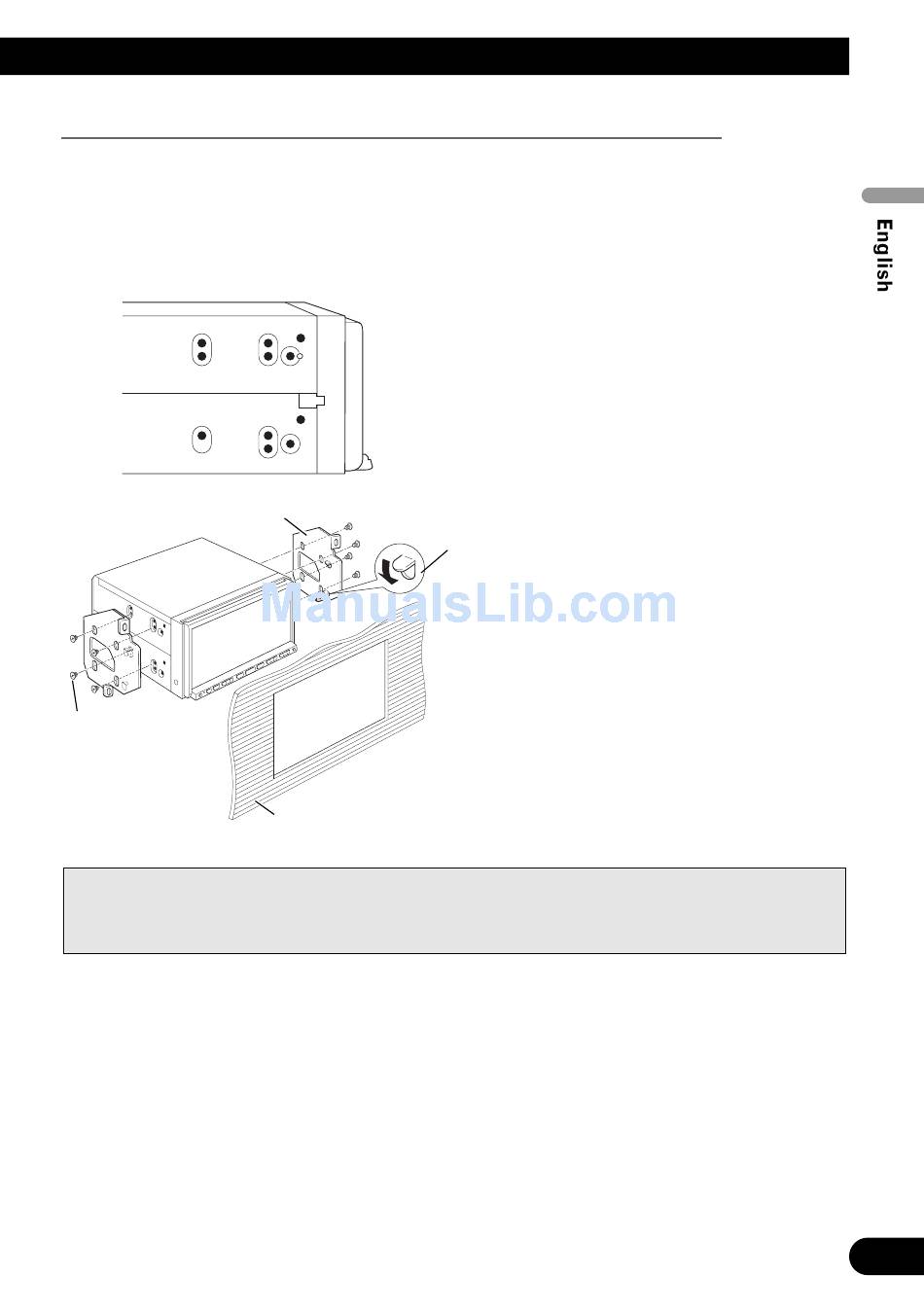

Installation using the screw holes on the side of the navigation unit
1. Fastening the navigation unit to the factory radio-mounting bracket.
Position the navigation unit so that the brackets screw holes and its screw holes are aligned
(are fitted), and tighten the screws at 3 or 4 locations on each side. Use either the binding
screws (5 × 6 mm) or flush surface screws (5 × 6 mm), depending on the shape of the
bracket's screw holes.
Factory radio mounting bracket
Binding screw or
flush surface screw
Be sure to use the
screws supplied
with this navigation
system.
Note:
In some types of automobiles, discrepancy may occur between the navigation unit and the dashboard. If
this happens, use the supplied frame to fill the gap.
Dashboard or console
If the pawl gets in the
way, bend it down
