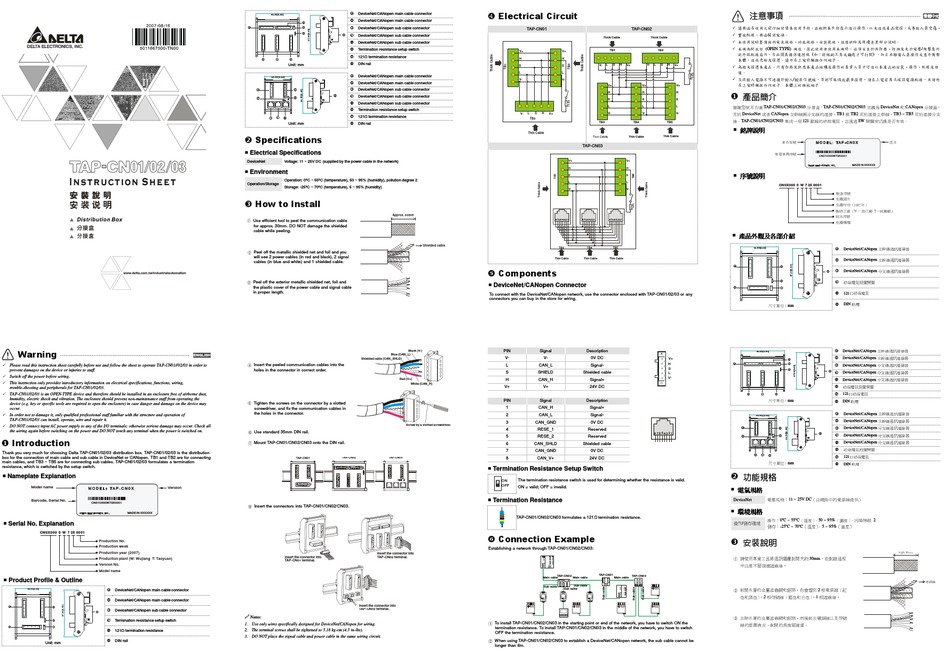

Delta Electronics Distribution Box TAP-CN01/02/03 Instruction Manual

Warning
Please read this instruction sheet carefully before use and follow the sheet to operate TAP-CN01//02/03 in order to
prevent damages on the device or injuries to staff.
Switch off the power before wiring.
This instruction only provides introductory information on electrical specifications, functions, wiring,
trouble-shooting and peripherals for TAP-CN01/02/03.
TAP-CN01/02/03 is an OPEN-TYPE device and therefore should be installed in an enclosure free of airborne dust,
humidity, electric shock and vibration. The enclosure should prevent non-maintenance staff from operating the
device (e.g. key or specific tools are required to open the enclosure) in case danger and damage on the device may
occur.
In order not to damage it, only qualified professional staff familiar with the structure and operation of
TAP-CN01/02/03 can install, operate, wire and repair it.
DO NOT connect input AC power supply to any of the I/O terminals; otherwise serious damage may occur. Check all
the wiring again before switching on the power and DO NOT touch any terminal when the power is switched on.
Introduction
Thank you very much for choosing Delta TAP-CN01/02/03 distribution box. TAP-CN01/02/03 is the distribution
box for the connection of main cable and sub cable in DeviceNet or CANopen. TB1 and TB2 are for connecting
main cables, and TB3 ~ TB5 are for connecting sub cables. TAP-CN01/02/03 formulates a termination
resistance, which is switched by the setup switch.
Nameplate Explanation
Model name
Version
Barcode, Serial No.
CN010000W7250001 R T U D E N T 0 0 T 7 2 0 0 0 0 1
VX.XXXX
MADE IN XXXXXX MADE IN XXXXXX
Serial No. Explanation
CN0X000 0 W 7 25 0001
Production No.
Production week
Production year (2007)
Production plant (W: Wujiang T: Taoyuan)
Version No.
Model name
Product Profile & Outline
6 6 .5 0 [2 .62 ] 1 DeviceNet/CANopen main cable connector
2 DeviceNet/CANopen main cable connector
1 2
3
DeviceNet/CANopen sub cable connector
6
4
5 Termination resistance setup switch
3 4
5
121 termination resistance
6
DIN rail
Unit: mm
1 DeviceNet/CANopen main cable connector
96.50[ 3.80]
2 DeviceNet/CANopen main cable connector
2
1 6 3 DeviceNet/CANopen sub cable connector
7
4
8 DeviceNet/CANopen sub cable connector
5
DeviceNet/CANopen sub cable connector
6 Termination resistance setup switch
7 121 termination resistance
3 4 5
8 DIN rail
Unit: mm
1 DeviceNet/CANopen main cable connector
66.50[ 2.62]
2 DeviceNet/CANopen main cable connector
3
1 2 DeviceNet/CANopen sub cable connector
8 4 DeviceNet/CANopen sub cable connector
7 6
5 DeviceNet/CANopen sub cable connector
6
Termination resistance setup switch
7 121 termination resistance
3 4 5
Unit: mm 8 DIN rail
Specifications
Electrical Specifications
DeviceNet Voltage: 11 ~ 25V DC (supplied by the power cable in the network)
Environment
Operation: 0ºC ~ 55ºC (temperature), 50 ~ 95% (humidity), pollution degree 2
Operation/Storage
Storage: -25ºC ~ 70ºC (temperature), 5 ~ 95% (humidity)
How to Install
① Use efficient tool to peel the communication cable
for approx. 30mm. DO NOT damage the shielded
cable while peeling.
Peel off the metallic shielded net and foil and you
②
will see 2 power cables (in red and black), 2 signal
cables (in blue and white) and 1 shielded cable.
③ Peel off the exterior metallic shielded net, foil and
the plastic cover of the power cable and signal cable
in proper length.
ENGLISH
Shielded cable (CAN_SHLD)
Insert the peeled communication cables into the
④
holes in the connector in correct order.
Tighten the screws on the connector by a slotted
⑤
screwdriver, and fix the communication cables in
the holes in the connector.
Use standard 35mm DIN rail.
⑥
⑦ Mount TAP-CN01/CN02/CN03 onto the DIN rail.
TAP-C N02
TAP-C N01
OF F
OF F
⑧ Insert the connectors into TAP-CN01/CN02/CN03.
Insert the connector into
TAP-CN01 terminal.
Insert the connector into
TAP-CN03 terminal.
Notes:
1. Use only wires specifically designed for DeviceNet/CANopen for wiring.
2. The terminal screws shall be tightened to 5.18 kg-cm (4.5 in-lbs).
3. DO NOT place the signal cable and power cable in the same wiring circuit.
Electrical Circuit
TAP-CN01
V+
H
S
L
V-
V- L S H V+
TB3
Thin Cable
App rox. 3 0mm
8 7
Shielded cable
Thin Cable
Components
DeviceNet/CANopen Connector
To connect with the DeviceNet/CANopen network, use the connector enclosed with TAP-CN01/02/03 or any
connectors you can buy in the store for wiring.
PIN Signal
Black (V-)
Blue (CAN_L)
V- V-
L CAN_L
S SHIELD
Red (V+) H CAN_H
White (CAN_H)
V+ V+
PIN Signal
1 CAN_H
2 CAN_L
3 CAN_GND
Screw by a slotted screwdriver.
4 RESE_1
5 RESE_2
6 CAN_SHLD
7 CAN_GND
TAP -CN0 3 8 CAN_V+
Termination Resistance Setup Switch
The termination resistance switch is used for determining whether the resistance is valid.
O N
OF F
O FF
ON = valid; OFF = invalid.
Termination Resistance
TAP-CN01/CN02/CN03 formulates a 121
Connection Example
Establishing a network through TAP-CN01/CN02/CN03:
Insert the connector into
TAP-CN02 terminal.
TAP-CN02
Main cable
Sub cable
To install TAP-CN01/CN02/CN03 in the starting point or end of the network, you have to switch ON the
①
termination resistance. To install TAP-CN01/CN02/CN03 in the middle of the network, you have to switch
OFF the termination resistance.
② When using TAP-CN01/CN02/CN03 to establish a DeviceNet/CANopen network, the sub cable cannot be
longer than 6m.
TAP-CN02
Thick Cable Thick Cable
TB1 TB2
V+
H
L S H V- L S H
S V- V+ V+
L
V-
V+ V+ V+
H H H
S S S
L L L
V- V- V-
TB4 TB5
TB3
Thin Cable
Thin Cable
TAP-CN03
V+ V+
H H
S S
L L
V- V-
6 5 4 3 2 1 8 7 6 5 4 3 2 1 8 76 5 4 3 2 1
產 品 外 觀 及 各 部 介 紹 產 品 外 觀 及 各 部 介 紹
TB 3 TB4 TB5
Thin Cable Thin Cable
1
3
Description
0V DC
V+
H 1
Signal-
S
Shielded cable
L
V-
Signal+
24V DC
Description
Signal+
Signal-
0V DC
Reserved
8 7 6 5 4 3 2 1
Reserved
Shielded cable
0V DC
24V DC
電 氣 規 格 電 氣 規 格 電 氣 規 格 電 氣 規 格
DeviceNet
環 境 規 格 環 境 規 格 環 境 規 格 環 境 規 格
termination resistance.
①
TAP-CN01
TAP-CN03
Main cable Main cable
Sub cable
Sub cable
②
③
注 意 事 項
(OPEN TYPE)
( )
/
產 品 簡 介
TAP-CN01/CN02/CN03 TAP-CN01/CN02/CN03 DeviceNet CANopen
DeviceNet CANopen TB1 TB2 TB3 ~ TB5
TAP-CN01/CN02/CN03 121 SW
銘 牌 說 明 銘 牌 說 明 銘 牌 說 明 銘 牌 說 明
產 品 型 號 版 本
管 理 條 碼 序 號
CN 010 000W 725 000 1 RT UDENT0 0T7 2 0 0 0 0 1
VX.XXXX
MADE IN XXXXXX MADE IN XXXXXX
序 號 說 明 序 號 說 明 序 號 說 明 序 號 說 明
CN0X000 0 W 7 25 0001
製 造 序 號
生 產 週 次
生 產 年 份 （ 2 0 0 7 年 ）
製 造 工 廠 （ W ： 吳 江 廠 T ： 桃 園 廠 ）
版 本 序 號
生 產 機 種
產 品 外 觀 及 各 部 介 紹 產 品 外 觀 及 各 部 介 紹
66. 50[2.62] 1 DeviceNet/CANopen 主 幹 線 通 訊 連 接 器
2 DeviceNet/CANopen 主 幹 線 通 訊 連 接 器
2
3 DeviceNet/CANopen 分 支 線 通 訊 連 接 器
6
5
4 終 端 電 阻 設 置 開 關
4
5 121 Ω 終 端 電 阻
6 DIN 軌 槽
尺 寸 單 位 ： m m
1
DeviceNet/CANopen 主 幹 線 通 訊 連 接 器
96.50[ 3.80]
2
DeviceNet/CANopen 主 幹 線 通 訊 連 接 器
2
6
3 DeviceNet/CANopen 分 支 線 通 訊 連 接 器
7
8
4 DeviceNet/CANopen 分 支 線 通 訊 連 接 器
5 DeviceNet/CANopen 分 支 線 通 訊 連 接 器
6 終 端 電 阻 設 置 開 關
7 121 Ω 終 端 電 阻
3 4 5
尺 寸 單 位 ： m m
8 DIN 軌 槽
1 DeviceNet/CANopen 主 幹 線 通 訊 連 接 器
66.50[ 2.62]
2 DeviceNet/CANopen 主 幹 線 通 訊 連 接 器
1 2 3 DeviceNet/CANopen 分 支 線 通 訊 連 接 器
8
4
7 6 DeviceNet/CANopen 分 支 線 通 訊 連 接 器
5 DeviceNet/CANopen 分 支 線 通 訊 連 接 器
6 終 端 電 阻 設 置 開 關
3 4 5
7 121 Ω 終 端 電 阻
尺 寸 單 位 ： m m
8 DIN 軌 槽
功 能 規 格
11 ~ 25V DC
0ºC ~ 55ºC 50 ~ 95% 2
/
-25ºC ~ 70ºC 5 ~ 95%
安 裝 說 明
大 約 3 0 m m
30mm
2
2 1
繁 體 中 文 繁 體 中 文 繁 體 中 文 繁 體 中 文
/
遮 蔽 線
