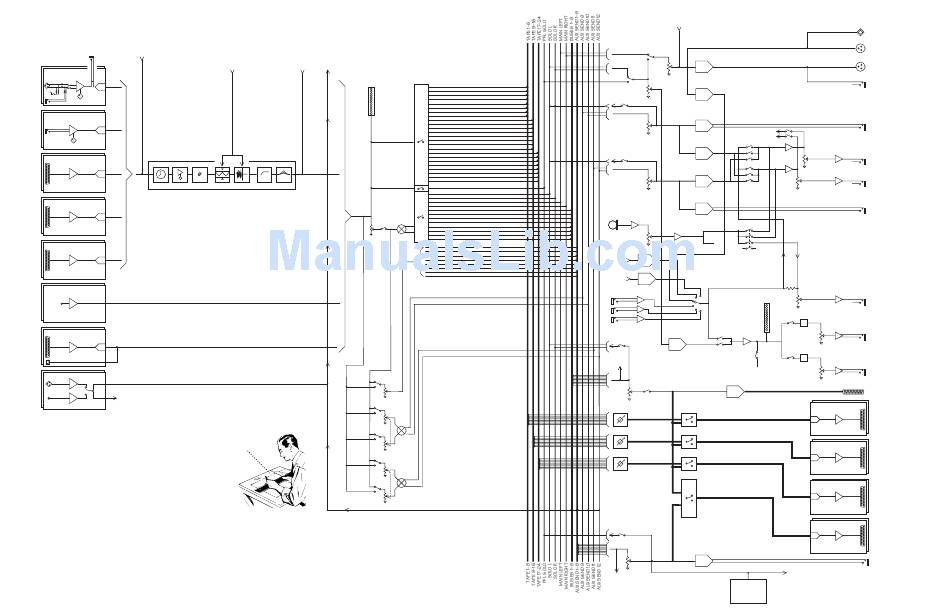

Mackie D8BBLOCKDIAG Wiring Diagram

PRE-DSP
Default: Itself (the channel)
INSERT
(CHANNEL TAP
ANALOG STEREO
CHANNEL TAP
INSERT/RETURN AND PLUG-INS)
2-TRACK DIGITAL INPUT
MIC/LINE 1 (through 12)
TRIM
MIC IN
MIC/LINE
A to D
48V
LINE IN
LINE 13 (through 24)
TRIM
LINE IN
A to D
FROM TAPE 25 (through 32)
A to D
Analog 8 channel TAPE CARD DELAY DIG. TRIM PHASE COMP
(optional)
FROM TAPE 33 (through 40)
A to D
Analog 8 channel TAPE CARD
(optional)
FROM TAPE 41 (through 48)
A to D
Analog 8 channel TAPE CARD
(optional)
FX card A. inputs 49–52
Inputs 53–64
(optional — B, C, D cards)
ALT I/O CARD 65-72 (optional)
A to D
TDIF/ADAT 8 channel format
(optional)
AES/EBU & S/PDIF STEREO INPUT
TO CONTROL ROOM
SELECT
KEY INPUT
OR:
POST-DSP
BUS TAP
INSERT
AUX TAP CHANNEL
(PLUG-INS
TAP
ONLY)
METER
DIRECT ASSIGN
GATE HI PASS EQ DIRECT ASSIGN
PAN
MUTE
FADER
PRE/
POST
AUX 1–8
AUX
LEVEL
AUX
"Mackie PAN
AUX
Digital 8•Bus
LEVEL
Block Diagram
12 / 22 / 2000"
AUX
LEVEL
AUX
PAN
AUX
LEVEL
MAIN INSERT R (L)
SOLO TO
MAINS
MASTER
FADER
SOLO/PFL
SOLO
LEVEL
AUX SOLO 9 (10)
( )
AUX 9/10 MASTER
AUX SOLO 11 (12)
( )
AUX 11/12 MASTER
TB LEVEL
FROM
D / A
S/PDIF IN
FROM
D / A
AES/EBU IN
CONTROL ROOM SELECT
2 TRK IN DIG IN 1
AUX 9/10
DIG IN 2
A
MAINS
B 2 TRK A
2 TRK B
C
2 TRK C
D / A
AUX 11/12
BUS SOLO
BUS
TAP
ASSIGN
8•BUS LEVEL
MUTE
LEVEL TO TAPE
LEVEL TO TAPE
LEVEL TO TAPE
AUX SOLO 1 (of 8)
AUX 1 (of 8)
MASTER
LEVEL
AUX
TAP
D8B OUTPUT SECTION
DIGITAL OUT LEFT
X2 LEFT AND (RIGHT)
AES / EBU
DIGITAL OUT LEFT
MAIN OUT LEFT
D / A
MAIN OUT LEFT
D / A
D / A
AUX 9/10
TO SOLO BUS
PHONES SELECT
CTRL RM PH 1
D / A 9/10
PH 1 LEVEL
11/12
PHNS 1 LEFT
CTRL RM PH 2
9/10
PH 2 LEVEL
D / A 11/12
PHNS 2 LEFT
D / A AUX 11/12
TB SELECT
PH 1
PH 2
STUDIO
(R)
TB ON/OFF
LEVEL STUDIO OUT LEFT
METERS DIM
MUTE
NEARFIELD
LEVEL
SPKR LEFT
SOLO
MONO LEFT DIM
(R)
MUTE
LEVEL
SPKR LEFT
D / A BUS 1–8
TAPE 1–8
TAPE 9–16
TAPE 17–24
D / A
AUX 1 – AUX 8
TO FX METER SELECT
FX CARDS
S/PDIF
(R)
/
(R)
(R)
(R)
(R)
(R)
MAIN
(R)
ALT I/0
