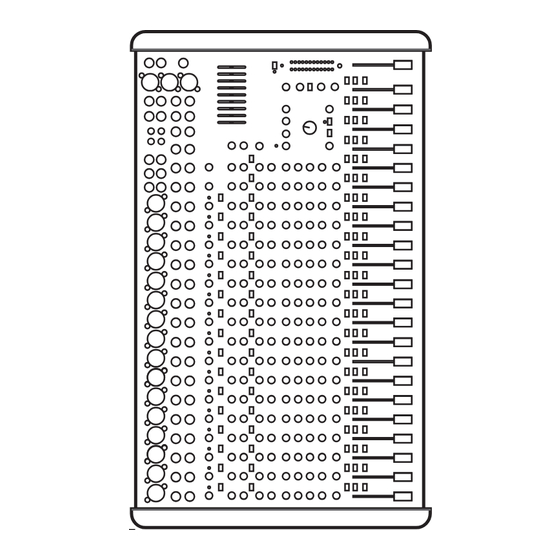

Mackie CFXMKII - DIAGRAMS Appendix

Repair
Service for the CFX MKII Series mixers is
available at a factory-authorized service center.
Service for Mackie mixers living outside the
United States can be obtained through local
dealers or distributors.
If your mixer needs service, follow these in-
structions:
1. Review the preceding troubleshooting
suggestions. Please.
2. Call Tech Support at 1-800-898-3211, 8am
to 5pm PST, to explain the problem in
detail. If it appears that the mixer needs
repair, you will be given a Service Request
Number. Have your mixer's serial number
ready. You must have an Service Request
Number before you can obtain service at a
factory-authorized service center.
3. Keep this owner's manual and the detach-
able linecord. We don't need them to repair
the mixer.
4. Pack the mixer in its original package,
including endcaps and box. This is VERY
IMPORTANT. When you call for the Service
Request Number, please let Tech Support
APPENDIX B: Technical Info
Specifications
CFX12, CFX16, CFX20 MKII
Mixer Section
Frequency Response
Mic Input to any Output (Gain at 0 dB):
+0, –1 dB, 32 Hz to 20 kHz
Distortion
THD and SMPTE IMD; 20 Hz to 20 kHz
Mic Input to Main Output:
< 0.05% @ +4 dBu output
Noise
20 Hz to 20 kHz BW (150Ω source impedance)
Equivalent Input Noise (EIN):
–127 dBu
Residual Output Noise:
Main, Monitor, and Effects outputs
Channel & Master levels off
–95 dBu
Common Mode Rejection Ratio (CMRR)
60 dB @ 1 kHz, Gain @ 0 dB
Crosstalk
Adjacent Inputs or Input to Output:
–90 dB @ 1 kHz
Fader Off
–90 dB @ 1 kHz
Mute Switch and Break Switch Mute
–80 dB @ 1 kHz
know if you need new packaging. Mackie is
not responsible for any damage that
occurs due to non-factory packaging.
5. Include a legible note stating your name,
shipping address (no P.O. boxes), daytime
phone number, Service Request Number,
and a detailed description of the problem,
including how we can duplicate it.
6. Write the Service Request Number in
PRINT
on top of the box. Product shipped
without the Service Request Number will
be refused.
7. Tech Support will tell you where to ship the
mixer for repair. We suggest insurance for
all forms of cartage.
8. We'll try to fix the mixer within five
business days. Once it is repaired, we'll ship
it back the same way in which it was
received. This paragraph does not neces-
sarily apply to non-warranty service.
Note: You must have a sales receipt from
an Authorized Mackie Dealer to qualify for
a warranty repair.
Input Gain Control Range
Mono Channels
Mic In:
Line In:
Stereo Channels
Line In:
Phantom Power
+48V DC
Equalization
Low Cut:
Mono Channel EQ:
High
Mid
Low
Stereo Channel EQ:
High
High Mid
Low Mid
Low
Graphic EQ (9 bands):
Q = 1.414, ISO octave centers
±15 dB @ 63, 125, 250, 500, 1k, 2k, 4k, 8k, 16k Hz
Mixer Rated Output
Main, Sub, Aux, & Efx:
Maximum Rated Output:
Maximum Input Levels
Mic Input: –28 dBu, Gain @ +50 dB
+18 dBu, Gain @ +6 dB
Line Input: –8 dBu, Gain @ +30 dB
+38 dBu, Gain @ –15 dB
Insert Input, Stereo Line Input, Tape Input, and
Effects Return: +20 dBu
BIG
+5 dB to +50 dB
–15 to +30 dB
–20 to +20 dB
100Hz, –18 dB/octave
±15 dB @ 12 kHz
±15 dB @ 100 Hz to 8 kHz
±15 dB @ 80 Hz
±15 dB @ 12 kHz
±15 dB @ 3 kHz
±15 dB @ 400 Hz
±15 dB @ 80 Hz
+4 dBu
+20 dBu
21
