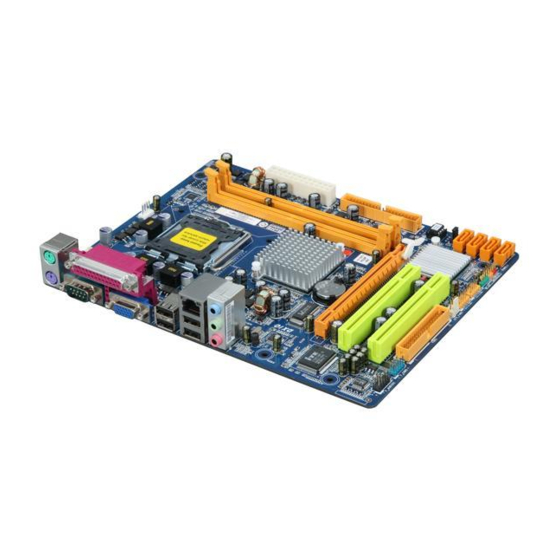

G41D-M7 BIOS M anual
BIOS Setup .................................................................................................1
1 Main Menu...............................................................................................3
2 Advanced Menu.......................................................................................7
3 PCIPnP Menu........................................................................................18
4 Boot Menu..............................................................................................22
5 Chipset Menu.........................................................................................25
6 Performance Menu...............................................................................30
7 Exit Menu...............................................................................................33
i
Advertisement
Table of Contents
Related Manuals for Biostar G41D-M7
Summary of Contents for Biostar G41D-M7
- Page 1 G41D-M7 BIOS M anual BIOS Setup ....................1 1 Main Menu....................3 2 Advanced Menu..................7 3 PCIPnP Menu..................18 4 Boot Menu....................22 5 Chipset Menu..................25 6 Performance Menu................30 7 Exit Menu....................33...
-
Page 2: Bios Setup
G41D-M7 BIOS M anual BIOS Setup Introduction T he purpose of this manual is to describe the settings in the AMI BIOS Setup program on this motherboard. The Setup program allows users to modify the basic system configuration and save these settings to CMOS RAM. T he power of CMOS RAM is supplied by a battery so that it retains the Setup information when the power is turned off. -
Page 3: Pci Bus Support
G41D-M7 BIOS M anual PCI Bus Support T his AMI BIOS also supports Version 2.3 of the Intel PCI (Peripheral Component Interconn ect) local bus speci fication. DRAM S upport DDR2 SDRAM (Double Data Rate II Synchronous DRAM) is supported. -
Page 4: System Memory
G41D-M7 BIOS M anual 1 Main Menu Once you enter AMI BIOS Setup Utility, the Main Menu will appear on the screen providing an overview of the basic system inform ation. BIOS SETU P U TILITY Main Advan ced PCIPnP... -
Page 5: Ata/Ide Configuration
G41D-M7 BIOS M anual Floppy A Select the type of floppy disk drive installed in your system. Options: 360K, 5.25 in / 1.2M, 5.25 in / 720K, 3.5 in / 1.44M, 3.5 in / 2.88M, 3.5 in / None IDE Configuration T he BIOS will automatically detect the presence of ID E/SAT A devices. - Page 6 G41D-M7 BIOS M anual SATA1/2/3/4 Dev ice; IDE Channel 1 Master/Slave BIOS SETU P U TILITY Main SATA1 Device Select the type of device connected Device to the system. Type [Aut o] LBA/Large Mode [Aut o] Block (Multi-S ector Transfer)[Aut o]...
-
Page 7: Hard Disk Write Protect
G41D-M7 BIOS M anual S.M.A.R.T Set the Smart Monitoring, Analysis, and Reporting T echnology. Options: Auto (Default) / Disabled / Enabled 32Bit Data Transfer Enable or disable 32-bit data transfer. Options: Enabled (Default) / Disabled Hard Disk Write Protect Disable or enable device write protection. T his will be effective only if the device is accessed through BIOS. -
Page 8: Advanced Menu
G41D-M7 BIOS M anual 2 Advanced Menu T he Advanced Menu allows you to configu re the settings of CPU, Super I/O, Power Management, and other system devices. Notice Beware of that setting inappropriate values in items of this menu may cause system to malfunction. - Page 9 G41D-M7 BIOS M anual Hardware Prefetcher T he processor has a hardw are prefetch er that automatically analy zes its requirements and prefetches dat a and instructions from the memory into the Level 2 cache that are likely to be required in the near future. T his reduces the latency associated with memory reads.
-
Page 10: Super Io Configuration
G41D-M7 BIOS M anual SuperIO Configuration BIOS S ETUP UTILITY Advanced Confi gure ITE8712 Super IO Chi pset Allo ws BIOS to E nable or D isable Flopp y Onboa rd Floppy Con troller [ Enabled] Cont roller Seria l Port1 Addre ss... - Page 11 G41D-M7 BIOS M anual Parallel Port Address T his item allows you to determine access onboard p arallel port controller with which I/O Address. Options: 378 (Default) / 278 / 3BC / Disabled Parallel Port Mode T his item allows you to determine how the parallel port should function.
-
Page 12: Mouse Poweron
G41D-M7 BIOS M anual Mouse PowerOn T his item allows you to control the mouse power on function. Options: Disabled (Default) / Enabled Restore on AC Power Loss T his setting specifies how your system should behave after a power fail or interrupts occurs. -
Page 13: Smart Fan Configuration
G41D-M7 BIOS M anual Shutdow n Temperature Function T his item allows you to set up the CPU shutdown T emperature. This item is only effective under Windows 98 ACPI mode. ℃ ℉ ℃ ℉ ℃ ℉ ℃ ℉ Options:... -
Page 14: Power Configuration
G41D-M7 BIOS M anual Fan Ctrl OFF(℃ ) If the CPU/System T emperature is lower than the set value, FAN will turn off. 0~127 (℃) (Interval: 1℃) Options: Fan Ctrl On(℃ ) CPU/System f an starts to work under smart fan function when arrive this set value. - Page 15 G41D-M7 BIOS M anual Suspend mode T he item allows you to select the suspend type under the ACPI operating system. Options: S1 (POS) (Default) Power on Suspend S3 (ST R) Suspend to RAM Auto POS+STR Repost Video on S3 Resume T he item allows you to determine whether to invoke VGA BIOS post on S3/ST R resume.
- Page 16 G41D-M7 BIOS M anual APIC ACPI SCI IRQ Options: Disabled (Default) / Enabled USB Dev ice Wakeup from S3/S4 T his item allows you to enable or disabled the USB resume from S3/S4 function. Options: Disabled (Default) / Enabled High Performance Event Timer T his item allows you to enable or disabled the HPET.
-
Page 17: Usb Configuration
G41D-M7 BIOS M anual RTC Alarm Time You can choose the system boot up time, input hour, minute and second to specify. USB Configuration T his item shows the USB controller and using USB device information. BIOS S ETUP UTILITY... - Page 18 G41D-M7 BIOS M anual USB Mass Storage Dev ice Configuration BIOS SETUP UTILITY Advanced USB Mass Storage Device Configuration Number of seconds POST waits for the USB Mass Storage Reset Delay [20 Sec] USB mass storage device after start Device # unit command.
-
Page 19: Pcipnp Menu
G41D-M7 BIOS M anual 3 PCIPnP Menu T his section describes con figuring the PCI bus system. PCI, or Personal Computer Interconn ect, is a system which allows I/O devices to operate at speeds nearing the speed o f the CPU itself uses when communicating with its own special components. -
Page 20: Pci Latency Timer
G41D-M7 BIOS M anual PCI Latency Timer T his item controls how long a PCI device can hold the PCI bus bef ore another takes over. T he longer the latency, the longer the PCI device can retain control of the bus before handing it over to another PCI device. -
Page 21: Reserved Memory Size
G41D-M7 BIOS M anual IRQ3/4/5/7/9/10/11/14/15 T hese items will allow you to assign each system interrupt a type, depending on the type of device using the interrupt. T he option “Available” means the IRQ is going to assign automatically. Options:... - Page 22 G41D-M7 BIOS M anual SB PCIE Ports Configuration BIOS SETU P U TILITY PCIPnP PCIE Ports Con figuration Options PCIE Port 0 [Aut o] PCIE Port 1 [Aut o] Auto PCIE Port 2 [Aut o] Enabled PCIE Port 3 [Aut o]...
-
Page 23: Boot Device Priority
G41D-M7 BIOS M anual 4 Boot Menu T his menu allows you to setup the system boot options. BIOS SETU P U TILITY Main Advan ced PCIPnP Boot Chipset Performance Exit Boot Settings Specifies the Boot Device Priority sequence. > Boot Device Priority >... -
Page 24: Cd/Dvd Drives
G41D-M7 BIOS M anual CD/DV D Drives T he BIOS will attempt to arrange the CD/DVD drive boot sequence automatically. You can also change the booting sequence. The number of device items that appears on the screen depends on the number of devices installed in the system. -
Page 25: Interrupt 19 Capture
G41D-M7 BIOS M anual Interrupt 19 Capture Interrupt 19 is the software interrupt that handles the boot disk function. When set to Enabled, this item allows the option ROMs to trap interrupt 19. Options: Disabled (Default) / Enabled BOOT SUCCESS BEEP When this item is set to Enabled, BIOS will let user know boot success with beep. -
Page 26: Chipset Menu
G41D-M7 BIOS M anual 5 Chipset Menu T his submenu allows you to configure the speci fic features of the chipset installed on your system. T his chipset manage bus speeds and access to system memory resources, such as DRAM. It also coordinates communications with the PCI bus. -
Page 27: North Bridge Configuration
G41D-M7 BIOS M anual North Bridge Configuration BIOS S ETUP UTILITY Chips et North Bridge Chips et Configura tion ENAB LE: Allow rema pping of Memor y Remap Featu re [Enabled] over lapped PCI m emory PCI MMIO Allocat ion:... -
Page 28: Video Function Configuration
G41D-M7 BIOS M anual PEG Port T his BIOS feature is a toggle that enables or disables the PCI Express port. Options: Auto (Default) / Disabled Video Function Configuration BIOS S ETUP UTILITY Chips et Video Function Con figuration Options... -
Page 29: South Bridge Configuration
G41D-M7 BIOS M anual South Bridge Configuration BIOS SETU P U TILITY Chipset South Bridge C hipset Configuratio n Options USB Functions [8 USB Ports] Disabled USB 2.0 Contro ller [E nabled] 2 USB Ports Audio Controll er [A zalia]... -
Page 30: Onboard Lan Boot Rom
G41D-M7 BIOS M anual Onboard Lan Boot Rom T his item allows you to select the Onboard LAN Boot ROM. Options: Disabled (Default) / Enabled MAC ID Information T his item shows the LAN MAC ID. SMBUS Controller T his BIOS feature controls the I/O buffers fo r the SMBus. -
Page 31: Performance Menu
G41D-M7 BIOS M anual 6 Performance Menu T his submenu allows you to change voltage and clock of various devices. (Howev er, we suggest you use the default setting. Changing the voltage and clock improperly may damage the device.) Notice Beware of that setting inappropriate values in items of this menu may cause system to malfunction. -
Page 32: Cpu Voltage
G41D-M7 BIOS M anual CPU Voltage T his item allows you to select CPU Voltage Control. Options: Default (Default) / +5% / +10% / +15% FS B Voltage T his item allows you to select FSB Voltage Control. Options: Default (Default) / +0.1V / +0.2V / +0.3V Chipset Voltage T his item allows you to select Chipset Voltage Control. - Page 33 G41D-M7 BIOS M anual DRAM tWR Options: 3 (Default) / 3 ~ 15 DRAM tRFC Options: 15 (Default) / 15 ~ 78 DRAM tWTR Options: 2 (Default) / 2 ~ 15 DRAM tRRD Options: 2 (Default) / 2 ~ 15...
-
Page 34: Save Changes And Exit
G41D-M7 BIOS M anual 7 Exit Menu T his menu allows you to load the optimal default settings, and save or discard the changes to the BIOS items. BIOS SETU P U TILITY Main Advan ced PCIPnP Boot Chipset Performance... -
Page 35: Change Supervisor Password
G41D-M7 BIOS M anual Security T his sub-menu allows you to provide/revise supervisor and user password. BIOS SETU P U TILITY Exit Security Setti ngs Install or Change the password. Supervisor Pas sword :Not Installe d User Password :Not Installe d... - Page 36 G41D-M7 BIOS M anual Passw ord Check T his item is for setting the timing that checking password. Options: Setup (Default) / Always Boot Sector Virus Protection T his option allows you to choose the VIRUS Warning feature that is used to protect the IDE H ard Disk boot sector.
