YORKVILLE NX720S Owner's Manual
720 watt active subwoofer enclosure
Hide thumbs
Also See for NX720S:
- Service manual (17 pages) ,
- Specifications (1 page) ,
- Service manual (10 pages)
Related Manuals for YORKVILLE NX720S
Summary of Contents for YORKVILLE NX720S

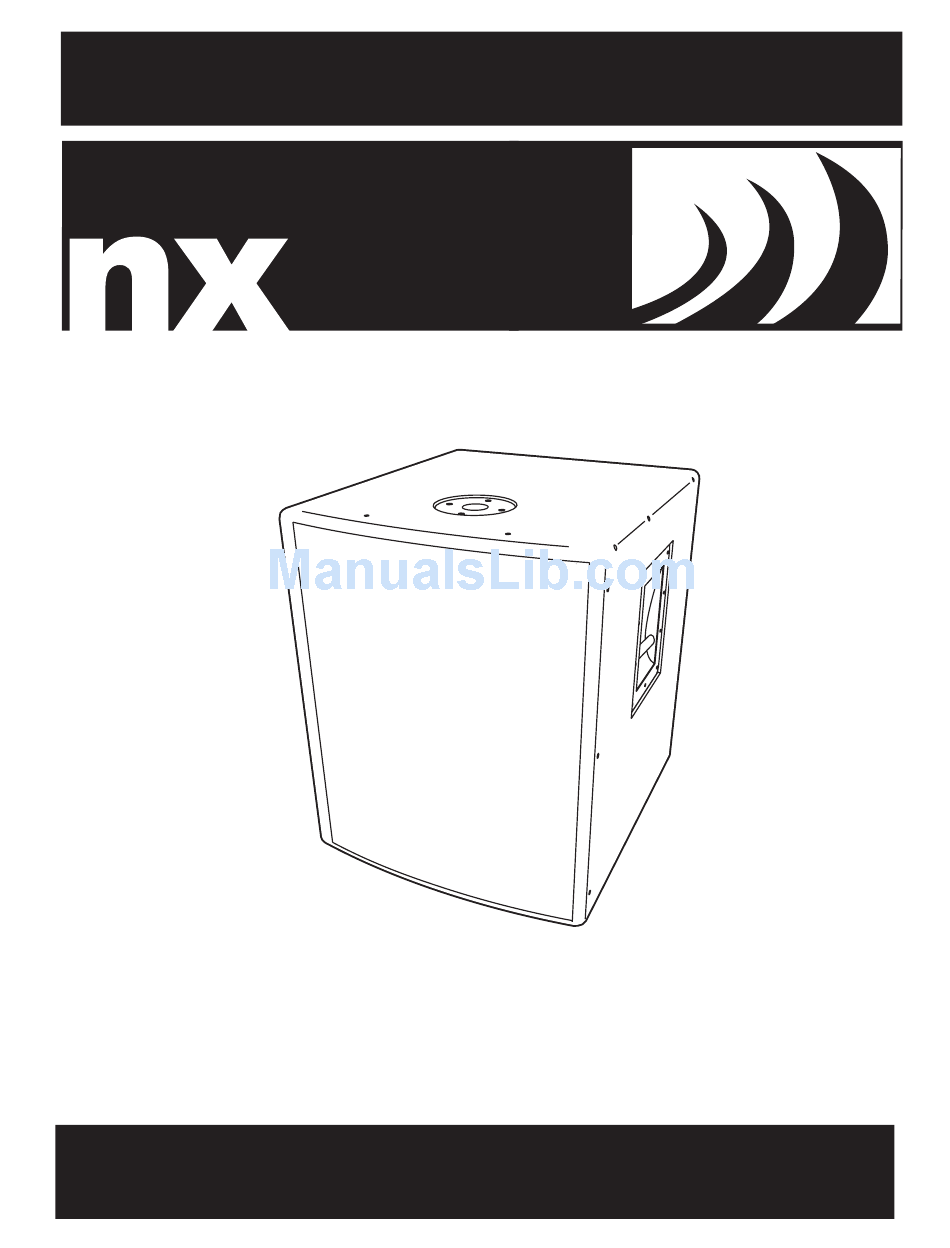

- Page 1 7 2 0 WAT T A C T I V E S U B W O O F E R E N C L O S U R E MODEL TYPE: YS1055 OWNER'S MANUAL MANUEL de L'UTILISATEUR Manual-Owners-nx720s-00-1v5.pdf...
-
Page 2: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS This lightning flash with arrowhead symbol, The exclamation point within an equilatereal within an equilateral triangle, is intended to alert triangle is intended to alert the user to the the user to the presence of uninsulated presence of important operating and “dangerous voltage”... -
Page 3: Input Level Switch
It’s been designed as an easy-to-setup addition to any P .A. and will extend the bass of a typical sound system with the least amount of complication. Note: The NX720S is primarily intended to operate with line-level signals, but will also work with speaker level signals. - Page 4 Do not increase the setting while operating at high levels. Note: The NX720S’ built-in stand mounting adapter can be used with the Yorkville SW-Teletube accessory to support our E160 cabinets. The support tube can be adjusted up to its full 5-foot 4-inch extension safely as long as the NX720S is NOT inclined more that 10°...
- Page 5 VIA Q19 WOOFER BLOCK-DIAG-NX720S-00-1v0.ai STEREO PASSIVE SPEAKER CONFIGURATION STEREO ACTIVE SPEAKER CONFIGURATION INPUT Switch set to SPKR INPUT Switch set to LINE NX720S #1 NX720S #2 NX720S MIXER STEREO ACTIVE SPEAKER CONFIGURATION INPUT Switch set to LINE NX720S #1 NX720S #2...
-
Page 6: Specifications
7 2 0 WAT T A C T I V E S U B W O O F E R E N C L O S U R E Specifications System Type Powered Subwoofer Active or Passive Active Program Power (Watts) Max SPL (dB) Frequency Response (Hz +/- 3db) 40-150... - Page 7 Introduction Félicitations pour votre achat de la NX720S. Le NX720S est un amplificateur de puissance avec subwoofer intégré de qualité supérieure. Elle a été conçu pour permettre l’addition facile d’un subwoofer amplifié à n'importe quel système de sonorisation et étendra la gamme des fréquences graves d'un système de son typique avec le moins de complication possible.
- Page 8 Notez Bien: L’adapteur de support NX720S peut être utilisé avec l’assessoire Yorkville SW-Teletube pour supporter les enceintes E160. Le tube de support peut être ajusté à sa pleine extention 5’ 4” avec sécurité guand le NX720S est incliné à moin de 10° par rapport à l’horizontale.
- Page 9 BLOCK-DIAG-NX720S-00-1v0.ai CONFIGURATION AVEC HAUT-PARLEUR PASSIF STÉRÉO CONFIGURATION AVEC HAUT-PARLEUR ACTIF STÉRÉO Commutateur d'ENTRÉE réglé à la position "SPKR" Commutateur d'ENTRÉE réglé à la position "LINE" NX720S #1 NX720S #2 NX720S MIXER CONFIGURATION AVEC HAUT-PARLEUR ACTIF STÉRÉO Commutateur d'ENTRÉE réglé à la position "LINE"...
- Page 10 7 2 0 WAT T A C T I V E S U B W O O F E R E N C L O S U R E Spécifications Type de Système Subwoofer Amplifié Actif ou Passif Actif Puissance Nominale (Watts) SPL Max (dB) 40-150 Réponse en Fréquences (Hz +/- 3db)
- Page 11 Unlimited Warranty Yorkville's two and ten-year unlimited warranty on this product is transferable and does not require registration with Yorkville Sound or your dealer. If this product should fail for any reason within two years of the original purchase date (ten years for the wooden enclosure), simply return it to your Yorkville dealer with original proof of purchase and it will be repaired free of charge.
- Page 12 WORLD HEADQUARTERS CANADA U.S.A. Yorkville Sound Yorkville Sound Inc. 550 Granite Court 4625 Witmer Industrial Estate Pickering, Ontario Niagara Falls, New York L1W-3Y8 CANADA 14305 USA Voice: (905) 837-8481 Voice: (716) 297-2920 Fax: (905) 837-8746 Fax: (716) 297-3689...
