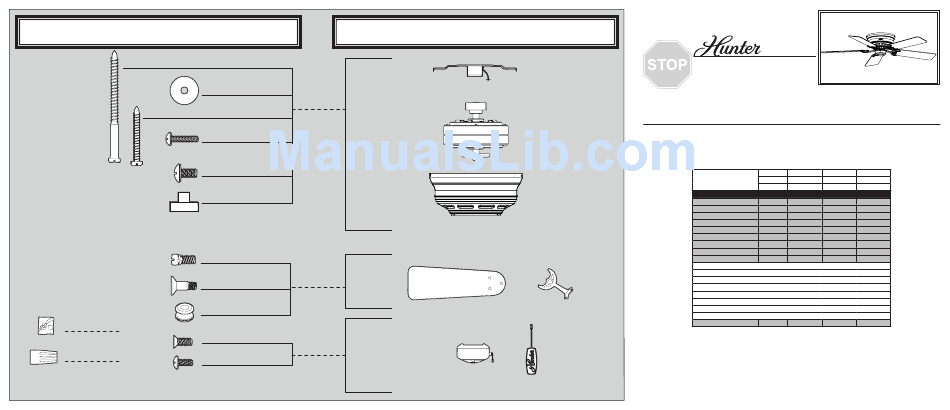

Hunter 20803 Parts Manual

Hardware
(Drawn to Scale)
x 2
x 4
x 2
x 2
x 4
x 4
x 11
x 16
x 16
Balancing
x 1
Kit
x 3
Wire
x 4
Connector
x 3
3" Wood Screw
Flat Washer
Hanger
1.5" Wood Screw
Bracket
Assembly
Locking Screw
Canopy Screw
Mounting Isolator
Screw, Blade
Iron Armature
Screw, Blade
Blade
Assembly
Assembly
Blade
Grommet
Screw, Switch
Housing Assembly
Switch
Housing
Screw,
Assembly
Machine, 6-32
Fan Parts
(Not Drawn to Scale)
PARTS GUIDE
PARTS GUIDE
Using this Parts Guide, make sure all
parts are included in the box.
If parts are missing, DO NOT RETURN
THIS ITEM TO THE STORE, call 888-830-1326 for assistance.
THIS PARTS GUIDE IS FOR REFERENCE ONLY.
REFER TO THE INSTALLATION MANUAL FOR FULL ASSEMBLY INSTRUCTIONS.
Model # 20806

Parts List

Asm. Dwg. # 94314-02
Finish Bright Brass
Item Name Qnty Part #
Switch / Housing Assembly 1 G1669-01
Blade Iron Set 1 99631-05
Blade Set 1 G0677-06
Screw, Blade Iron Armature 11 63755-05
Motor Cover 1 92511-03
Hanger Bracket Assembly 1 73846-01
Pull Chain Extension 1 63756-42
Pull Chain Pendant 1 G0090-01
* Hardware Kit 1 94314-00-861
Wood Screw
Wood Screw
Blade Grommet
Screw, Blade Assembly
Flat Washer
Screw, Machine, 6-32
Wire Nut
Mounting Isolator
Balancing Kit 1 65666-01
Hunter Fan Company • 7130 Goodlett Farms Pkwy. #400 • Memphis, TN 38016 • www.hunterfan.com • 98000-01-357 04-13-2011 •
20803 20807
94314-03 94314-04
White Antique Pewter
Part # Part #
G1669-03 G1669-14
99631-05 99631-05
G0677-07 G0677-05
63755-05 63755-05
92511-03 92511-03
73846-01 73846-01
63756-42 63756-42
G0090-01 G0090-01
94314-00-862 94314-00-863
65666-01 65666-01
