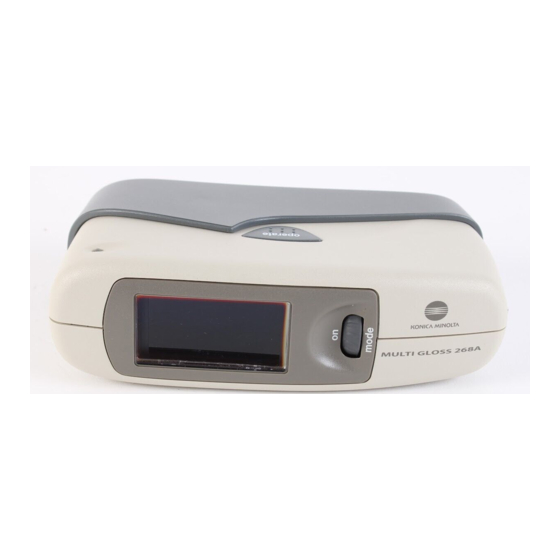

Minolta MULTI GLOSS 268 Brochure

Large screen size and easily viewable liquid
crystal display.
Easy operation with mode scroll wheel.
By operating the mode scroll wheel in accordance with
easy-to-understand menu items, you can set a wide
array of functions easily.
A wide array of display modes
(corresponding to six languages)
You can measure by selecting Basic
mode, Continuous, Statistics from
the Mode screen.
You can select the measurement
angle from the Geometry selection
screen and display two angles or
three angles at the same time.
(MULTI GLOSS 268)
MULTI GLOSS 268
UNI GLOSS 60
You can select Mode,
Geometry selection,
Difference,
and Calibration
from the Main Menu screen.
• It has data compatibility
with the previous MULTI
GLOSS 268 / UNI GLOSS 60,
and improves repeatability
and reproducibility.
• Approx. 10,000 measure-
ments are available with one
AA ( R6 ) size alkaline battery.
Wide measurement range that can be
measured from plastic to metal surface
with a high gloss finish : 0.0~ 2,000 GU
(in the case of 20˚)
The gloss difference measurement of the
standard/sample and the PASS/FAIL evaluation.
You can make a pass/fail evaluation by setting the limit value.
You can enter the sample name and the standard value name in
the measurement result.
PASS/FAIL
Geometric selection selected two angles.
( MULTI GLOSS 268 )
Autodiagnosis function of calibration
This means a little frequency of calibration and long-term stability.
In addition, if the calibration is required, the message will be
displayed.
Calibrating standard
(20˚, 60˚, 85˚)
(60˚)
Sample name
Standard value name
Geometric selection selected three angles.
( MULTI GLOSS 268 )
Protective holder
