Summary of Contents for Jensen JE1908

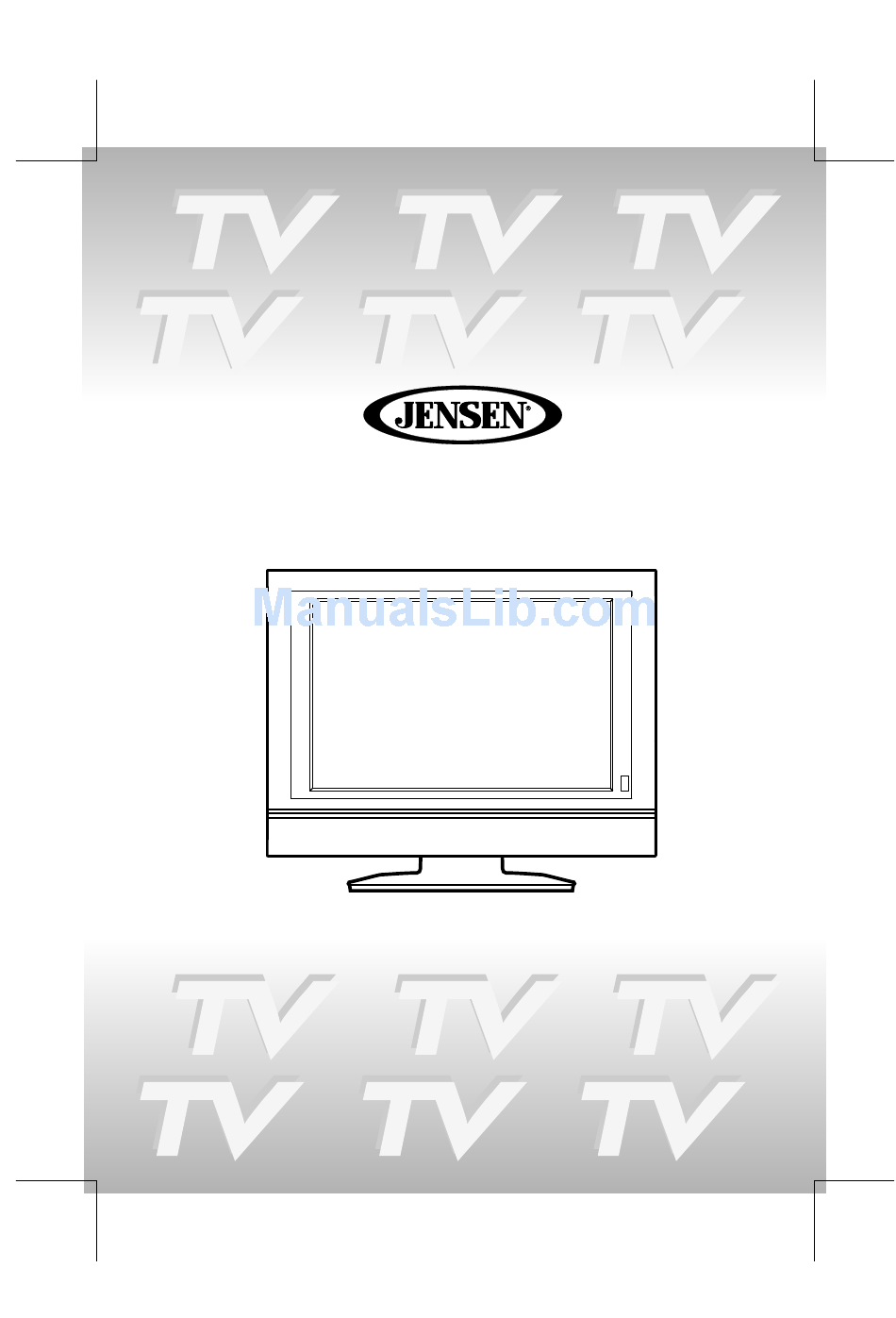

- Page 1 JE1908 19” HD FLAT PANEL LCD TV OWNER'S MANUAL...
-
Page 2: Safety Precautions
SAFETY PRECAUTIONS WARNING: TO REDUCE THE RISK OF ELECTRIC CAUTION SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER RISK OF ELECTRIC SHOCK DO NOT OPEN SERVICING TO QUALIFIED PERSONNEL. WARNING: TO PREVENT FIRE OR SHOCK RISQUE DE CHOC ÉLECTRIQUE NE AVIS PAS OUVRIR HAZARD, DO NOT EXPOSE THIS UNIT TO RAIN... -
Page 3: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS 1. Read these instructions. 13. Unplug this apparatus during lightning storms or when unused 2. Keep these instructions. for long periods of time. 3. Heed all warnings. 14. Refer all servicing to qualified 4. Follow all instructions. service personnel. -
Page 4: Table Of Contents
TABLE OF CONTENTS SAFETY PRECAUTIONS ..................2 IMPORTANT SAFETY INSTRUCTIONS ............... 3 REMOTE CONTROL ................... 5 ACCESSORIES ..................... 5 REMOTE CONTROL REFERENCE GUIDE ............6 UNIT REFERENCE GUIDE ................. 7 CONNECTIONS ..................8 – 13 Connecting a TV Antenna/Cable/Satellite ............8 Connecting an Audio Amplifier ................. -
Page 5: Remote Control
REMOTE CONTROL USING THE REMOTE CONTROL • Point the remote control at the REMOTE SENSOR located on the unit. • When using this unit in very bright light, the infrared REMOTE CONTROL SENSOR may not work properly. • The recommended effective distance for using the remote control is about 16 feet (5 meters). TO CHANGE THE REMOTE CONTROL BATTERY 1. -
Page 6: Remote Control Reference Guide
REMOTE CONTROL REFERENCE GUIDE EXIT Button Press to return to previous menu or exit the menu and return directly to normal viewing. CURSOR ( ) Buttons Press to highlight selections on a menu screen and adjust certain settings. ENTER Button Press to confirm selections on a menu screen. -
Page 7: Unit Reference Guide
UNIT REFERENCE GUIDE 1) Color LCD Screen 2) STANDBY Indicator Indicates whether the unit is ON or in STANDBY (OFF) mode. Light On: The unit is in STANDBY. Light Off: The unit is turned ON. REMOTE CONTROL SENSOR Do not block this sensor or remote control will not work. -
Page 8: Connections
CONNECTIONS CONNECTING A TV ANTENNA/CABLE/SATELLITE To view television channels correctly, a signal must be received from one of the following sources: - An indoor or outdoor aerial antenna - A cable system - A satellite system Connecting a Digital Antenna The tuner in this TV receives ATSC TV signals from an antenna. -
Page 9: Connecting An A/V Device (Vcr, Pvr Camcorder, Game System, Etc.)
CONNECTIONS CONNECTING TO A/V DEVICES (VCR, PVR, Camcorder, Game System, etc.) Connecting to Devices with an S-Video Output To connect to A/V devices such as a VCR or camcorder: - Connect to a VCR Connect the right (red) and left (white) audio output from the VCR to the right (red) and left (white) input on this unit (Audio cable not included). - Page 10 CONNECTIONS Connecting to Devices with a Composite (yellow RCA-type) Video Output To connect to A/V devices such as a VCR or camcorder: - Connect to a VCR Connect the right (red) and left (white) audio output from the VCR to the right (red) and left (white) input on this unit (Audio cable not included).
- Page 11 CONNECTIONS Connecting to Devices with a Composite (yellow RCA-type) Video Input To connect to A/V devices such as a VCR, PVR or camcorder: - Connect to a VCR/PVR Connect the right (red) and left (white) audio input from the VCR/PVR to the right (red) and left (white) output on this unit (Audio cable not included).
-
Page 12: Connecting A High-Definition (Hd) Source
CONNECTIONS CONNECTING A HIGH-DEFINITION (HD) SOURCE High-Definition (HD) Devices with component video output must be connected to the YUV input. Connect the three video outputs (Y, Pb, Pr) from the source to the corresponding video inputs on this unit (Component video cable not included). Connect the right (red) and left (white) audio output from the source to the right (red) and left (white) input on this unit (Audio cable not included). -
Page 13: Power Supply
POWER SUPPLY USING THE CAR POWER ADAPTER The car power adapter allows the unit to be used with vehicles that have a 12V, negative ground electrical system. Cautions: • Use the provided car power adapter only. Use with other car power adapters could damage the unit. •... -
Page 14: Installation
INSTALLATION REMOVING THE BASE STAND WARNING: The LCD Display is very fragile, and must be protected at all times when removing the base stand. Be sure that no hard or sharp, or anything that could scratch or damage the LCD display, come in contact with it. -
Page 15: Using Headphones
USING HEADPHONES • Turn down the volume before connecting headphones to the unit, then adjust the volume to your desired level. • When headphones are connected, no sound will come from the front speakers. Note: • Avoid listening to sound at high levels for prolonged periods of time. This may be harmful to you and may cause hearing loss. -
Page 16: Tv Setup
TV SETUP VIDEO MENU 1. Press the MENU button. 2. Press the ENTER or button to select Video. 3. Use the button to select the options (Picture Mode, Brightness, Contrast, Saturation, Tint, Sharpness or Color Temperature). Adjust them using the button (The screen will change to your desired setting);... -
Page 17: Vga Settings In Pc Mode
TV SETUP VGA Settings in PC Mode Use the button to select the options Video Auto Adjust (Auto Adjust, H. Position, V. Position, Phase or H. Position Audio V. Position Clock). Adjust them using the button. The Phase Setup screen will change to your desired setting. (Press Clock the ENTER or button to confirm Auto Adjust.) -
Page 18: Tv Menu
TV SETUP TV MENU (For TV Mode Only) 1. Press the MENU button. Video Tuner Mode Cable Auto Scan 2. Use the button to select TV. Press the Audio Auto Scan Add CH ENTER or button to go into the TV settings. Channel Skip 3. -
Page 19: Time Setup Setting
TV SETUP TV MODE AV / YUV MODE Video OSD Language English Video OSD Language English Time Setup Time Setup Audio Audio Caption Caption Restore setting Restore setting Setup Setup Parental Parental Setup Select EXIT Exit Setup Select EXIT Exit PC MODE •... -
Page 20: Caption Setting
TV SETUP Caption Setting: Video Video Analog Closed Caption Caption Style As Broadcaster Digital Closed Caption Font Size Small Audio Audio Font Style Style 1 Digital Caption Style Font Color Green Font Opacity Solid Setup Setup Background Color Black Background Opacity Translucent Parental Parental... -
Page 21: Parental Control Setting
TV SETUP Parental Control Setting: 4. Use the button to select various Parental settings. Press the ENTER or button to go into the detailed settings. 5. Use the buttons to move among the rating levels. Press the ENTER button to change the mode between Blocked and Allowed. -
Page 22: Trouble Shooting Guide
TROUBLE SHOOTING GUIDE SYMPTOM CAUSE (AND REMEDY) No power. • Check that the AC power adapter is connected. • Turn on the unit. • Remove any obstacles between the remote and the unit. The remote does not • Use the remote near the unit. function. - Page 23 Unit : INCH 4 1/2 7 3/8 8 1/2 12 1/2 PLV36190CS1_IB_ENG_JEN.pmd 09/07/2007, 18:16...
- Page 24 811-361991Wxxx PLV36190CS1_IB_ENG_JEN.pmd 09/07/2007, 18:16...
