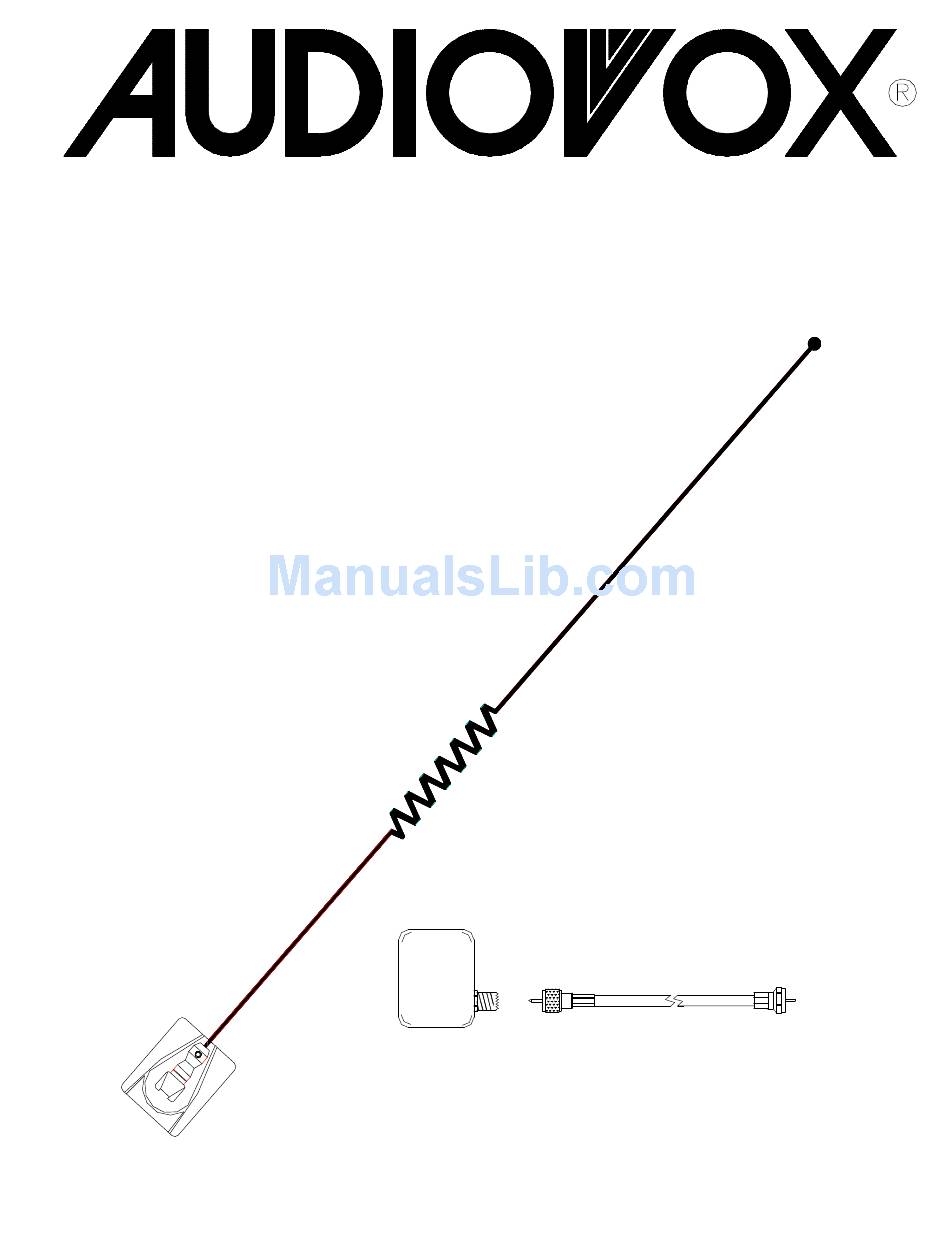

- Page 1 GLASS MOUNT MOBILE TELEVISION ANTENNA AN-200 Instruction Manual Audiovox Specialized Applications, LLC 23319 Cooper Dr. Elkhart, IN 46514 219-264-3135 www.asaelectronics.com Page 1 of 5 P/N 8005055 Rev. D 12/00...
- Page 2 Contents: AN200 Antenna AN200 Antenna Pick-up Coaxial cable Cleaning Packet 4 Cable Clips 3 Antenna Mast Clips Allen Wrench Super Glue Double Coated Acrylic Foam Tape: Bond strength is dependent upon the amount of adhesive-to-surface contact developed. Firm application pressure develops better contact and helps improve bond strength. Good surface contact can be attained by applying enough pressure to ensure that the tape experiences approximately 15 psi.
-
Page 3: Antenna Mounting Instructions
Antenna Mounting Instructions: Mount AN-200 horizontally on non-tinted window Clean outside of window where antenna is to be mounted with included cleaning packet. Window should be free from moisture, dirt and oil. Peel adhesive backing from antenna mast and place antenna carefully against surface of window. The three provided mast clips should be snapped onto the mast. - Page 4 Pickup Mounting Instructions: Clean inside of window with remaining cleaning packet. Window should be free from moisture, dirt and oil. Peel adhesive backing from pickup and place pickup directly over base of antenna mast. Attach cable to pickup and to the television antenna input. Due to the nature of TV signals, vehicle motion, direction the vehicle is facing, distance from the TV transmitter, nearby surroundings and weather may adversely effect TV reception.
-
Page 5: Accessory List
HP375 Unlike household electronics, all of our products have been specifically designed and tested for the mobile environment and are only available through ASA. To order any of these products, please contact Audiovox Specialized Applications at www.asaelectronics.com or 800-688-3135. Page 5 of 5 P/N 8005055 Rev.
