OWNER'S MANUAL
VIDEO CASSETTE RECORDER
MCV604

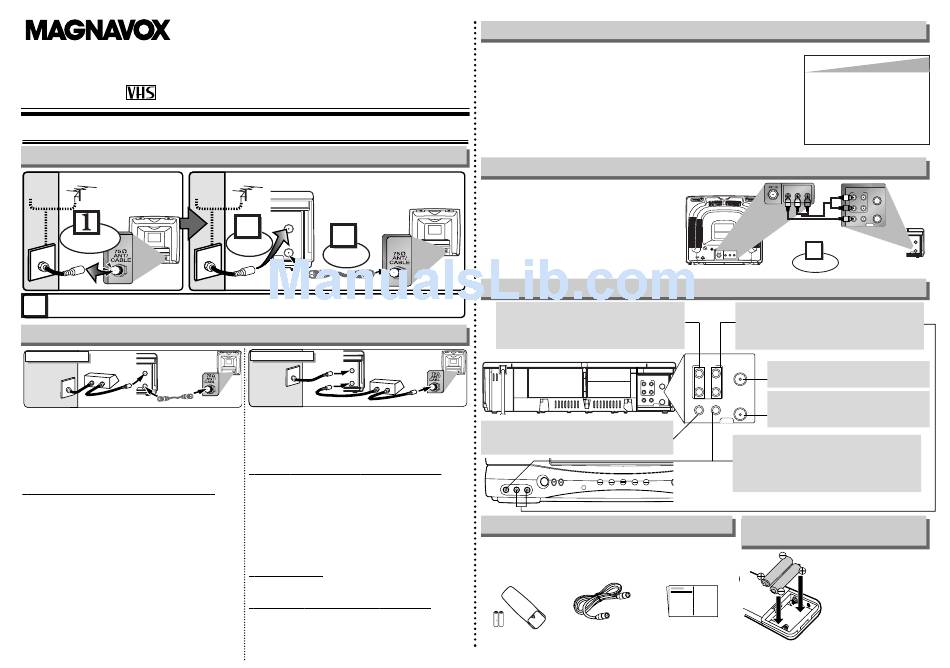

1. Before using your VCR
Basic VCR/TV Connection
Antenna
Cable Cable
Signal Signal
or
(Back of TV)
Disconnect
4
Plug the AC power cords of the VCR and TV into the AC outlets.
Hint for Cable Box or Satellite Box
Connection A
(Back of VCR)
(Cable box or
ANT
Satellite box)
IN
IN
OUT
OUT
RF Cable
Cable
(supplied)
Signal
(Back of TV)
Select this connection when you want to view or record a
scrambled channel.
• With this connection, channels cannot be changed on the
VCR. You can view or record ONLY the channels you have
selected on the cable box or the satellite box.
• While you are recording, only the recorded channel can
be viewed.
To select channels of the cable box or satellite box
1)Turn on the VCR by pressing the POWER button, and
then, press the VCR/TV button.The POWER and the
VCR/TV indicators on the front panel will light on. Then,
press the CHANNEL buttons to select channel 3 or 4
(the same channel as the output channel of the cable
box or satellite box).
• If you use the channel 4, you need to change the VCR's
RF output to channel 4. Refer to "RF Output Channel".
2) At the TV, select channel 3 or 4 (the same channel as
you have selected at step 1).
3) At the cable box or satellite box, select the channel you
want to view or record.
Antenna
(Back of VCR)
or
ANT
2
IN
3
Connect
OUT
Connect
RF Cable
(supplied)
(Back of VCR)
Connection B
ANT
(Cable box or
IN
Satellite box)
Cable
OUT
E
IN
Signal OUT
RF Cable
(supplied)
Select this connection when you want to change channels
on the VCR. With this connection, you may watch one
channel while recording another.
• You may not view or record a scrambled channel.
To select channels of the cable box or satellite box
1)At the cable box or satellite box, select channel 3 or 4
(the same channel as the VCR's RF output channel.)
• Refer to "RF Output Channel".
2)At the TV, select the same channel as the output chan-
nel (3 or 4) of the cable box or satellite box.
3)Turn on the VCR by pressing the POWER button, and
then, press the VCR/TV button .The POWER and
VCR/TV indicators on the front panel will light on. Then,
select the channel you want to view or record.
To play back a tape
Follow the steps 1) to 2) above. Then, play back a tape.
• Refer to "Playback" on page 5.
To view one channel while recording another
1)While you are recording on the VCR, press the VCR/TV but-
ton so that the VCR/TV indicator disappears on the VCR.
2)At the cable box or satellite box, select the channel you
want to view.
RF Output Channel
If channel 3 is already occupied for broadcasting,
1) Set your TV to channel 4.
2) Insert a pre-recorded tape into the VCR.
3) Press the PLAY button once.
4) After a few seconds, press the PLAY button on the VCR for 3 seconds.
• The RF output channel will change to channel 4 from channel 3 and you
will see a playback picture.
• When a picture does not appear on the TV screen, repeat step [4].
5) Press the STOP button to stop playback.
Stereo TV Connection
You can use the AUDIO OUT jacks and
(Back of TV)
VIDEO OUT jack on the back of the
VCR if your TV has Audio/Video Input
jacks. In this case, you need to set the
TV to external Line Input Mode. Please
refer to your TV's owner's manual.
Front & Rear Terminals
AUDIO OUT jacks
Connect the audio cables to the audio in
jacks of a camcorder, another VCR, a stereo
amplifier, or an audio system.
E
(Back of TV)
RF Cable
VIDEO OUT jack
Connect the video cable to the video in jack
of a camcorder, another VCR, or a TV.
POWER
CHANNEL
VIDEO L-AUDIO-R
Supplied Accessory
• Remote control • RF Cable
(NA871UD) with
Two AA batteries
- 1 -
VIDEO AUDIO OUT
OUT
L R
(Back of TV)
AUDIO IN jacks
Connect the audio cables from the audio
out jacks of a camcorder, another VCR, or
an audio source.
ANT
AUDIO
IN
L
ANT
AUDIO
IN OUT IN
L
OUT IN
R
R
VIDEO OUT
VIDEO
OUT
OUT IN
OUT IN
VIDEO IN jack
Connect the video cable from the video out
jack of a camcorder, another VCR, or an
audio-visual source (laser disc player,
ME
video disc player, etc.).
POWER VCR/TV TAPE IN TIMER REC
Installing the Batteries for
the Remote Control
• Owner's Manual
(WPZ0901TM002) (0VMN04127)
Printed in China
Hint Hint
• The RF output channel may not
change when you adjust track-
ing during playback. In this case,
stop the playback, and start the
playback again. After that, press
the PLAY button on the VCR for
3 seconds again.
VIDEO AUDIO IN
IN
L R ANT
AUDIO
IN
L
OUT IN
R
OUT
VIDEO
OUT IN
Audio/Video Cables
(not supplied)
ANT
IN
1
OUT
Connect
(Back of VCR)
ANT IN jack
Connect your antenna or cable box.
ANT OUT jack
Connect the RF cable (supplied) to
the antenna input jack on your TV.
Install two AA batteries
(supplied) matching the
polarity indicated on
the bottom of the
remote control.
