OVERVIEW

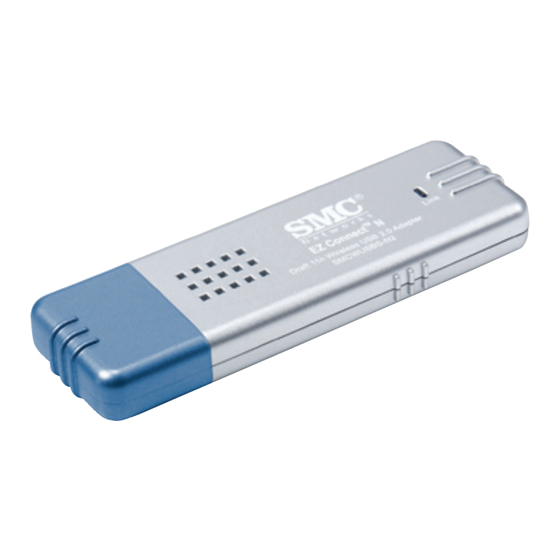

The EZ Connect™ N Wireless USB2.0 Adapter (SMCWUSBS-N2) enables Wireless-N connectivity to your
desktop or notebook computer and provides improved throughput and range than existing 802.11g technolo-
gy. Upgrading to Wireless-N is an excellent solution for browsing the Internet and sharing files such as video,
music and photos. The SMCWUSBS-N2 is Wi-Fi CERTIFIED™ for full compliance with the 802.11n standard, as
well as the popular Wireless-G (802.11g) and Wireless-B (802.11b) standards. This next generation standard
utilizes advanced MIMO (Multiple-In, Multiple-Out) technology to deliver incredible speed and range. With
security being a key consideration, the latest WPA and WPA2 wireless encryption standards are supported,
which prevent unauthorized access to wireless networks and ensure data is secure. Wireless security can
also be set up easily using Wi-Fi Protected Setup™ (WPS) that enables push button or PIN configuration.
Finally the SMCWUSBS-N2 includes an easy installation wizard which guides you step-by-step through the
install process. Once installed the WLAN utility allows you to scan for available wireless networks and man-
age multiple network profiles so connecting becomes instantaneous.
KEY FEATURES
New Wireless-N (802.11n ) technology
Delivers improved speed and range than existing 802.11g technol-
ogy while maintaining full backwards compatibility with older Wire-
less-G (802.11g) and Wireless-B (802.11b) standard products.
WPA/WPA2 Encryption
Prevents unauthorized access to your wireless network and in-
sures your data is secure.
APPLICATION DIAGRAM
LEGEND
10G FIBER
1G FIBER
10G COPPER
1G COPPER
10/100
PoE
WIRELESS
LEGEND
10G FIBER
1G FIBER
10G COPPER
1G COPPER
10/100
PoE
PHONE CABLES
WIRELESS
SMCWUSBS-N2
Wireless N USB2.0 Adapter
Wi-Fi Protected Set-up™ (WPS)
Makes wireless security setup easy with push button or PIN con-
figuration.
Installation Wizard
Easy software installation with step-by-step guidance.
