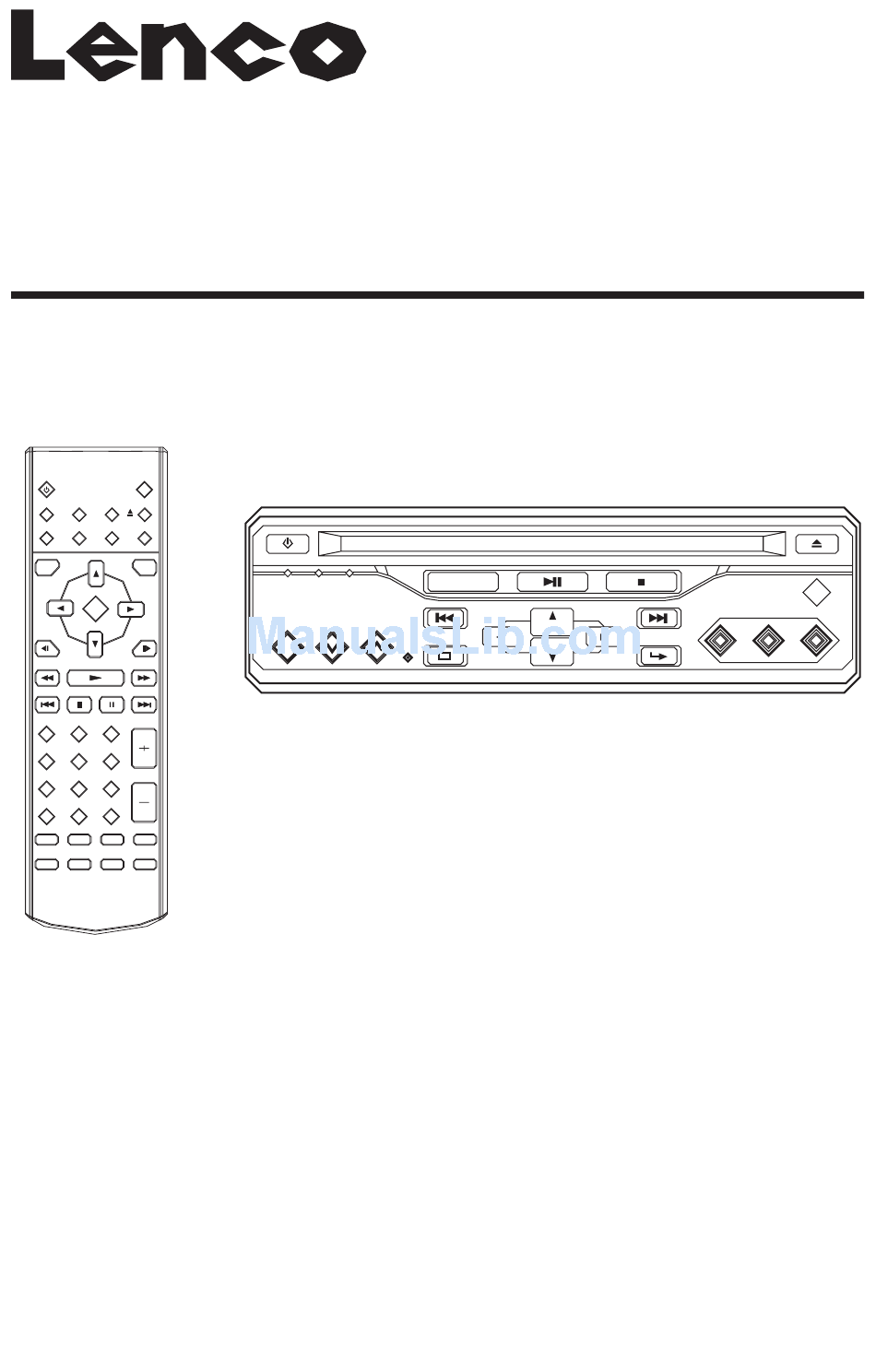

- Page 1 DVD205 OWNER’S MANUAL Mobile Video System • Digital Audio Out-Coaxial • Multi-subtitle Languages Function • Multi-audio Languages Function • Multi-angle Function • Parental Control • Remote Control...
- Page 2 Use Authorized Service Centres FEATURES Do not attempt to disassemble or adjust this precision product. Please refer to Compatible with PAL DVD (Video the Service Centre list included with this CD) and NTSC DVD (Video CD) product for service assistance. This player can play discs recorded in either PAL or NTSC format.
-
Page 3: Table Of Contents
CONTENTS Safety Information ..................4 Disc Notes .....................5 The Player ......................6 Front View .......................6 Back View .......................7 Installation .....................8 Electric Connection ..................9 Remote Control...................10 Location and Function of Keys................10 Preparing the Remote Control ................12 Loading a Disc ......................12 Ejecting a Disc ......................13 Operation .....................13 Basic Play ......................13 On-Screen Display Function.................15... -
Page 4: Safety Information
SAFETY INFORMATION CAUTION: Region Management Information MOBILE DVD PLAYER IS A CLASS I Region Management Information: LASER PRODUCT. HOWEVER THIS This Mobile DVD Player is designed and MOBILE DVD PLAYER USES A manufactured to respond to the Region VISIBLE/INVISIBLE LASER BEAM Management Information that is recorded WHICH COULD CAUSE HAZARDOUS on a DVD disc. -
Page 5: Disc Notes
DISC NOTES Disc formats supported by this player Note these scratches are not an indication of any problem with the player. 12 cm disc Label side up (Single-sided disc only) Video CD 12 cm disc Do not touch the underside 12 cm disc of the disc 12 cm disc... -
Page 6: The Player
THE PLAYER FRONT VIEW 16 17 POWER ( 12. VOLUME EJECT ( cursor buttons SETUP 14. ENTER 15. Indicator Light for DVD SOURCE 14. Indicator Light for AV INPUT 1 Disc Slot 15. Indicator Light for AV INPUT 2 PLAY/PAUSE ( 16. -
Page 7: Back View
THE PLAYER BACK VIEW 23. VIDEO 2 INPUT 28. VEDIO 1 OUTPUT 24. AUDIO 2 L INPUT 29. VEDIO 2 OUTPUT 25. AUDIO 2 R INPUT 30. 14IN SOCKET 26. REMOTE Socket 31. SUB. WOOFER OUTPUT 27. DIGITAL AUDIO GB-7... -
Page 8: Installation
INSTALLATION SCREW M5X25 SCREW LOCKED THE UNIT CORE SCREW SCREW M4X5 M4X5 FIG.2 NOTE: 1. First remove the two screws that locket the unit core, then attach the brackets on both sides of unit with screws (M4x5), last install the unit with screws (M5x25). 3. -
Page 9: Electric Connection
ELECTRIC CONNECTION DC 12V IN INPUT OUTPUT DIGITAL A/V 2 INPUT A/V OUTPUT REMOTE AUDIO VIDEO VIDEO 1 VIDEO 2 YELLOW VIDEO 2 OUT YELLOW VIDEO 1 OUT AC/DC ADAPTOR AUDIO R OUT WHITE AUDIO L OUT DIGITAL AUDIO YELLOW VIDEO 2 IN AUDIO 2 R IN WHITE... -
Page 10: Remote Control
REMOTE CONTROL GB-10... - Page 11 REMOTE CONTROL POWER Press POWER to turn the unit ON or OFF. EJECT Press to eject the disc. MUTE Press to mute the sound. SUBTITLE Changing of the SUBTITLE language on multi-subtitle language DVD disc. ANGLE Changing of the view angle on multi-angle DVD disc. DISPLAY Display statistical disc information during playback.
-
Page 12: Preparing The Remote Control
REMOTE CONTROL Preparing the Remote Control Inserting the Batteries 1. Open the battery compartment cover. 2. Insert the new batteries. Make sure that the positive and negative terminals of the batteries are oriented indicated. 3. Close the cover Battery: Two AAA size battery. Using the Remote Control Face the remote control towards the player front face IR mark (remote control... -
Page 13: Basic Operation
BASIC OPERATION Stopping Play Pause (still picture) - Brief press the (Stop) button to stop Pressing on the remote control or the unit playback, when press the on the front panel during playback will (Play) button it can continuous normal stop play temporary. - Page 14 BASIC OPERATION PROGRAM A-B repeat allows a passage to be In stop mode, press PROGRAM button, repeated continuously. Press A-B button the screen will display “PROGRAM at the start of the required passage, then P00:00”. For example: press numeric press A-B button again at the end of the button 4 and button, “PROGRAM passage.
-
Page 15: On-Screen Display Function
BASIC OPERATION On-Screen Display Function (2) Press DISPLAY for the second time: Press the DISPLAY button during SINGLE REMAIN playback to display the contents of the current disc on the screen. 00:03:15 Example: DVD: (3) Press DISPLAY for the third time: (1) Press DISPLAY for the first time: TITLE 01/03 CHAPTER 002/025 TOTAL ELAPSED... -
Page 16: Multi-Audio Language Function
BASIC OPERATION (4) Press DISPLAY for the fourth time: For VCD/CD: Press AUDIO on the remote control or TOTAL REMAIN AUD button on the front panel during 00:40:35 playback. It is possible to switch the sound TOTAL TRACK : 14 between monaural and stereo sound. -
Page 17: Multi-Angle Function
BASIC OPERATION - The function only works for discs having scenes recorded at different angles. - When no different angle are recorded, will be displayed at screen left top corner. MP3 Disc Play MP3 disc is playing as the format of FOLDER. -
Page 18: Setup
SETUP INITIAL SETUP GENERAL SETUP SETUP MENU --- MAIN PAGE --- GENERAL PAGE --- GENERAL SETUP TV DISPLAY NORMAL/PS SPEAKER SETUP PIC MODE NORMAL/LB AUDIO SETUP ANGLE MARK WIDE PREFERENCES OSD LANG CAPTIONS SCR SAVER EXIT SETUP 1. Press SETUP in the stop mode. MAIN PAGE (Press the stop button twice to ensure the player under STOP mode.) - Page 19 SETUP --- GENERAL PAGE --- --- GENERAL PAGE --- TV DISPLAY TV DISPLAY PIC MODE AUTO PIC MODE ANGLE MARK HI-RES ANGLE MARK OSD LANG N-FLICKER OSD LANG ENGLISH CAPTIONS CAPTIONS SCR SAVER SCR SAVER MAIN PAGE MAIN PAGE PIC mode setup OSD LANG type setup Select AUTO, the player PIC mode will Select the preferred OSD language by...
-
Page 20: Speaker Setup
SETUP --- GENERAL PAGE --- AUDIO SETUP --- AUDIO SETUP --- TV DISPLAY PIC MODE AUDIO OUT ANALOG ANGLE MARK OP MODE SPDIF/RAW OSD LANG DYNAMIC SPDIF/PCM CAPTIONS LPCM OUTPUT SCR SAVER MAIN PAGE SCR SAVER setup MAIN PAGE Select the SCR SAVER output ON/OFF. AUDIO OUT SPEAKER SETUP This is to activate the audio output from... -
Page 21: Audio Setup
SETUP --- AUDIO SETUP --- PREFERENCES SETUP --- PREFERENCES PAGE --- AUDIO OUT TV TYPE AUTO FULL OP MODE AUDIO NTSC DYNAMIC SUBTITLE LPCM OUTPUT DISC MENU PARENTAL PASSWORD DEFAULTS SMART NAV MAIN PAGE MAIN PAGE TV type setup Dynamic Range Control This player can play discs recorded in Select DYNAMIC and adjust the dynamic either PAL or NTSC format. - Page 22 SETUP --- PREFERENCES PAGE --- --- PREFERENCES PAGE --- TV TYPE TV TYPE AUDIO AUDIO SUBTITLE ENGLISH SUBTITLE 3 PG DISC MENU FRENCH DISC MENU 4 PG 13 PARENTAL SPANISH PARENTAL PASSWORD CHINESE PASSWORD 6 PG-R DEFAULTS JAPANESE DEFAULTS 7 NC-17 SMART NAV SMART NAV 8 ADULT...
-
Page 23: Defaults Table
SETUP --- PREFERENCES PAGE --- DEFAULTS TABLE TV TYPE General Setup TV Display Normal/LB PIC Mode AUTO AUDIO Angle Mark SUBTITLE OSD Language English DISC MENU Captions PARENTAL SCR Saver Speaker Setup Downmix Stereo PASSWORD Audio Setup Audio Out SPDIF/RAW DEFAULTS RESET OP Mode... -
Page 24: Specifications
SPECIFICATIONS Supply Voltage : 12V DC (11V-15V), test voltage 14.4V, negative ground Current Consumption : Less than 2A Signal System : Compositive video 1.0Vp-p 75Ω Discs Played : (1) DVD-VIDEO Disc 5” (12 cm) single-sided, single-layer 5” (12 cm) single-sided, double-layer (2) Compact Disc (CD-DA) 5”...
