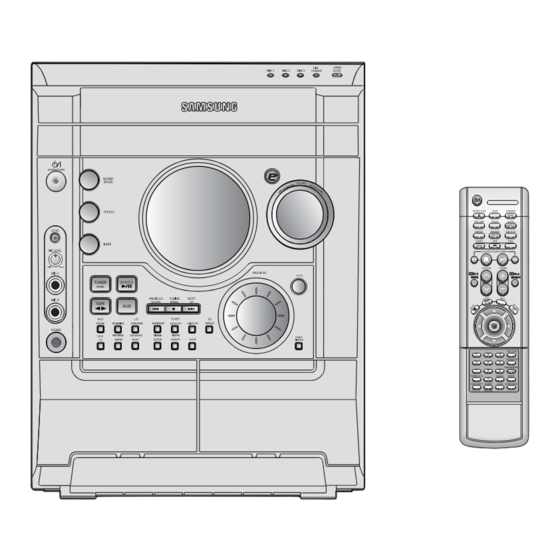

3 DVD MINI
COMPONENT SYSTEM
DVD/VCD/CD/MP3-CD/CD-R/RW
PLAYBACK
MAX-DJ14500
Instruction Manual
SOUND
COMPACT
COMPACT
DIGITAL AUDIO
DIGITAL VIDEO
OPEN/CLOSE
SLEEP
DIMMER
DISC SKIP
ZOOM
SLOW
REPEAT
REMAIN
SUB TITLE
TUNER
TAPE
AUX
BAND
VOLUME
TUNING
ENTER
TEST TONE
SOUND EDIT
P.SCAN
TIMER/CLOCK
CANCEL
DIGEST
TIMER ON/OFF
EZ/VIEW
LOGO SLIDE MODE
AH59-01379B
NTSC/PAL
Advertisement
Table of Contents
Related Manuals for Samsung MAX-DJ14500
Summary of Contents for Samsung MAX-DJ14500
- Page 1 3 DVD MINI COMPONENT SYSTEM DVD/VCD/CD/MP3-CD/CD-R/RW PLAYBACK THIS APPLIANCE IS MANUFACTURED BY: MAX-DJ14500 Instruction Manual SOUND OPEN/CLOSE SLEEP DIMMER DISC SKIP ZOOM SLOW REPEAT REMAIN SUB TITLE TUNER TAPE BAND VOLUME TUNING ENTER TEST TONE SOUND EDIT P.SCAN TIMER/CLOCK CANCEL...
-
Page 2: Safety Warnings
Safety Warnings Precautions Use of controls, adjustments or performance of procedures other CLASS 1 LASER PRODUCT than those specified herein may result in hazardous radiation KLASSE 1 LASER PRODUCT exposure. LUOKAN 1 LASER LAITE KLASS 1 LASER APPARAT PRODUCTO LASER CLASE 1 CAUTION-INVISIBLE LASER RADIATION WHEN OPEN AND INTERLOCKS DEFEATED, AVOID EXPOSURE TO BEAM. -
Page 3: Table Of Contents
Skipping Scenes/Songs....................................23 Angle Function.......................................24 Power Saving Function Repeat Playback......................................25 A-B Repeat playback ....................................27 The MAX-DJ14500 automatically shuts itself off after 20 minutes in the stop mode. Zoom Function.......................................28 Selecting Audio/Subtitle Language................................29 Moving Directly to a Scene/Song...................................30 Customized TV Screen Display JPEG File Playback .......................................31... -
Page 4: Description
Description —Front Panel— —Rear Panel— SOUND MODE STANDBY/ON TREBLE LEVEL ECHO SW Antenna Connector (Option) MIC LEVEL FUNCTIONS SELECT BUTTONS AM Antenna Connectors MIC 1,MIC 2 FM Antenna Connector REC/PAUSE PHONES 4. 5.1 Channel Speaker Output Terminals TAPE 1/2 LINE OUT DUBBING Component Video Output Connectors CASSETTE DECK 1... -
Page 5: Remote Control
Description —Remote Control— Insert Remote Batteries Remove the battery Insert two 1.5V AAA Replace the battery ZOOM button POWER STANDBY/ON button cover on the back of batteries, paying cover. SLEEP button DIMMER/DEMO button the remote by attention to the correct OPEN/CLOSE button pressing down and polarities (+ and –). -
Page 6: Connecting The Speakers
Connecting the Speakers Before moving or installing the product, be sure to turn off the power and disconnect the power cord. Connect the connecting jacks (7) to the back of mini-compact system. ANTENNA (75) SPEAKERS(6) Make sure the colors of the speaker terminals match the colors of the connecting jacks. AUX IN S.VIDEO VIDEO OUT... -
Page 7: Connecting To A Tv
Connecting to a TV P.SCAN Function (Progressive Scan) Please be sure to turn off the power and unplug the power cord before moving or installing this unit. Unlike regular Interlace Scan, in which two fields of picture information alternate to create the Please choose one of three video connection methods. -
Page 8: Connecting External Components
Connecting the FM, AM ( MW ) and SW(option) Antennas Connecting External Components Connecting an External Analog Component If AM reception is poor, connect an Example: Analog signal components such as a VCR, Camcorder, and TV. outdoor AM antenna(not supplied). AM Loop Antenna (supplied) FM Antenna (supplied) -
Page 9: Setting The Clock
Setting the Clock Disc Playback For each step, you have a few seconds to set the required options. If you exceed this time, you must start again. Selecting a CD in the Disc changer Switch the system Press TIMER/CLOCK Press ENTER. The CD function is automatically selected when Disc Skip is pushed. -
Page 10: Bonus Group / Navigating Pages
Bonus Group / Navigating Pages Disc terminology Groups and tracks (DVD-AUDIO) • DVD-audios are divided into several large sections called "groups" and smaller sections called "tracks". Numbers are allotted to these sections. These numbers are called "group numbers" and "track numbers". Bonus Group DVD- AUDIO... -
Page 11: Divx Playback
DivX Playback 5 Minute Skip function During playback, press the button. • Go to the screen about 5 minutes after whenever you press button. Skip Forward/Back • Go to the screen about 5 minutes earlier whenever you press button. During playback, press the button. -
Page 12: Displaying Disc Information
Displaying Disc Information Fast/Slow Playback You can view playback information on the disc on the TV screen. Fast Playback Press and hold Press INFO button. • Each time the button is held down during playback, • Each time the button is pressed, the display changes as follows: the playback speed changes as follows: DivX JPEG... -
Page 13: Skipping Scenes/Songs
Skipping Scenes/Songs Angle Function This function allows you to view the same scene in different angles. Press Cursor Briefly press Press INFO button. button to move to • Each time the button is pressed briefly during playback, the previous or next chapter, OPEN/CLOSE SLEEP DIMMER... -
Page 14: Repeat Playback
Repeat Playback Repeat playback allows you to repeatedly play a chapter, title, track (song), or directory (MP3 file). To Select a Repeat Playback Mode in the Disc Information Screen JPEG Press Cursor button Press REPEAT button. Press INFO button OPEN/CLOSE SLEEP DIMMER to move to REPEAT... -
Page 15: A-B Repeat Playback
B Repeat Playback Zoom Function This function allows you to enlarge a particular area of the displayed image. Zoom (Screen Enlarge) Function Press Cursor Press INFO button Press Cursor , , button to move to Press ZOOM Press ENTER , buttons to twice. -
Page 16: Selecting Audio/Subtitle Language
Selecting Audio Subtitle Language Moving Directly to a Scene/Song Audio Language Selection Function Moving to a Title/Track Moving to a Chapter Press Cursor , buttons Press Cursor , Press Cursor or numeric buttons to select buttons to move to Press INFO button. Press INFO button OPEN/CLOSE SLEEP... -
Page 17: Jpeg File Playback
JPEG File Playback JPEG Images captured with a digital camera or camcorder, or JPEG files on a PC can be stored on a CD and then played back with this DVD player. Slide Mode Digest Function You can view 9 JPEG images on the TV screen. Press DIGEST Press Cursor , , , buttons... -
Page 18: Using Disc Menu
Using Disc Menu Using the Title Menu You can use the menus for the audio language, subtitle language, profile, etc. For DVDs containing multiple titles, you can view the title of each movie. DVD menu contents differ from disc to disc. Depending on the disc, this function may either not work at all or may work differently. -
Page 19: Setting The Language
Setting the Language OSD language is set to English by default. Press Cursor Press Cursor Press Cursor Press ENTER SLEEP DIMMER In stop mode,Press button to select the button to select the button to move to button. DISC SKIP ZOOM SLOW MENU button. -
Page 20: Setting Tv Screen Type
Setting TV Screen type Adjusting the TV Aspect Ratio (Screen Size) Press Cursor button to move to In stop mode,Press The horizontal to vertical screen size ratio of conventional TVs is 4:3, while that of wide screen and high ‘Setup’ and then definition TVs is 16:9. -
Page 21: Setting Parental Controls (Rating Level)
Setting Parental Controls (Rating Level) Setting the Password Use this to restrict playback of adult or violent DVDs you do not want children to view. You can set the password for the Parental (rating level) setting. Press Cursor Press Cursor button to Press Cursor Press Cursor... -
Page 22: Setting The Wallpaper
AH59-01379B NTSC/PAL Press RETURN button to return to the previous level. Press MENU button to exit the setup screen. Select this to set the Select this to set the desired Samsung Logo image as image as your wallpaper. your wallpaper. -
Page 23: Dvd Playback Mode
AV SYNC Setup DVD Playback Mode Some DVD-Audio discs contain DVD-Video as well as DVD-Audio. Video may look slower than the audio if it is connected with digital TV. To play back the DVD-Video portion of the DVD-Audio disc, set the unit to DVD-Video mode. In this case, adjust the delay time of audio to optimal status to fit the video. -
Page 24: Setting The Speaker Mode
Setting the Speaker Mode Setting the Test Tone Signal outputs and frequency responses from the speakers will automatically be adjusted Press the Test Tone to check the speaker connections and to adjust the speaker levels. according to your speaker configuration and whether certain speakers are used or not. Press Cursor Press Cursor Press Cursor... -
Page 25: Setting The Delay Time
Setting the Delay Time If the speakers cannot be placed at equal distances from the listening position, you can adjust the delay time of the audio signals from the center and rear speakers. Press Cursor Press Cursor button Press Cursor button In Stop mode, , buttons to move... -
Page 26: Setting The Audio Quality
Setting the Audio Quality You can adjust the balance and level for each speaker. When manually adjusting with the SOUND EDIT button Method 2 When adjusting the audio quality using the setup screen Method 1 OPEN/CLOSE SLEEP DIMMER Adjusting Front Speaker Balance Adjusting Rear Speaker Balance Adjusting Center Speaker Level Press Cursor... -
Page 27: Setting The Drc (Dynamic Range Compression)
Setting the DRC (Dynamic Range Compression) You can use this function to enjoy Dolby Digital sound when watching movies at low volume at night. If “DRC” is selected, Press Cursor In stop mode,Press MENU adjust the ‘DRC’. press ENTER. SLEEP DIMMER button. -
Page 28: Dolby Pro Logic Ii Mode
Dolby Pro Logic II Mode Dolby Pro Logic II Effect You can select the desired Dolby Pro Logic II audio mode. This function works only in Dolby Pro Logic MUSIC mode. Press PL II EFFECT button Press PL II MODE Press PL II MODE button. -
Page 29: Listening To Radio
Listening to Radio Presetting Stations You can store up to: You can listen to the chosen band (FM, MW(SW1,2) broadcast stations) by using 15 FM stations either the automatic or manual tuning operation. 5 MW stations 5 SW1 stations 5 SW2 stations Remote Control Unit Example: Presetting FM 89.1 in the memory Press the... -
Page 30: Listening To A Cassette
Listening to a Cassette Selecting the Cassette Playback Mode Your micro component system has three cassette playback modes which Always treat your cassettes with care; refer, if necessary, to the section entitled “Precautions When Using Audio Cassettes” on page 70. enable you to listen to both sides of a cassette automatically. -
Page 31: Recording A Compact Disc
Recording a Compact Disc Coping a Cassette(Dubbing) You can record a compact disc on a cassette in two different ways: ou can copy a cassette from Tape 1 to Tape 2. • Normal speed dubbing in selecting Tape function mode. •... -
Page 32: Recording A Radio Program
Recording a Radio Program Direct recording You can record a radio program of your choice. You do not need to adjust the volume, as it has no effect on the recording. The direct recording mode enables you to start recording with any track on the compact disc. SOUND SOUND Switch the system... -
Page 33: Timer Function
Timer Function Canceling the Timer • The timer enables you to switch the system on or off at specific times. After having set the timer, it will start automatically as shown by the TIMER indication on the display. • If you no longer want the system to be switched on or off automatically, you must cancel the timer. If you no longer wish to use the timer, you must cancel it. -
Page 34: P.sound/Sound Mode Function
P.SOUND AND SOUND MODE Function Sleep Timer Function / Mute Function Sleep Timer Function You can set the time that the DVD player will shut itself off. SOUND SLEEP DIMMER Press SLEEP button. DISC SKIP ZOOM SLOW REPEAT REMAIN SUB TITLE •... -
Page 35: Demo Function / Dimmer Function
Bass/Treble Level (USER EQ) Function DEMO Function / DIMMER Function SOUND BASS Level Function BASS function stresses low tones providing thudding sound effects. DEMO Function Turn BASS knob on the front DIMMER Function You can select the level of low panel to select from BASS -08 tones you desire. -
Page 36: Connecting Headphones/Microphone(Option)
Connecting Headphones/Microphone(option) Cautions on Handling and Storing Discs Small scratches on the disc may reduce sound and picture quality or cause breaks in You can connect a set of headphones to your micro component system so that you playback. Be especially careful not to scratch discs when handling them. can listen to music or radio programmers without disturbing other people in the room. -
Page 37: Before Calling For Service
Refer to the chart below when this unit does not function properly. If the problem you are experiencing is not listed below or if the instruction below does not help, turn off the unit, disconnect the power cord, and contact the nearest authorized dealer or Samsung Electronics Service Center. Symptom... -
Page 38: Notes On Discs
Notes on Discs Notes on Terminology Recorded onto some DVD discs are scenes which have been simultaneously shot Disc Recording Format ANGLE from a number of different angles (the same scene is shot from the front, from the left , from the right , etc.). CD-R Discs With such discs, the Angle button can be used to change the angle of view for •... -
Page 39: Specifications
Specifications Memo Weight 11Kg Dimensions (W x H x D) 370 x 332 x 270 mm Operating Temperature Range +5°C~+35°C Operating Humidity Range 10%~75% Usable Sensitivity 12dB S/N Ratio 55dB Distortion 0.8% Usable Sensitivity 60dB S/N Ratio 35dB Distortion 1.0Vp-p(75Ω load) Composite Video Luminance Signal : 1.0Vp-p(75Ω...
