Setup Procedure
10. Recommended Adjustments
To reduce the risk of the "image persistence", please adjust the fol-
lowing items based on the application being used.
"SCREEN SAVER" (See page 24), see page "SIDE BORDER COLOR"
(See page 24), "DATE & TIME" (See page 27), "SCHEDULE" (See
page 27)
11. When the monitor is installed in the por-
trait position
• Remove the stands (feet).
• Left edge should be the upper edge from front view.

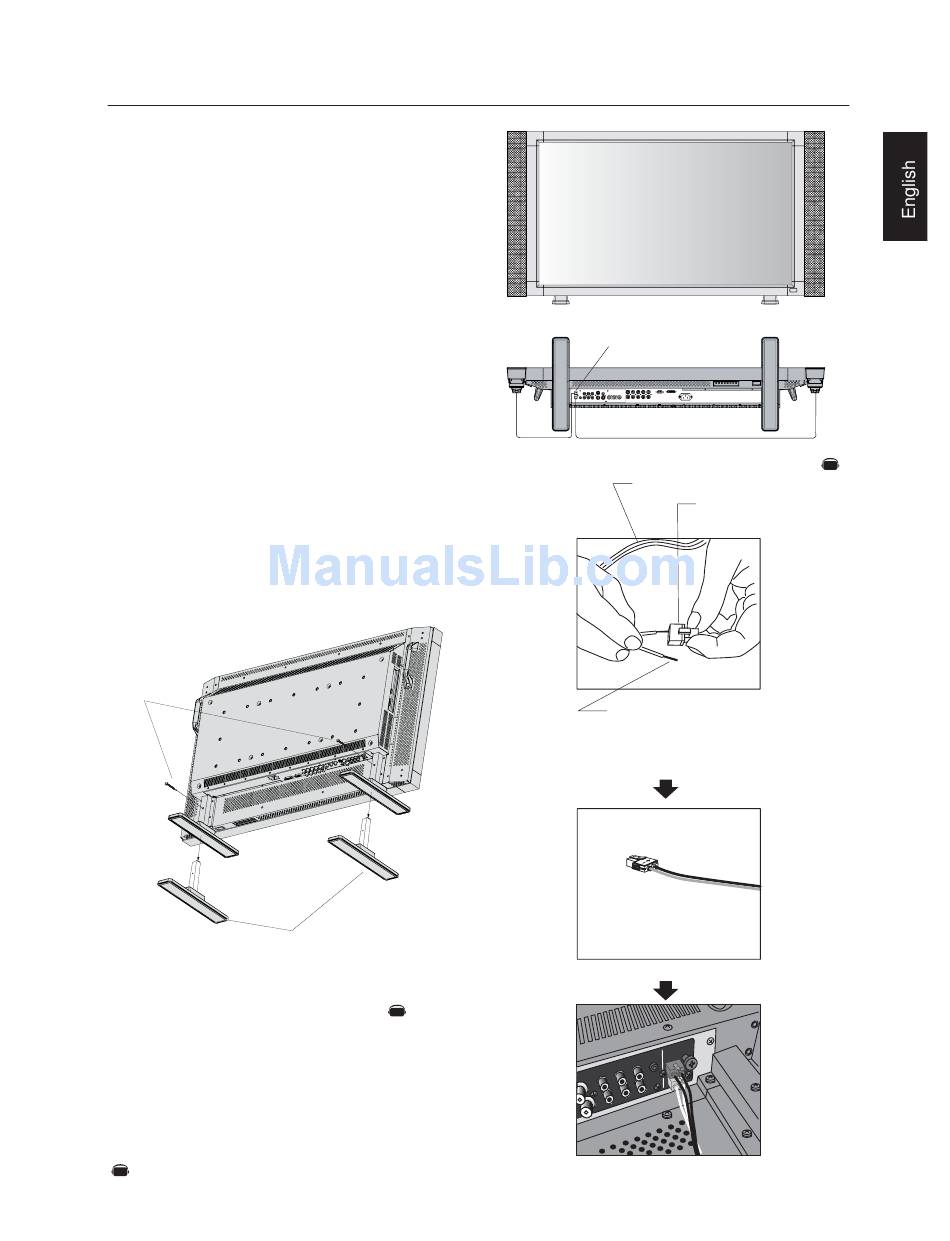

12. Installing and removing stand
How to install stand
1. Please turn monitor off.
2. Place stand onto monitor with the long ends of the feet in front
of the monitor.
3. After inserting stand in guide block, fasten thumbscrews on both
sides of the monitor.
How to remove the stand
1. Spread the protective sheet on a flat surface, such as a desk.
2. Place monitor on the protective sheet.
3. Remove thumbscrews with a screwdriver or with your fingers
and place them in a safe place for reuse.
Thumbscrews
Stand
CAUTION: Handle with care when mounting LCD monitor stand and
avoid pinching your fingers.
13. When using external speakers
We recommend using the optional speakers designed for the
MultiSync LCD4010/MultiSync LCD4610.
The external speaker terminals of the MultiSync LCD4010/MultiSync
LCD4610 may be connected with the speaker plug of a mainframe
sound speaker.It this case, please exchange the lead connector of a
mainframe sound speaker for an attached speaker plug.
Denotes an AV unit function.
AV
All AV functions are enabled when the AV unit is installed.
–continued
•How to use the attached speaker plug
NOTE: Place stand onto monitor
so that the long end of the feet
are in the front
AV
Insert the fixed cable and speaker plug to the speaker terminal.
English-11
Speaker terminal
Standard cable
Speaker plug
Insert the negative (-) side of a standard speaker cable
into the negative (-) side of the speaker plug. The
negative side of a standard speaker cable has a stripe
running the length of the cable. Insert remaining wire
into the positive (+) side of the speaker plug. Hold
down on the small lever on the speaker plug to insert
cable.
Fixed cable and speaker plug.
AV
