LIMITED WARRANTY
This DCM loudspeaker is intended for the reproduction of music in
residential premises only and is warranted against defective materials
or workmanship for a period of one year from the original date of
purchase. This warranty extends to the original purchaser from an
authorized DCM retailer only.
Defective parts will be repaired, adjusted or replaced with no charge for
materials or labor if the purchaser returns the loudspeaker together
with the original sales receipt or other proof of purchase at the
purchaser's expense to DCM Corporation at the address below.
Warranty work will be performed within a reasonable time and the
loudspeaker returned to the purchaser at DCM's expense within the
United States of America.
This warranty does not extend to equipment damage due to
negligence, misuse, improper installation, shipping damage, abuse or
accident.
No implied warranties shall extend beyond one year from the original
date of purchase. Incidental and consequential damages are expressly
excluded from this warranty and may not be recovered by a purchaser
as the result of breach of any warranty. Some states do not allow the
exclusion or limitations of incidental or consequential damages, so the
above limitations or exclusions may not apply to you.
This warranty gives you specific legal rights, and you may also have
other rights which may vary from state to state.
Please save the original carton and packing material. If you move or
the loudspeaker requires service, pack the unit in this carton. Any
damage in transit due to improper packing is not covered by the
warranty and will not be recognized as an insurance claim by
transportation companies.

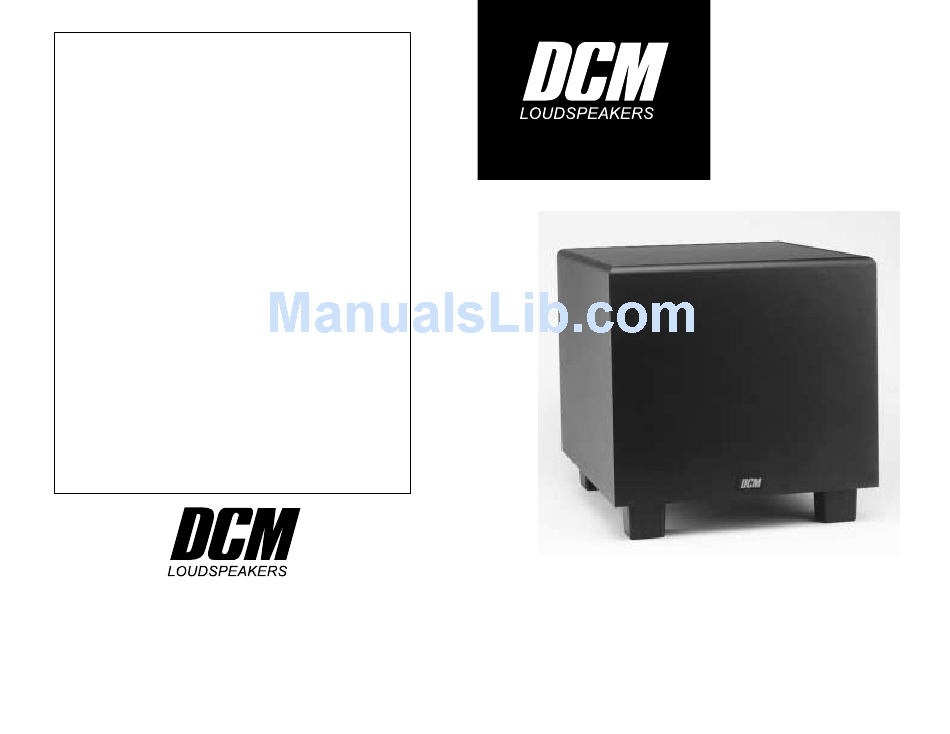

SW10
282 Carver Street
Powered Home Subwoofer
Winslow, IL 61089
Phone (877)DCM-LOUD
Owner's Manual
Visit our Internet web site at: www.dcmspeakers.com
DCM is a registered trademark of Mitek Corporation.
Due to our policy of continuous improvement, specifications are subject to change without notice.
21A3804
Advertisement
Related Manuals for Dcm SW10
Summary of Contents for Dcm SW10
- Page 1 Any damage in transit due to improper packing is not covered by the warranty and will not be recognized as an insurance claim by transportation companies. SW10 282 Carver Street Powered Home Subwoofer Winslow, IL 61089...
-
Page 3: Specifications
Frequency response: 40 Hz - 160 Hz Lo-pass xover 60 Hz - 160 Hz at 18 dB per octave Inputs: Line level and speaker level full range Outputs: Line level Hi-pass subsonic filter: 18 dB per octave below 30 Hz... - Page 4 IMPORTANT SAFETY INSTRUCTIONS Read Instructions – All the safety and operating should be routed so that they are not likely to be instructions should be read before the product is walked on or pinched by items placed upon or against opened.
-
Page 5: Table Of Contents
OPERATION After you have connected your subwoofer, adjusted it for proper operation with the rest of your system, and experimented to find the best location for it, it’s time to sit back and enjoy it. As you do, here are some hints for getting the most out of your subwoofer. -
Page 6: Introduction
CONGRATULATIONS..on your purchase of a DCM powered home subwoofer system. Your new subwoofer is one of the most exciting home entertainment electronic products available, adding impact and realism to recorded music and the wide variety of movies to be found on videotape, laser disc, DVD and off-the-air broadcasts. Once set-up and properly adjusted, it should give you many years of entertainment pleasure. -
Page 7: Unpacking/Pre-Installation Instructions
(dB) over a change in frequency of one octave which is a doubling or halving of frequency. Speaker level - the type of signal produced at the outputs of power amplifiers that may be many volts in a low impedance circuit. Sometimes called high level signals, they are routed using two conductor unshielded wire of 18 gauge or larger. -
Page 8: Explanation Of Features And Controls
4) Line level output: These RCA phono jacks provide a line level, stereo output that tracks the level of the full range signal at the line level or speaker level input. This output is provided for those wishing to “bi-amplify” their main stereo speakers. - Page 9 "A" and "B" sets of speakers.) Make one set of connections from the "A" speaker outputs of your receiver or amplifier to the speaker level inputs of your subwoofer and another set of connections from the "B"...
-
Page 10: Placement Or Positioning
Because the sounds you hear are a combination of direct sound from the speaker and reflected sound from the walls, ceiling, and floor of your listening room, placement of the subwoofer in relation to room boundaries changes the balance of what you hear at low frequencies.
