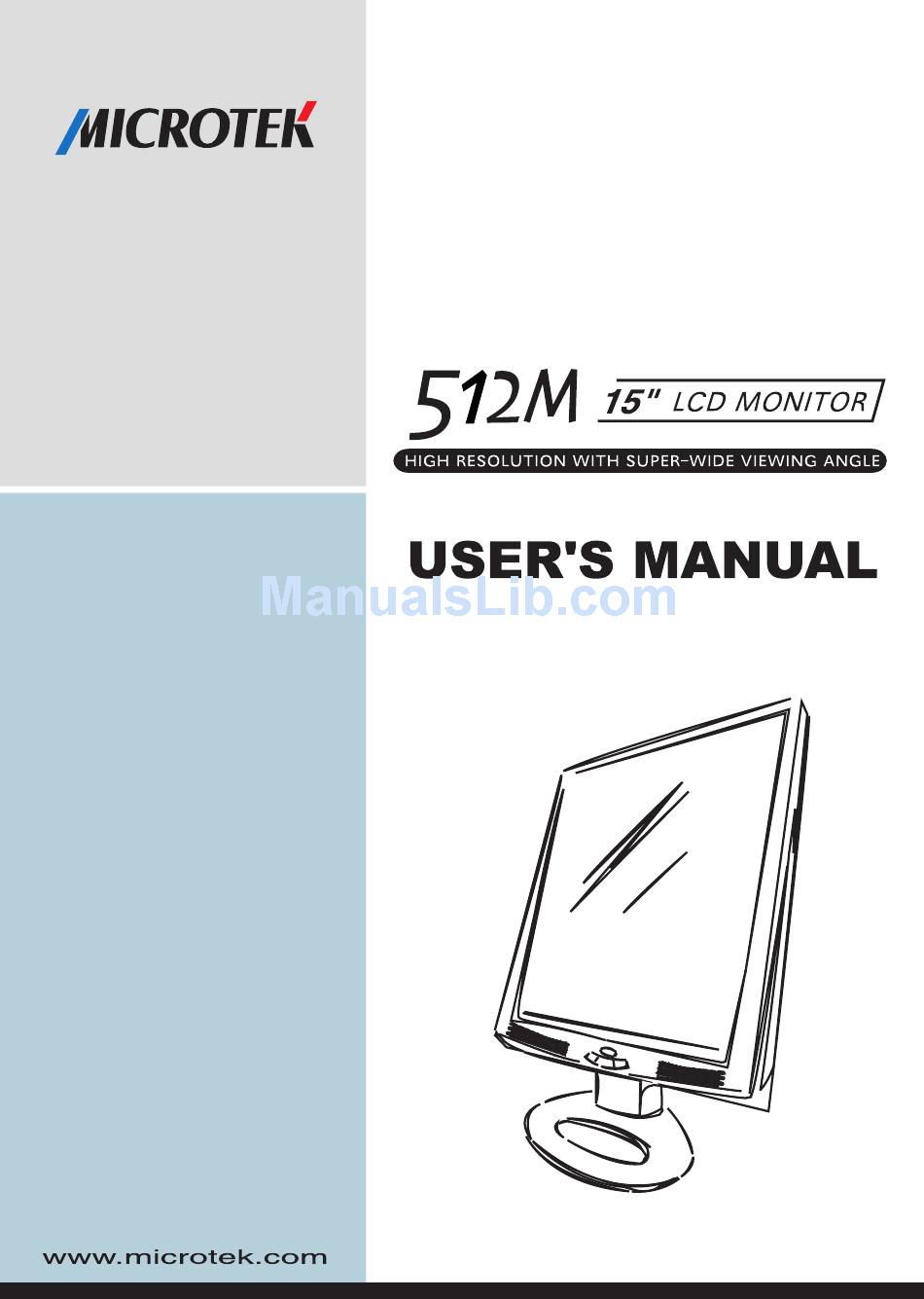

Microtek 512M User Manual

15" lcd monitor high resolution with super-wide viewing angle
Hide thumbs

Advertisement

Quick Links

Download this manual

Advertisement

loading

Related Manuals for Microtek 512M

Summary of Contents for Microtek 512M

  • Page 2 FCC Compliance Statement This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference, and 2. This device must accept any interference received, including interference that may cause undesired operation. FCC WARNING This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.
  • Page 3 CE mark for Class B ITE (Following European standard EN55022/1998; EN61000- 3-2/1995; EN61000-3-3/1995, EN55024/1998, EN60950/1992+A1+A2+A3+A4+A11) Radio Frequency Interference Statement Warning: This is a Class B product. In a domestic environment, this product may cause radio interference in which case the user may be required to take adequate measures.

  • Page 4: Table Of Contents

    Table of Contents The LCD Monitor Contents in the Box Installing the Monitor Cleaning OSD Controls Troubleshooting Specifications Supported Timing...

  • Page 5: The Lcd Monitor

    The LCD Monitor Precautions Read all of these instructions and save the manual for later use. Follow all warning and instructions on the product. Do not cover or block the vent holes in the case. Do not insert sharp objects or spill liquid into the LCD monitor through the cabinet slots;...

  • Page 6: Contents In The Box

    Contents in the Box 15” TFT LCD MONITOR VGA Cable Audio Cable Power Cord Adapter Note: Remember to save your original box and packaging material to transport or ship the monitor.

  • Page 7: Installing The Monitor

    Installing the Monitor Follow these steps to install the monitor Before you connect the cables, make sure that the monitor and the system unit power switches are OFF. Open cover "A" located on the rear of the monitor.
  • Page 8 Plug one end of the 15pin signal cable to the monitor and the other end to the video signal connector at the rear of the system. Tighten the two screws on the cable connector on both ends. Otherwise, the screen will be abnormal and the LED will light up as yellow (instead of the normal green color).

  • Page 10: Cleaning

    Cleaning Gently wipe the LCD screen with a clean, soft-lens brush or with a soft, clean, lint-free cloth. This removes dust and other particles that can scratch the screen. Do not apply pressure to the screen surface when wiping. Do not pour or spray any liquid directly onto the screen or onto the case of the LCD monitor.

  • Page 11: Osd Controls

    OSD Controls The OSD The Control Panel To use the Control Panel and navigate the OSD: 1. Press the Menu button in your Control Panel to bring up the OSD and to select the desired menu option. 2. Press the "+" or "-" buttons to navigate the OSD Main Menu and to adjust display settings.
  • Page 12 Brightness: Adjusts the brightness level of the screen. Contrast: Adjusts the contrast of the screen. Clock: Corrects for video distortion. Phase: Adjusts the monitor's video phase for the best focus and visibility.
  • Page 13 H-Position: Adjusts the position of the image on the LCD screen on a horizontal plane (left or right). V-Position: Adjusts the position of the image on the LCD screen on a vertical plane (up or down). Sharpness: This function is not available with this model. Text/Graphic: This function is not available with this model.
  • Page 14 OSD H-Position: Adjusts the position of the OSD window on a horizontal plane (left or right). OSD V-Position: Adjusts the position of the OSD window on a vertical plane (up or down). OSD Temperance: This function is not available with this model. Color Temperature: Adjusts the colors in the monitor to a warmer or cooler shade.
  • Page 15 Set User Color: Adjusts the RGB (Red, Green, Blue) color channels of the monitor (when in "User Color" setting from the Color Temperature menu). To use this feature: 1. Press the Menu button to enter the RGB submenu. 2. Press the Menu button once more to select the desired color channel.

  • Page 16: Troubleshooting

    Appendix A: Troubleshooting This LCD monitor comes pre-adjusted with standard VGA timing. Due to output timing differences among various VGA cards, you may initially experience an unstable or unclear display when a new display mode or new VGA card is selected. Before applying any of the following troubleshooting procedures, you should first apply the Auto Adjust option in the OSD menu.

  • Page 17: Specifications

    Appendix B: Specifications and Supported Timing Specifications LCD type 15” XGA Color TFT Display area 12.0 x 9.0 in (304 x 228 mm) Input signal Analog ( 0.7 Vp-p/ 75 ohm positive) Dot pitch 0.297 mm Scanning frequency (H) 24.823 ~ 60.023 KHz (V) 56.250 ~ 75.087 Hz Resolution 1024 x 768...
  • Page 18 ° Swivel +/- 35 ° Tip angle Wall mount Yes (75mm x 75 mm) AC input AC 100 V ~ 240 V , 50 / 60 Hz Power management VESA DPMS Power consumption 30 W Max (on)/ 5 W (Power-Saving OFF mode) Regulatory compliance ULc1950 / FCC CLASS B...

  • Page 19: Supported Timing

    Supported Timing H. Freq V. Freq Item Mode Resolution ( KHz) (Hz) 640 x 350 31.469 70.087 ┼ ─ 640 x 480 31.469 59.940 ─ ─ ┼ Macintosh 640 x 480 35.000 66.667 ┼ ─ VESA 640 x 480 37.861 72.809 ─...
