Summary of Contents for Datalogic STARGATE

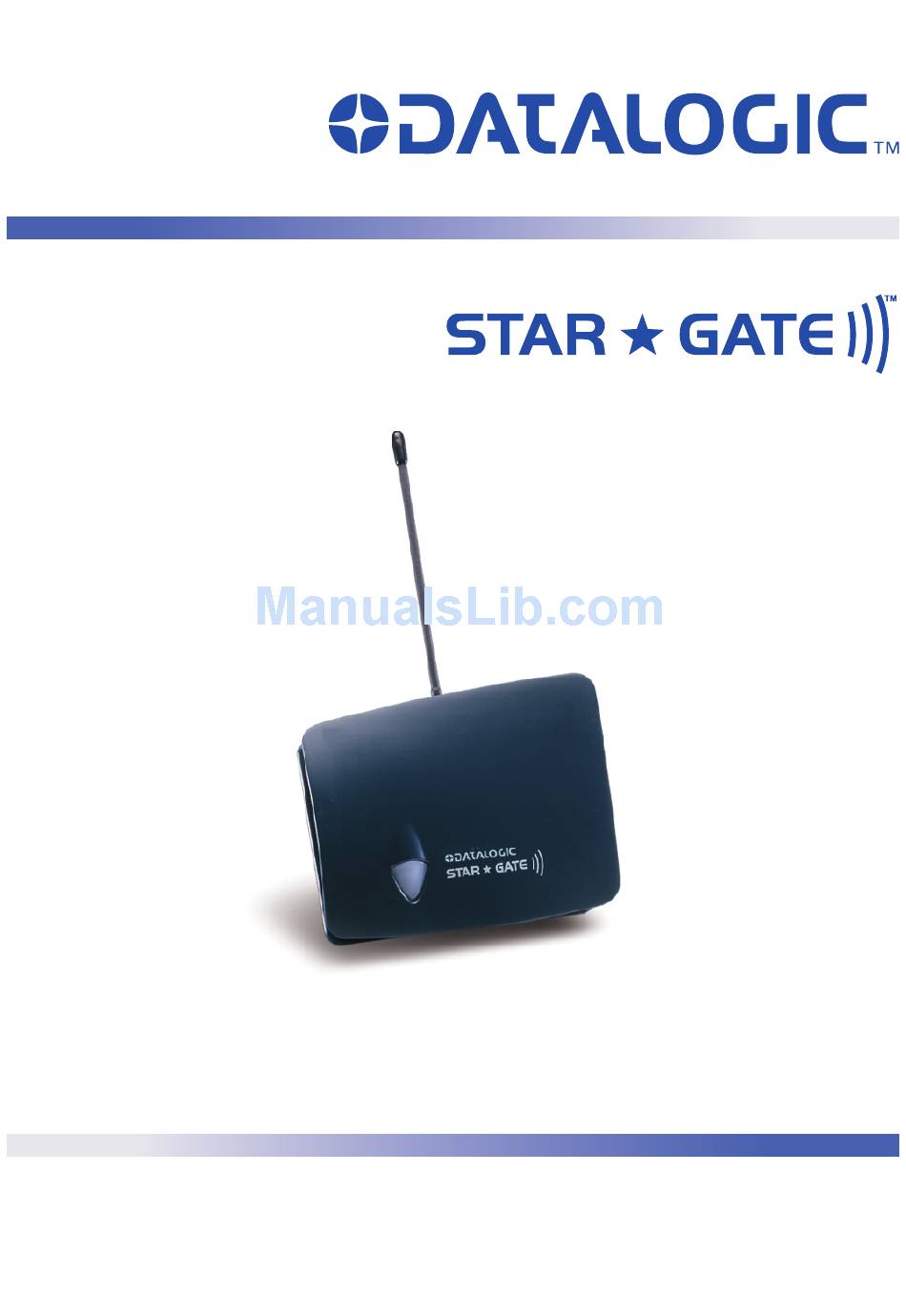

- Page 1 Installation Manual...
- Page 2 Installation Manual...
- Page 3 Datalogic Mobile S.r.l. Via S. Vitalino 13 40012 - Lippo di Calderara di Reno Bologna - Italy STARGATE™ Ed.: 08/2007 ALL RIGHTS RESERVED Datalogic reserves the right to make modifications and improvements without prior notification. Datalogic shall not be liable for technical or editorial errors or omissions contained herein, nor for incidental or consequential damages resulting from the use of this material.
-
Page 4: Table Of Contents
Radio Compliance...iv FCC Compliance... v Power Supply... v WEEE Compliance ...vi GENERAL VIEW ... viii INTRODUCTION ... 1 Description of STARGATE™ ... 1 Package Contents... 3 Status Indicator LED ... 3 Reset Button ... 4 Data Backup ... 4 INSTALLATION... 5 Positioning STARGATE™... -
Page 5: Compliance
COMPLIANCE This device must be opened by qualified personnel only. RADIO COMPLIANCE Information for the User Contact the competent authority responsible for the management of radio frequency devices of your country to verify the eventual necessity of a user license. Refer to the web site http://europa.eu.int/comm/enterprise/rtte/spectr.htm Prendi contatto con l'autorità... -
Page 6: Fcc Compliance
FCC COMPLIANCE Modifications or changes to this equipment without expressed written approval of Datalogic could void the authority to use the equipment. This device complies with PART 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference which may cause undesired operation. -
Page 7: Weee Compliance
WEEE COMPLIANCE Informazione degli utenti ai sensi della Direttiva Europea 2002/96/EC L’apparecchiatura che riporta il simbolo del bidone barrato deve essere smaltita, alla fine della sua vita utile, separatamente dai rifiuti urbani. Smaltire l’apparecchiatura in conformità alla presente Direttiva consente di: evitare possibili conseguenze negative per l’ambiente e per la salute umana che potrebbero invece essere causati dall’errato smaltimento dello stesso;... - Page 8 éviter les retombées négatives pour l'environnement et la santé dérivant d'une élimination incorrecte récupérer les matériaux dans le but d'une économie importante en termes d'énergie et de ressources Pour obtenir des informations complémentaires concernant l'élimination, veuillez contacter le fournisseur auprès duquel vous avez acheté le produit ou consulter la section consacrée au site Web www.mobile.datalogic.com.
-
Page 9: General View

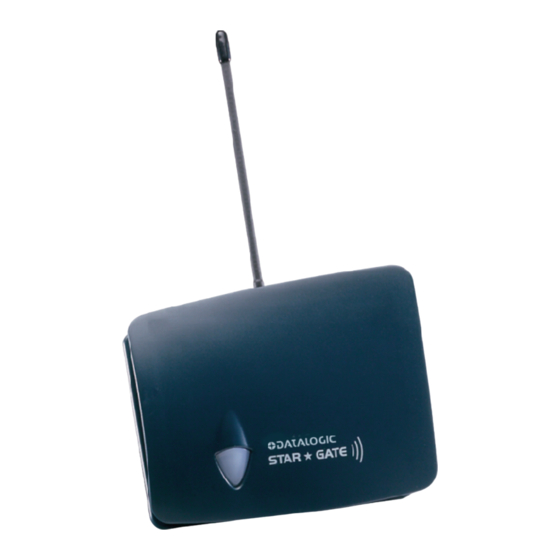

GENERAL VIEW Figure 1 - STARGATE™ Key: A) Antenna B) LED C) Power supply connector D) Reset/downloading mode button E) RS232 connector RS485 connectors viii... -
Page 10: Introduction
1 INTRODUCTION DESCRIPTION OF STARGATE™ STARGATE™ is a radio base station that enables a wireless network allowing data transmission between several Datalogic RF devices and an host system (standard PC, Windows based): STARGATE™ is the core component of the Datalogic STAR-System™, the system providing a modern and flexible RF Narrow Band... - Page 11 STAR-Link™ software for Windows not compatible with STARGATE™ USA model STARGATE™ does not carry out continuous polling, but it is enabled each time an RF device sends it a sequence of data. This means the radio channel is always free when RF devices are not transmitting.
-
Page 12: Package Contents
Keep the package just in case you need to ship the equipment for service. Any damage due to inappropriate packaging is not covered CAUTION by the warranty. STATUS INDICATOR LED STARGATE™ is equipped with a LED indicating its status: Normal Functioning Green It is on when the device works correctly. -
Page 13: Reset Button
CAUTION DATA BACKUP A backup of the data saved to STARGATE™ RAM memory is available in case of power going down. STARGATE™ maintains the data for a maximum of 3 hours. Then, data is definitely lost. -
Page 14: Installation
STARGATE™ base station away from large metal structures which could absorb or reflect Radio Frequency; STARGATE™ can be mounted for desktop usage or it can be fixed to a wall. 2.1.1 Desktop Use For desktop use, STARGATE™ is already correctly positioned : Carefully clean the rubber feet seat of the STARGATE™... -
Page 15: Wall Mounting
Before performing the following operation, mount the fixing plate on the STARGATE™ bottom surface by means of the four screws. Then, slide the wall mounting base along the fixing plate and fix it through the set - screw. Do not screw it too tight in order to allow the wall mounting base to slide out. - Page 16 Insert the threaded dowels into the holes; Position the plate on the wall and affix it by means of the two screws; Insert STARGATE™ (as shown in Figure 3) by sliding the fixing plate along the guide on the mounting base;...
-
Page 17: Connections
If the required coverage area is supplied by a single STARGATE™ and the distance between the PC and STARGATE™ is < 15 m, it is possible to connect it to a PC through an RS232 interface (default connection). The hardware system is composed by a PC, one STARGATE™, a serial cable, a power supply connected to the base... -
Page 18: Rs485 Connection Using F904/N
9-pin connector (female) RS485 CONNECTION USING F904/N Several STARGATE™ base stations can be chained together in an RS485 network or a single STARGATE™ having a distance > 15 m from the PC can be connected. (first) base station RS232/485 converter set to the following default parameter values (see the F904/N relevant manual for details): −... - Page 19 The cables, converter and power supplies are listed with their order number: 94A054000 2 m serial cable 94ACC4470 F904/N RS232/RS485 converter C. 94ACC4050 power supply 110 V (USA) 94ACC4060 power supply 240 V (UK) 94ACC4070 power supply 220 V (EURO) 94ACC4500 power supply 240 V (Australia) D.
- Page 20 CONNECTIONS To configure the STARGATE™ base station use the cable and the adapter listed in par. 3.1. For further details see par. 4.3. CAUTION The RS485 bus system and the eventual power are propagated from one base station to another through a cable having the following minimum characteristics: −...
- Page 21 If connecting up to 16 STARGATE™ base stations in the same system, it is necessary to use a custom cable having two different pinouts depending on the network configuration. If each STARGATE™ present in the system is individually powered, the custom cable pinout is the following: Figure 10 - Powering Each STARGATE™...
- Page 22 WARNING The RS485 bus must be properly terminated by positioning a jumper in the RS232/485 converter (see the relevant manual) and in the last STARGATE™ on the network. To position the jumper proceed as follows: If working with a STARGATE™ USA model, skip step 1 and step 6, since the antenna is fixed and not removable.
-
Page 23: Rs485 Connection Using Star-Box
Several STARGATE™ base stations can be chained together in an RS485 network or a single STARGATE™ having a distance > 15 m from the PC can be connected. The (first) base station is connected to the PC through an active STAR-Box™... - Page 24 The RS485 bus must be properly terminated by positioning a jumper in both the last STAR-Box™ device and the first STAR-Box™ device on the network bus and NOT inside STARGATE™. Refer to the STAR-Box™ relevant manual to get further information about...
-
Page 25: Configuring And Testing Star-System
STARGATE™ or a network of several RF base stations. An RF device is logically linked to only one STARGATE™ RF base station at a time. In case of a network layout it can choose dynamically the best base station to be linked to allowing the handover from one cell to another. - Page 26 CONFIGURING AND TESTING STAR-System™ If the system has been started correctly (invoking the proper STAR-Link™ ActiveX method) and the network initialization has been completed, the registration of the RF device in the network and the first data transaction occur at the same time. Then, the RF device will send information to the host PC identifying the RF device type and the RF library version.
- Page 27 NOTE Figure 15 - Separate STAR-System(s)™ with Overlapping Coverage Areas The same care must be taken if a STARGATE™ RF base station(s) and the RF devices are placed near one or more point-to-point cordless systems. Neither the RF devices nor the point-to-point and STARGATE™ RF base stations must share the same address: Figure 16 - STAR-System™...
- Page 28 If working with an installation composed of 4 point-to-point cordless systems (RF device with its base), 4 STARGATE™ RF base stations connected to 1 host PC via RS485 and 10 RF devices exchanging data with that host, a correct set of addresses...
-
Page 29: Loading A Sw Application Onto An Rf Terminal
LOADING A SW APPLICATION ONTO AN RF TERMINAL The following procedure is not valid for STARGATE™ USA model. This example explains how to load the demo software (provided by the STAR-Link™ CD-ROM) onto an RF terminal: Connect the terminal cradle to the PC COM1 by means of the serial cable and insert the RF terminal into its cradle;... - Page 30 Addr. : ID address for RF terminal in the range 0-1999 F.Sta. : ID address for the first STARGATE™ to send data to in the range 0-1999 L.Sta. : ID address for the last STARGATE™ to send data to in the range 0-1999 Act.
-
Page 31: Rs232 Layout
RS232 LAYOUT This procedure is intended to be a step-by-step guide explaining how to configure a STARGATE™ RF Base Station by using the Visual Basic example provided in the STAR-Link™ CD-ROM and based upon the STAR-Link ActiveX. The procedure assumes the STARGATE™ RF Base Station has a factory default address. If... -
Page 32: Rs485 Layout
Settings menu, you do not need to configure the network to start the data polling; 12. Select the Open option from the Network menu to start polling STARGATE™. Now, the program is ready to display the data packets sent to the base stations in the application window. - Page 33 10. Disconnect the first STARGATE™ and connect individually the other ones to the PC serial port and power them; 11. For each STARGATE™ digit 2000 in the Edit box positioned in the right upper part of the dialog box and click on the Add button. The address will then be displayed in the list on the left;...
- Page 34 22. Select the Open option from the Network menu to start polling the STARGATE™ base stations listed in the RF Base Stations dialog box. Now, the program is ready to display the data packets sent to the base stations in the...
-
Page 35: Notes For The Programmer
NOTES FOR THE PROGRAMMER STARGATE™ does not carry out continuous polling, but it is only enabled each time an RF device sends it a sequence of data. This means the radio channel is always free when the RF devices are not transmitting. - Page 36 CONFIGURING AND TESTING STAR-System™ Both the transactions (1 way and 2 way) must have an acknowledgement back to be completed correctly. This assures that the application program always knows if the data packet has been correctly delivered or not. In case the RF device does not receive the acknowledgement packet, the transaction fails due to timeout.
-
Page 37: Troubleshooting
5 TROUBLESHOOTING PROBLEMS The STARGATE™ base station cannot communicate with the PC. The RF communication between an RF device and STARGATE™ is not possible. CAUSES STARGATE™ is not powered. The connecting cable is broken or it is not correctly connected. -
Page 38: Technical Features
TECHNICAL FEATURES 6 TECHNICAL FEATURES Electrical Features Micro-controller Program memory Data memory Supply voltage Power consumption Radio Features Working frequency Bit rate Effective radiated power Range (in open air) RF Modulation Environmental Features Working temperature Storage temperature Humidity Protection class Mechanical Features Weight (without fixing plate) Dimension (without antenna) - Page 39 Gerät bescheinigt, daß das Gerät declare que el declare que el STARGATE, RF433MHz Base Station STARGATE, RF433MHz Base Station sono conformi alla Direttiva del Consiglio Europeo sottoelencata: sono conformi alla Direttiva del Consiglio Europeo sottoelencata: are in conformity with the requirements of the European Council Directive listed below: are in conformity with the requirements of the European Council Directive listed below: sont conformes aux spécifications de la Directive de l'Union Européenne ci-dessous:...
- Page 40 www.mobile.datalogic.com World wide Sales Network available from: www.mobile.datalogic.com/contacts Datalogic Mobile S.r.l. Via S. Vitalino, 13 40012 Lippo di Calderara di Reno Bologna - Italy Telephone: (+39) 051-3147011 Fax: (+39) 051-3147561 822000381 (Rev. B) ©2001-2007 Datalogic Mobile S.r.l. 08/07...
