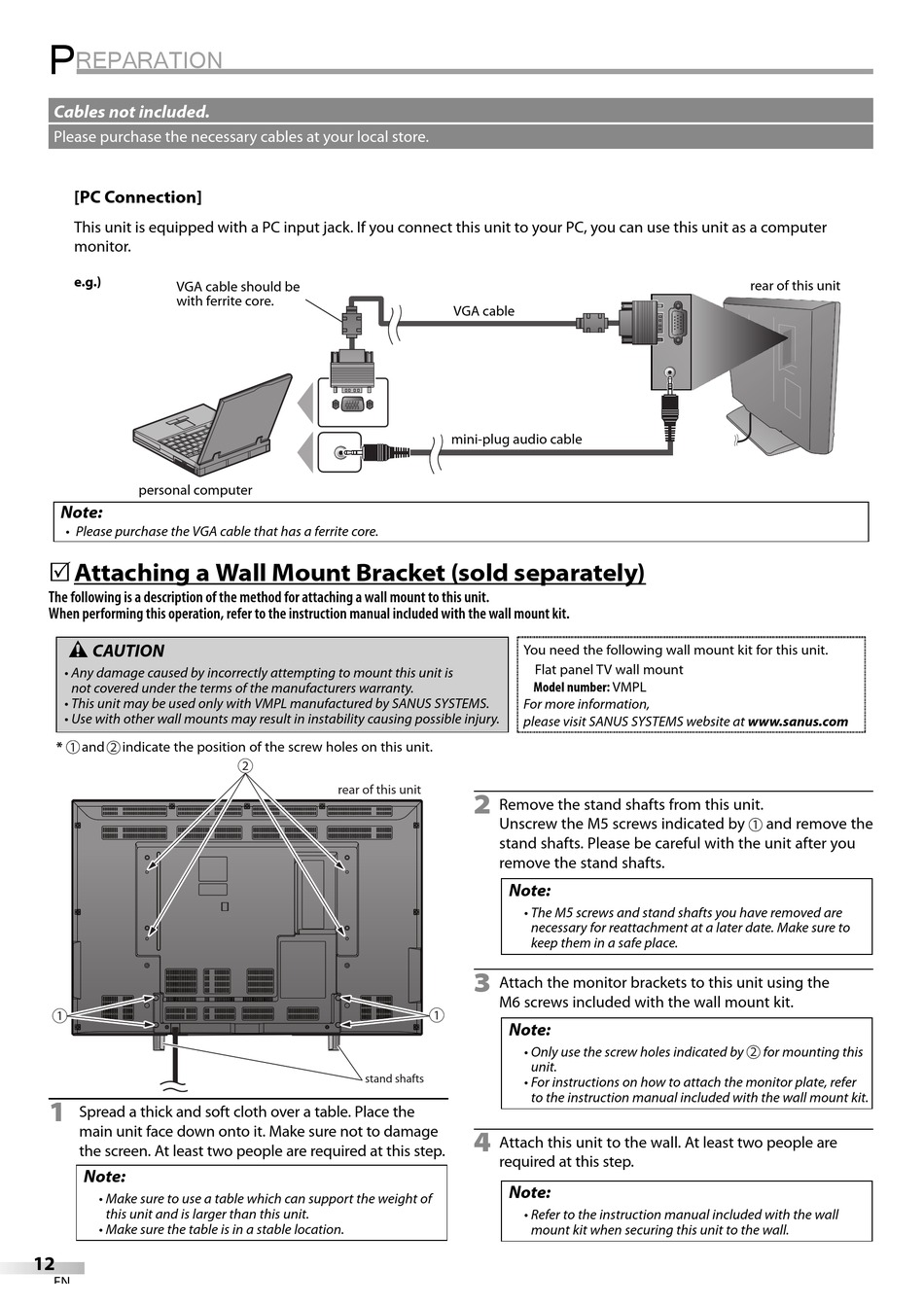

Attaching A Wall Mount Bracket (Sold Separately) - Sylvania LC420SS8 Owner's Manual

P
REPARATION
Cables not included.
Please purchase the necessary cables at your local store.
[PC Connection]
This unit is equipped with a PC input jack. If you connect this unit to your PC, you can use this unit as a computer
monitor.
e.g.)
VGA cable should be
with ferrite core.
personal computer
Note:
• Please purchase the VGA cable that has a ferrite core.

Attaching a Wall Mount Bracket (sold separately)

The following is a description of the method for attaching a wall mount to this unit.
When performing this operation, refer to the instruction manual included with the wall mount kit.
#
CAUTION
• Any damage caused by incorrectly attempting to mount this unit is
not covered under the terms of the manufacturers warranty.
• This unit may be used only with VMPL manufactured by SANUS SYSTEMS.
• Use with other wall mounts may result in instability causing possible injury.
* and 2 indicate the position of the screw holes on this unit.
1
1
1
Spread a thick and soft cloth over a table. Place the
main unit face down onto it. Make sure not to damage
the screen. At least two people are required at this step.
Note:
• Make sure to use a table which can support the weight of
this unit and is larger than this unit.
• Make sure the table is in a stable location.
12
EN
2
rear of this unit
stand shafts
VGA cable
mini-plug audio cable
You need the following wall mount kit for this unit.
Flat panel TV wall mount
Model number: VMPL
For more information,
please visit SANUS SYSTEMS website at www.sanus.com
2
Remove the stand shafts from this unit.
Unscrew the M5 screws indicated by
stand shafts. Please be careful with the unit after you
remove the stand shafts.
Note:
• The M5 screws and stand shafts you have removed are
necessary for reattachment at a later date. Make sure to
keep them in a safe place.
3
Attach the monitor brackets to this unit using the
M6 screws included with the wall mount kit.
1
Note:
• Only use the screw holes indicated by
unit.
• For instructions on how to attach the monitor plate, refer
to the instruction manual included with the wall mount kit.
4
Attach this unit to the wall. At least two people are
required at this step.
Note:
• Refer to the instruction manual included with the wall
mount kit when securing this unit to the wall.
rear of this unit
and remove the
1
2 for mounting this
