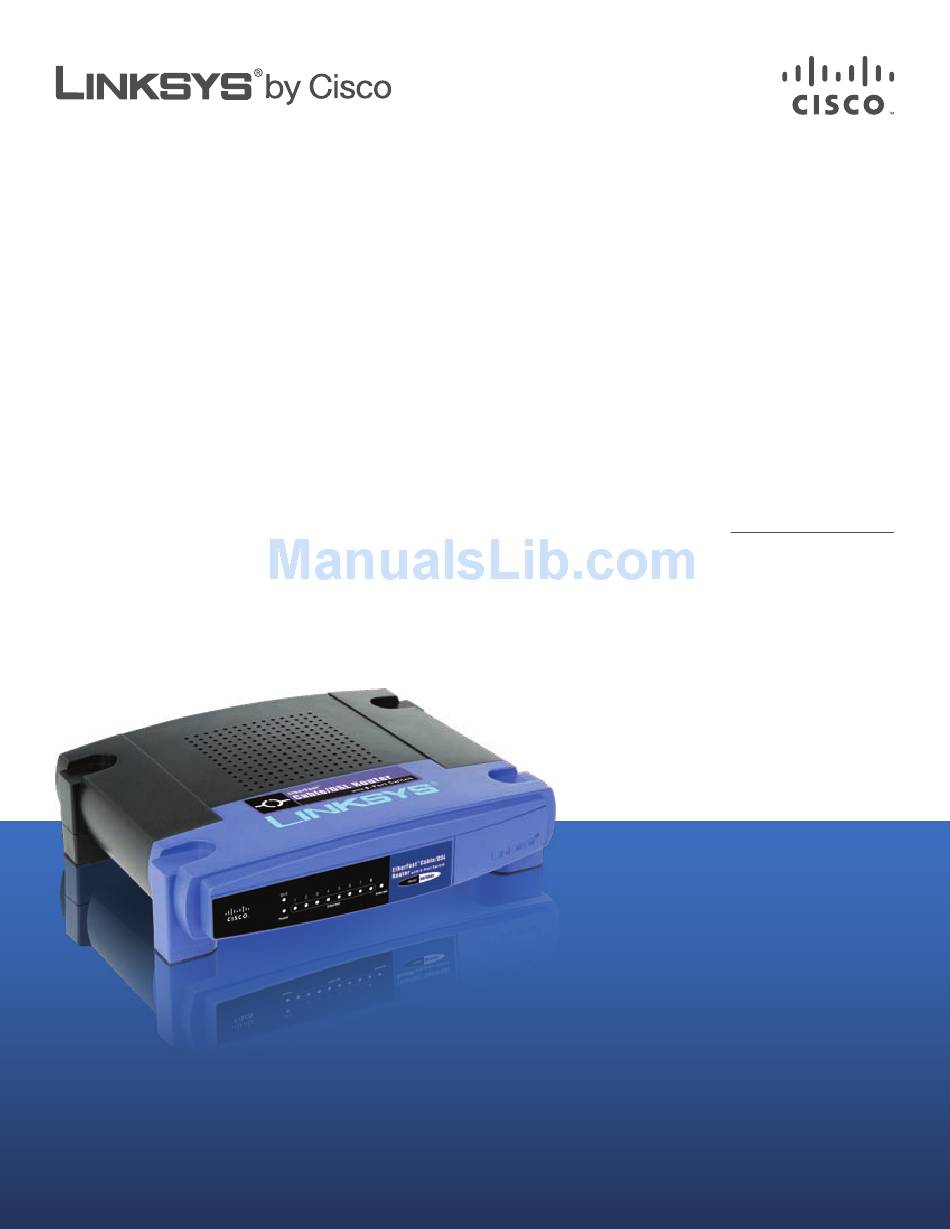

  • Page 1 USER GUIDE EtherFast Cable/DSL Router ® with 8-Port Switch BEFSR81 Model:...

  • Page 2: About This Guide

    Network Security www.linksys.com/security Copyright and Trademarks Linksys, EtherFast, Cisco, and the Cisco Logo are registered trademarks or trademarks of Cisco Systems, Inc. and/or its affiliates in the U.S. and certain other countries. Copyright © 2008 Cisco Systems, Inc. All rights reserved.

  • Page 3: Table Of Contents

    Table of Contents Chapter 1: Product Overview Front Panel..........1 Back Panel .

  • Page 4: Chapter 1: Product Overview

    Chapter 1: Back Panel Product Overview Thank you for choosing the Linksys by Cisco EtherFast Cable/DSL Router with 8-Port Switch. The Router lets you access the Internet through its eight switched ports. You can also use the Router to share resources such as...

  • Page 5: Chapter 2: Advanced Configuration

    Advanced Configuration Chapter 2 Chapter 2: Advanced Configuration After setting up the Router with the Setup Wizard (located on the CD-ROM), the Router will be ready for use. However, if you’d like to change its advanced settings, use the Router’s web-based utility. This chapter describes each web page of the utility and each page’s key functions.
  • Page 6 Advanced Configuration Chapter 2 Static IP Keep Alive: Redial Period If you select this option, the Router will periodically check your Internet If you are required to use a permanent IP address to connection. If you are disconnected, then the Router connect to the Internet, select Static IP.
  • Page 7 Advanced Configuration Chapter 2 PPTP Point-to-Point Tunneling Protocol (PPTP) is a service that applies to connections in Europe only. Internet Connection Type > Heart Beat Signal User Name and Password Enter the User Name and Password provided by your ISP. Heart Beat Server Enter the IP address of your ISP’s Heart Beat server.
  • Page 8 Advanced Configuration Chapter 2 enter the number of minutes you want to have elapsed Network Address Server Settings (DHCP) before your Internet connection terminates. The default The settings allow you to configure the Router’s Dynamic Max Idle Time is 5 minutes. Host Configuration Protocol (DHCP) server function.

  • Page 9: Setup > Ddns

    Advanced Configuration Chapter 2 Click Save Settings to apply your changes, or click Cancel TZO.com Changes to cancel your changes. Setup > DDNS The Router offers a Dynamic Domain Name System (DDNS) feature. DDNS lets you assign a fixed host and domain name to a dynamic Internet IP address.

  • Page 10: Setup > Advanced Routing

    Advanced Configuration Chapter 2 MAC Clone the NAT setting is disabled, this feature is available. Select Enable to use the Dynamic Routing feature. MAC Clone Service To have the MAC address cloned, Transmit RIP Version To use dynamic routing for select Enable.

  • Page 11: Security > Filter

    Advanced Configuration Chapter 2 Security > Filter Filter MAC Address This feature blocks computers with specific MAC addresses The Filter screen is used to set up filters to block specific from going out to the Internet. internal users from accessing the Internet and enhance your network’s security.

  • Page 12: Security > Vpn Passthrough

    Advanced Configuration Chapter 2 Click Save Settings to apply your changes, or click Cancel appropriate servers (computers). Before using forwarding, Changes to cancel your changes. you should assign static IP addresses to the designated servers. Security > VPN Passthrough If you need to forward all ports to one computer, click the DMZ tab.

  • Page 13: Applications And Gaming > Upnp Forwarding

    Advanced Configuration Chapter 2 Applications and Gaming > Port Triggering Port Triggering Applications and Gaming > UPnP Forwarding Application Enter the application name of the trigger. UPnP Forwarding Triggered Range Application Start Port and End Port For each application, enter the starting and ending port numbers of the triggered Ten applications are preset.

  • Page 14: Applications And Gaming > Dmz

    Advanced Configuration Chapter 2 being “fingered” must have placed his or her profile on while DMZ hosting opens all the ports of one computer, the system in order for the information to be available. exposing the computer to the Internet. Fingering requires entering the full user@domain address.

  • Page 15: Administration > Management

    Advanced Configuration Chapter 2 Incoming Rate Limit This feature limits the incoming bandwidth. To use this feature, select 8M, 4M, 2M, 1M, 512K, 256K, or 128K (M stands for Mbps, while K stands for kbps). If you do not want to use this feature, keep the default, Disable.

  • Page 16: Administration > Log

    Advanced Configuration Chapter 2 UPnP If you want to use UPnP, keep the default setting, Enabled. Otherwise, select Disabled. Allow Users to Make Configuration Changes Keep the default, Enabled, if you want to be able to make manual changes to the Router while using the UPnP feature. Otherwise, select Disabled.

  • Page 17: Administration > Factory Defaults

    Advanced Configuration Chapter 2 Destination URL/IP, and Service/Port Number for each site NOTE: Do not restore the factory defaults unless are listed. Click Refresh to update the log. you are having difficulties with the Router and have exhausted all other troubleshooting View Log Click this button to view a log of all activities measures.

  • Page 18: Status > Router

    Advanced Configuration Chapter 2 Status > Router Local Network Local MAC Address The MAC address of the Router’s The Router screen displays information about the Router local, wired interface is displayed here. and its current settings. IP Address This shows the Router’s IP address, as it appears on your local network.

  • Page 19: Appendix A: Troubleshooting

    Troubleshooting Appendix A Appendix A: When you double-click the web browser, you are prompted for a username and password. If you want to Troubleshooting get rid of the prompt, follow these instructions. Launch the web browser and perform the following steps (these steps are specific to Internet Explorer but are similar Your computer cannot connect to the Internet.

  • Page 20: Appendix B: Specifications

    Specifications Appendix B Appendix B: Specifications Model BEFSR81 Standards IEEE 802.3 (10BaseT), 802.3u (100BaseTX) Ports One 10/100 RJ-45 Port for Broadband Modem Eight 10/100 RJ-45 Switched Ports Button Reset Cabling Type Ethernet Category 5 LEDs Power, QoS, Ethernet, Internet OS Support...

  • Page 21: Appendix C: Warranty Information

    Warranty Information Appendix C Appendix C: service offerings. This limited warranty shall not apply to such third party software or service offerings. This limited Warranty Information warranty does not guarantee any continued availability of a third party’s service for which this product’s use or operation may require.
  • Page 22 Warranty Information Appendix C rejected. Do not include any other items with the product you are returning to Linksys. Defective product covered by this limited warranty will be repaired or replaced and returned to you without charge. Customers outside of the United States of America and Canada are responsible for all shipping and handling charges, custom duties, VAT and other associated taxes and charges.

  • Page 23: Appendix D: Regulatory Information

    Regulatory Information Appendix D Appendix D: Industry Canada Statement Regulatory Information This Class B digital apparatus complies with Canadian ICES-003. Operation is subject to the following two conditions: FCC Statement This device may not cause interference and This product has been tested and complies with the This device must accept any interference, including specifications for a Class B digital device, pursuant to Part interference that may cause undesired operation of...

  • Page 24: User Information For Consumer Products Covered By Eu Directive 2002/96/Ec On Waste Electric And Electronic Equipment (Weee)

    Regulatory Information Appendix D User Information for Consumer Products Čeština (Czech) - Informace o ochraně životního prostředí pro zákazníky v zemích Evropské unie Covered by EU Directive 2002/96/EC on Evropská směrnice 2002/96/ES zakazuje, aby zařízení označené tímto symbolem na produktu anebo na obalu bylo likvidováno Waste Electric and Electronic Equipment s netříděným komunálním odpadem.
  • Page 25 Regulatory Information Appendix D Eesti (Estonian) - Keskkonnaalane informatsioon Français (French) - Informations environnementales Euroopa Liidus asuvatele klientidele pour les clients de l’Union européenne Euroopa Liidu direktiivi 2002/96/EÜ nõuete kohaselt on La directive européenne 2002/96/CE exige que l’équipement seadmeid, millel on tootel või pakendil käesolev sümbol sur lequel est apposé...
  • Page 26 Regulatory Information Appendix D Lietuvškai (Lithuanian) - Aplinkosaugos informacija, Nederlands (Dutch) - Milieu-informatie voor klanten skirta Europos Sąjungos vartotojams in de Europese Unie Europos direktyva 2002/96/EC numato, kad įrangos, kuri ir De Europese Richtlijn 2002/96/EC schrijft voor dat apparatuur die kurios pakuotė...
  • Page 27 Regulatory Information Appendix D Português (Portuguese) - Informação ambiental para Slovenščina (Slovene) - Okoljske informacije za stranke clientes da União Europeia v Evropski uniji A Directiva Europeia 2002/96/CE exige que o equipamento Evropska direktiva 2002/96/ES prepoveduje odlaganje opreme s que exibe este símbolo no produto e/ou na sua embalagem tem simbolom –...

  • Page 28: Appendix E: Software License Agreement

    CISCO-LINKSYS LLC. BY DOWNLOADING OR INSTALLING THE SOFTWARE, OR USING THE PRODUCT CONTAINING This product from Cisco-Linksys LLC or from one of its THE SOFTWARE, YOU ARE CONSENTING TO BE BOUND BY affiliates Cisco Systems-Linksys (Asia) Pte Ltd. or Cisco- THIS AGREEMENT.
  • Page 29 Software License Agreement Appendix E your Linksys product and/or the Software is being used in OR RELATED TO THE USE OF OR INABILITY TO USE THE accordance with the terms of this Agreement; (iii) to provide SOFTWARE, EVEN IF LINKSYS HAS BEEN ADVISED OF improvements to the way Linksys delivers technology to THE POSSIBILITY OF SUCH DAMAGES.
  • Page 30 Software License Agreement Appendix E GNU General Public License is intended to guarantee your TERMS AND CONDITIONS FOR COPYING, DISTRIBUTION AND freedom to share and change free software–to make sure MODIFICATION the software is free for all its users. This General Public This License applies to any program or other work License applies to most of the Free Software Foundation’s which contains a notice placed by the copyright...
  • Page 31 Software License Agreement Appendix E If the modified program normally reads commands Accompany it with the information you received as interactively when run, you must cause it, when to the offer to distribute corresponding source code. started running for such interactive use in the most (This alternative is allowed only for noncommercial ordinary way, to print or display an announcement distribution and only if you received the program...
  • Page 32 Software License Agreement Appendix E If, as a consequence of a court judgment or allegation not specify a version number of this License, you of patent infringement or for any other reason (not may choose any version ever published by the Free limited to patent issues), conditions are imposed on Software Foundation.
  • Page 33 Software License Agreement Appendix E GNU LESSER GENERAL PUBLIC LICENSE To protect each distributor, we want to make it very clear that there is no warranty for the free library. Also, if the Version 2.1, February 1999 library is modified by someone else and passed on, the recipients should know that what they have is not the Copyright (C) 1991, 1999 Free Software Foundation, Inc.
  • Page 34 Software License Agreement Appendix E freedom and the wherewithal to run that program using a You may copy and distribute verbatim copies of the modified version of the Library. Library’s complete source code as you receive it, in any medium, provided that you conspicuously and The precise terms and conditions for copying, distribution appropriately publish on each copy an appropriate and modification follow.
  • Page 35 Software License Agreement Appendix E Thus, it is not the intent of this section to claim When a “work that uses the Library” uses material from rights or contest your rights to work written entirely a header file that is part of the Library, the object code by you;...
  • Page 36 Software License Agreement Appendix E Use a suitable shared library mechanism for linking You may not copy, modify, sublicense, link with, or with the Library. A suitable mechanism is one that distribute the Library except as expressly provided (1) uses at run time a copy of the library already under this License.
  • Page 37 Software License Agreement Appendix E software distributed through that system in reliance BECAUSE THE LIBRARY IS LICENSED FREE OF CHARGE, on consistent application of that system; it is up to THERE IS NO WARRANTY FOR THE LIBRARY, TO THE the author/donor to decide if he or she is willing to EXTENT PERMITTED BY APPLICABLE LAW.
  • Page 38 Software License Agreement Appendix E OpenSSL License Original SSLeay License Copyright © 1998-2007 The OpenSSL Project. All rights Copyright © 1995-1998 Eric Young (eay@cryptsoft.com) reserved. All rights reserved. Redistribution and use in source and binary forms, with This package is an SSL implementation written by Eric or without modification, are permitted provided that the Young (eay@cryptsoft.com).
  • Page 39 Software License Agreement Appendix E DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.
