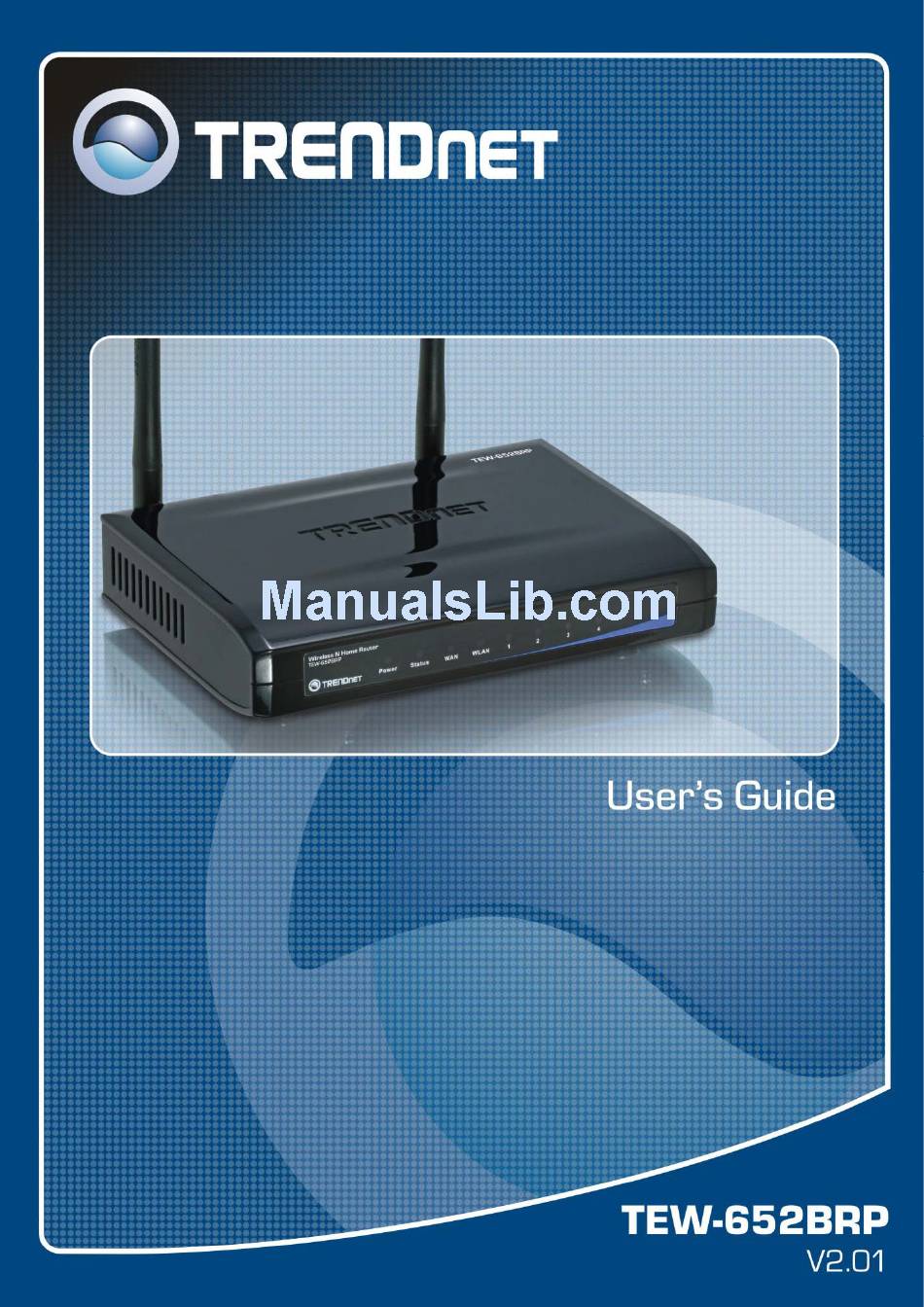

TRENDnet TEW-652BRP User Manual
  1. Manuals
  2. Brands
  3. TRENDnet Manuals
  4. Wireless Router
  5. TEW-652BRP
  6. User manual

TRENDnet TEW-652BRP User Manual

Hide thumbs Also See for TEW-652BRP:
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual
i

Advertisement

Table of Contents
loading

Related Manuals for TRENDnet TEW-652BRP

Summary of Contents for TRENDnet TEW-652BRP

  • Page 2 Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
  • Page 3 EIRP in the frequency range of 2454 – 2483.5 MHz. For detailed information the end-user should contact the national spectrum authority in France. 0560 TRENDnet tímto prohlašuje, že tento TEW-652BRP je ve shodě se základními požadavky a dalšími Česky [Czech] příslušnými ustanoveními směrnice 1999/5/ES.
  • Page 4 TRENDnet izjavlja, da je ta TEW-652BRP v skladu z bistvenimi zahtevami in ostalimi relevantnimi Slovensko določili direktive 1999/5/ES. [Slovenian] TRENDnet týmto vyhlasuje, že TEW-652BRP spĺňa základné požiadavky a všetky príslušné Slovensky ustanovenia Smernice 1999/5/ES. [Slovak] TRENDnet vakuuttaa täten että TEW-652BRP tyyppinen laite on direktiivin 1999/5/EY oleellisten Suomi [Finnish] vaatimusten ja sitä...

  • Page 5: Table Of Contents

    TABLE OF CONTENT ..................1 BOUT UIDE   Purpose ......................................... 1   Terms/Usage ......................................1   Overview of this User’s Guide ................................1   ................... 2 NTRODUCTION   Applications: ......................................2   Supported Features: ....................................3   Wireless Performance Considerations ..............................4  ...
  • Page 6 Statistic ......................................39   Wireless ......................................39   Routing ....................................... 40   Static ....................................... 40   Dynamic ......................................41   Routing Table....................................42   Access ......................................... 43   Filters ......................................43   Virtual Server ....................................46   Special AP ....................................... 47  ...

  • Page 7: About This Guide

    ABOUT THIS GUIDE Congratulations on your purchase of this IEEE 802.11b/g/n Wireless Broadband Router. This integrated access device combines Internet gateway functions with wireless LAN and Fast Ethernet switch. It provides a complete solution for Internet surfing and office resource sharing, and it is easy to configure and operate for every user.

  • Page 8: Introduction

    INTRODUCTION With the explosive growth of the Internet, accessing information and services at any time, day or night has become a standard requirement for most people. The era of the standalone PC is waning. Networking technology is moving out of the exclusive domain of corporations and into homes with at least two computers.

  • Page 9: Supported Features

    Supported Features: Wi-Fi compliant with IEEE 802.11n and IEEE 802.11b/g standards 4 x 10/100Mbps Auto-MDIX LAN port and 1 x 10/100Mbps WAN port (Internet) Supports Cable/DSL modems with Dynamic IP, Static IP, PPPoE, PPTP, L2TP & BigPond connection types High-speed up to 300Mbps data rate using IEEE 802.11n connection 2 external antennas support high speed performance and great coverage with MIMO technology Firewall features Network Address Translation (NAT), and Stateful Packet...

  • Page 10: Wireless Performance Considerations

    Wireless Performance Considerations There are a number of factors that can impact the range of wireless devices. 1. Adjust your wireless devices so that the signal is traveling in a straight path, rather than at an angle. The more material the signal has to pass through the more signal you will lose.

  • Page 11: Unpacking And Setup

    Wireless Home Router. Unpacking Open the box of the WLAN Router and carefully unpack it. The box should contain the following items: TEW-652BRP Wireless N Home Router CD-Rom (User’s Guide) Multi-Language Quick Installation Guide External power adapter 1.5m (5ft) Cat.5 Ethernet Cable If any item is found missing or damaged, please contact your local reseller for replacement.

  • Page 12: Hardware Installation

    HARDWARE INSTALLATION Front Panel The figure below shows the front panel of the IEEE 802.11b/g/n Wireless Home Router. Front Panel POWER This indicator lights green when the hub is receives power, otherwise it is off. Status This indicator blinking green means the WLAN Router is working successfully. Otherwise, this indicator always on or off means the function of the WLAN Router has failed.

  • Page 13: Rear Panel

    Rear Panel The figure below shows the rear panel of the IEEE 802.11b/g/n Wireless Home Router. Rear Panel Antenna There are two 2dBi gain antennas on the rear panel for wireless connection. LAN (1-4) Four RJ-45 10/100Mbps Auto-MDIX ports for connecting to either 10Mbps or 100Mbps Ethernet connections.

  • Page 14: Side Panel

    Side Panel The figure below shows the side panel of the IEEE 802.11b/g/n Wireless Home Router. WPS (side panel) Push this button to execute the Wi-Fi Protected Setup process. Hanging Way User can mount the device on a wall. Mount the Nylon screw anchors into a cement wall and then drive a screw into the Nylon screw anchors.

  • Page 15: Hardware Connections

    Hardware connections Connecting the WLAN Router 1. Plug in one end of the network cable to the WAN port of the WLAN Router. 2. Plug in the other end of the network cable to the Ethernet port of the xDSL or Cable modem.

  • Page 16: Pc Network Tcp/Ip Setting

    PC NETWORK TCP/IP SETTING The network TCP/IP settings differ based on the computer’s operating system (Win95/98/ME/NT/2000/XP/Vista) and are as follows. Windows 95/98/ME 1. Click on the “Network neighborhood” icon found on the desktop. 2. Click the right mouse button and a context menu will be show. 3.

  • Page 17: Windows 2000

    6. Select “None” for the “Gateway address” field. Windows 2000 Double click on the “My Computer” icon on the desktop. When “My Computer” window opens, open the “Control Panel” and then open the “Network dialup connection” applet. Double click on the “Local area network connection” icon. Select “Properties”...

  • Page 18: Windows Xp / Vista

    Windows XP / Vista Point the cursor and click the right button on the “My Network Place” icon. Select “properties” to enter the TCP/IP setting window. 1. Set “IP address” to “Obtain an IP address automatically.” 2. Set “DNS” to “Obtain DNS server address automatically.”...

  • Page 19: Configuration

    CONFIGURATION First make sure that the network connections are functioning normally. This WLAN Router can be configured using Internet Explorer 5.0 or newer web browser versions. Login to the WLAN Router through Wireless LAN Before configuring the WLAN Router through WLAN, make sure that the SSID, Channel and the WEP is set properly.

  • Page 20: Setup Wizard

    Setup Wizard Setup wizard is provided as part of the web configuration utility. User can simply follow the step-by-step process to get the wireless Router configuration ready to run in 6 easy steps by clicking on` the “Wizard” button on the function menu. The following screen will appear.
  • Page 21 Step 3: Set LAN connection and DHCP server Set user’s IP address and mask. The default IP is 192.168.10.1. If the user chooses to enable DHCP, please click “Enable”. DHCP enabled is able to automatically assign IP addresses. Please assign the range of IP addresses in the fields of “Range start”...
  • Page 22 Obtain IP automatically (DHCP client): If the user has enabled DHCP server, choose "Obtain IP automatically (DHCP client)" to have the WLAN Router assign IP addresses automatically.
  • Page 23 Fixed IP Address: If the Internet Service Provider (ISP) assigns a fixed IP address, choose this option and enter the assigned WAN IP Address, WAN Subnet Mask, WAN Gateway Address and DNS Server Addresses for the WLAN Router.
  • Page 24 PPPoE to obtain IP automatically: If connected to the Internet using a PPPoE (Dial-up xDSL) connection, and the ISP provides a User Name and Password, then choose this option and enter the required information.
  • Page 25 PPPoE with a fixed IP address: If connected to the Internet using a PPPoE (Dial-up xDSL) connection and the ISP provides a User Name, Password and a Fixed IP Address, choose this option and enter the required information.
  • Page 26 PPTP: If connected to the Internet using a PPTP xDSL connection, enter your IP, Subnet Mask, Gateway, Server IP, PPTP Account and PPTP Password.
  • Page 27 L2TP: If connected to the Internet using a L2TP (Dial-up xDSL) connection and the ISP provides a Server IP, Account and Password information, choose this option and enter the required information.
  • Page 28 Big Pond Cable(Australia): If your ISP is BigPond Cable, the ISP will provide a User Name, Password, Authentication Server and Login Server IP (Optional). Choose this option and enter the required information.
  • Page 29 Step 5: Set Wireless LAN connection Click “Enable” to enable Wireless LAN. If user enables the Wireless LAN, type the SSID in the text box and select a communications channel. The SSID and channel must be the same as wireless devices attempting to connect to the WLAN Router. Step 6: Setup completed The Setup wizard is now completed.

  • Page 30: Advanced Configuration

    Host Name: Type the host name in the text box. The host name is required by some ISPs. The default host name is "TEW-652BRP". IP Address: This is the IP address of the WLAN Router. The default IP address is 192.168.10.1.

  • Page 31: Wan

    Start IP: Type an IP address to serve as the start of the IP range that DHCP will use to assign IP addresses to all LAN devices connected to the WLAN Router. End IP: Type an IP address to serve as the end of the IP range that DHCP will use to assign IP addresses to all LAN devices connected to the WLAN Router.

  • Page 32: Password

    WAN IP: Select whether user wants to specify an IP address manually, or want DHCP to obtain an IP address automatically. When Specify IP is selected, type the IP address, subnet mask, and default gateway in the text boxes. User’s ISP will provide with this information.

  • Page 33: Time

    Time This screen enables users to set the time and date for the WLAN Router's real-time clock, select properly time zone, and enable or disable daylight saving. Local Time: Displays the local time and date. Time Zone: Select the time zone from the drop-down list. Synchronize the clock with: Select the clock adjustment method form the drop- down list.

  • Page 34: Dynamic Dns

    Dynamic DNS This synchronizes the DDNS server with your current Public IP address when you are online. First, you need to register your preferred DNS with the DDNS provider. Then, please select the DDNS address in the Server Address and fill the related information in the below fields: Host Name, User Name and Password.

  • Page 35: Wireless

    Wireless This section enables users to configuration the wireless communications parameters for the WLAN Router. Basic This page allow user to enable and disable the wireless LAN function, create a SSID, and select the channel for wireless communications. Enable/Disable: Enables or disables wireless LAN via the WLAN Router. SSID: Type an SSID in the text box.

  • Page 36: Security

    SSID Broadcast: While SSID Broadcast is enabled, all wireless clients will be able to view the WLAN Router’s SSID. For security purposes, users may want to disable SSID Broadcast to ensure only authorized clients have access. WMM: Enable the Wi-Fi Multi-Media will offer Wi-Fi networks stable that improve the user experience for audio, video, and voice applications by prioritizing data traffic.
  • Page 37 WEP Encryption WEP: Open System and Shared Key requires the user to set a WEP key to exchange data with other wireless clients that have the same WEP key.. Mode: Select the key type: ASCII or HEX WEP Key: Select the level of encryption from the drop-down list. The WLAN Router supports, 64 and 128-bit encryption.
  • Page 38 WPA/WPA2/WPA-Auto Security with EAP If WPA, WPA2 or WPA-Auto EAP is selected, the above screen is shown. Please set the length of the encryption key and the parameters for the RADIUS server. Cipher Type: Select the cipher type for TKIP or AES encryption, Selected Auto for auto detects the cipher type.
  • Page 39 WPA/WPA2/WPA-Auto Security with PSK If WPA, WPA2 or WPA-Auto PSK is selected. Cipher Type: Select the cipher type for TKIP or AES encryption, Selected Auto for auto detects the cipher type. Passphrase: The length should be 8 characters at least.

  • Page 40: Advanced

    Advanced This screen enables users to configure advanced wireless functions. Beacon Interval: Type the beacon interval in the text box. User can specify a value from 25 to 1000. The default beacon interval is 100. RTS Threshold: Type the RTS (Request-To-Send) threshold in the text box. This value stabilizes data flow.

  • Page 41: Wi-Fi Protected Setup

    Wi-Fi Protected Setup This screen enables users to configure the Wi-Fi Protected Setup function. WPS: Enable or Disable the WPS (Wi-Fi Protected Setup) function Status: Display the state (Un-configured State/Configured State) information of WPS. Self-PIN Number: Display the default PIN number of the WLAN Router. Client PIN Number: Type Client PIN number the client uses to negotiate with the WLAN Router via WPS protocol.

  • Page 42: Status

    Status This selection enables users to view the status of the WLAN Router LAN, WAN and Wireless connections, and view logs and statistics pertaining to connections and packet transfers. Device Information This screen enables users to view the WLAN Router’s LAN, Wireless and WAN configurations.

  • Page 43: Log

    This screen enables users to view a running log of Router system statistics, events, and activities. The log displays up to 200 entries. Older entries are overwritten by new entries. The Log screen commands are as follows: Click “First Page” to view the first page of the log Click “Last Page”...

  • Page 44: Log Setting

    Log Setting This screen enables users to set Router Log parameters. SMTP Authentication: Selected the Enabled if the SMTP server need for authentication, fill in account name and password in SMTP Account field and SMTP Password field. SMTP Account: If the SMTP Authentication enabled, fill in the SMTP account name here.

  • Page 45: Statistic

    Debug Information: Displays information related to errors and system malfunctions. Attacks: Displays information about any malicious activity on the network. Dropped Packets: Displays information about packets that have not been transferred successfully. Notice: Displays important notices by the system administrator. Statistic This screen displays a table that shows the rate of packet transmission via the WLAN Router’s LAN, Wireless and WAN ports (in bytes per second).

  • Page 46: Routing

    Connected Time: Displays the time duration of wireless clients connection to the WLAN Router. MAC Address: Displays the wireless client’s MAC address. Routing This selection enables users to set how the WLAN Router forwards data: Static and Dynamic. Routing Table enables users to view the information created by the WLAN Router that displays the network interconnection topology.

  • Page 47: Dynamic

    Delete: Select one of the entries in the static IP address table at the bottom of the page and click “Delete” to remove the entry. Cancel: Click the Cancel button to erase all fields and enter new information. Dynamic This screen enables users to set the dynamic routing parameters. Transmit: Click the radio buttons to set the desired transmit parameters, Disabled, RIP 1, or RIP 2.

  • Page 48: Routing Table

    Routing Table This screen enables users to view the routing table of the WLAN Router. The routing table is a database created by the WLAN Router that displays the network interconnection topology. Network Address: Displays the network IP address of the connected node. Network Mask: Displays the network (subnet) mask of the connected node.

  • Page 49: Access

    Access This page enables you to define access restrictions, set up protocol and IP filters, create virtual servers, define access for special applications such as games, and set firewall rules. Filters Using filters to deny or allow the users to access to the internet. Three types of filters can be select: MAC, Domain/URL blocking, and Protocol/IP filter.

  • Page 50: Mac Filters

    MAC Filters MAC Filter: Enables you to allow or deny accessing the internet. Disable: Disable the MAC filter function. Allow: Only allow computers with MAC address listed in the MAC Table. Deny: Computers in the MAC Table are denied Internet access. MAC Table: Use this section to create a user profile which internet access is denied or allowed.
  • Page 51 Domain/URL Blocking You could specify the domains that allow users to access or deny by clicking one of the two items. Also, add the specified domains in the text box. Disable: Disable the Domain/URL Blocking function. Allow: Allow users to access all domains except “Domains List”. Deny: Deny users to access all domains except “Domains List”.

  • Page 52: Virtual Server

    Enable: Click to enable or disable the IP address filter. Name: Type the name of the user to be denied access. Protocol: Select a protocol (TCP or UDP) to use for the virtual server. Port: Type the port range of the protocol. IP Range: Type the IP range.

  • Page 53: Special Ap

    Enable: Click to enable or disable the virtual server. Name: Type a descriptive name for the virtual server. Protocol: Select a protocol (TCP or UDP) to use for the virtual server. Private Port: Type the port number of the computer on the LAN that is being used to act as a virtual server.
  • Page 54 Enable: Click to enable or disable the application profile. When enabled, users will be able to connect to the application via the WLAN Router’s WAN connection. Click “Disabled” on a profile to prevent users from accessing the application on the WAN connection.

  • Page 55: Dmz

    This screen enables users to create a DMZ for those computers that cannot access Internet applications properly through the WLAN Router and associated security settings. Note: Any clients added to the DMZ exposes the clients to security risks such as viruses and unauthorized access.
  • Page 56 Enable: Click to enable or disable the firewall rule profile. Name: Type a descriptive name for the firewall rule profile. Action: Select whether to allow or deny packets that conform to the rule. Source: Defines the source of the incoming packet that the rule is applied to. ●...

  • Page 57: Management

    Management Management enables users to set up the Remote Management feature. Remote Management This screen enables users to set up remote management. Using remote management, the WLAN Router can be configured through the WAN via a Web browser. A user name and password are required to perform remote management.

  • Page 58: Tools

    Tools This page enables users to restart the system, save and load different settings as profiles, restore factory default settings, run a setup wizard to configure WLAN Router settings, upgrade the firmware, and ping remote IP addresses. Restart Click “Restart” to restart the system in the event the system is not performing correctly.

  • Page 59: Settings

    Settings This screen enables users to save settings as a profile and load profiles for different circumstances. User can also load the factory default settings, and run a setup wizard to configure the WLAN Router and Router interface. Save Settings: Click “Save” to save the current configuration as a profile that can load when necessary.

  • Page 60: Firmware

    Firmware This screen enables users to keep the WLAN Router firmware up to date. Please follow the below instructions: Download the latest firmware from the manufacturer's Web site, and save it to disk. Click “Browse” and go to the location of the downloaded firmware file. Select the file and click “Upgrade”...

  • Page 61: Technical Specifications

    TECHNICAL SPECIFICATIONS Hardware Wired: IEEE 802.3 (10Base-T), IEEE 802.3u (100Base-TX) Standards Wireless: IEEE 802.11b, IEEE 802.11g, IEEE 802.11n (draft 2.0), IEEE 802.11e QoS 1 x 10/100Mbps Auto-MDIX port (Internet) 4 x 10/100Mbps Auto-MDIX ports Enables Wi-Fi Protected Setup (WPS) function WPS Button Dynamic IP, Static (Fixed) IP, PPPoE, PPTP, L2TP Connection Type...

  • Page 62: Limited Warranty

    If a product does not operate as warranted during the applicable warranty period, TRENDnet shall reserve the right, at its expense,  to repair or replace the defective product or part and deliver an equivalent product or part to the customer. The repair/replacement  unit’s  warranty  continues  from  the  original  date  of  purchase.  All  products  that  are  replaced  become  the  property  of  TRENDnet.  Replacement  products  may  be  new  or  reconditioned.  TRENDnet  does  not  issue  refunds  or  credit.  Please  contact  the  point‐of‐ purchase for their return policies. ...
  • Page 63 Some  TRENDnet  products  include  software  code  written  by  third  party  developers.  These  codes  are  subject  to  the  GNU  General  Public License ("GPL") or GNU Lesser General Public License ("LGPL").     Go to http://www.trendnet.com/gpl or http://www.trendnet.com Download section and look for the desired TRENDnet product to  access to the GPL Code or LGPL Code. These codes are distributed WITHOUT WARRANTY and are subject to the copyrights of the  developers.  TRENDnet  does  not  provide  technical  support  for  these  codes.  Please  go  to  http://www.gnu.org/licenses/gpl.txt  or http://www.gnu.org/licenses/lgpl.txt for specific terms of each license.  PWP05202009v2   ...
