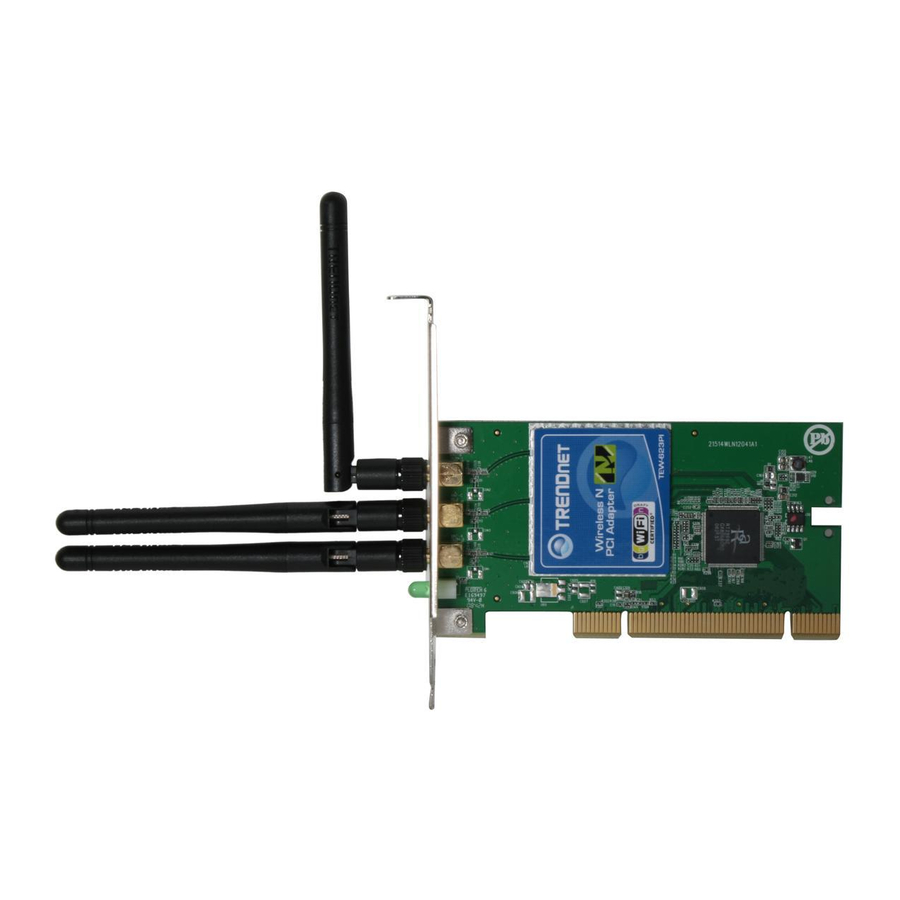

TRENDnet TEW-623PI Quick Installation Manual
H/w: v3.0r 300mbps wireless n pci adapter
Hide thumbs
Also See for TEW-623PI:
- User manual (41 pages) ,
- Quick installation manual (10 pages) ,
- Specifications (2 pages)
Advertisement
Quick Links
Advertisement
Related Manuals for TRENDnet TEW-623PI
Summary of Contents for TRENDnet TEW-623PI

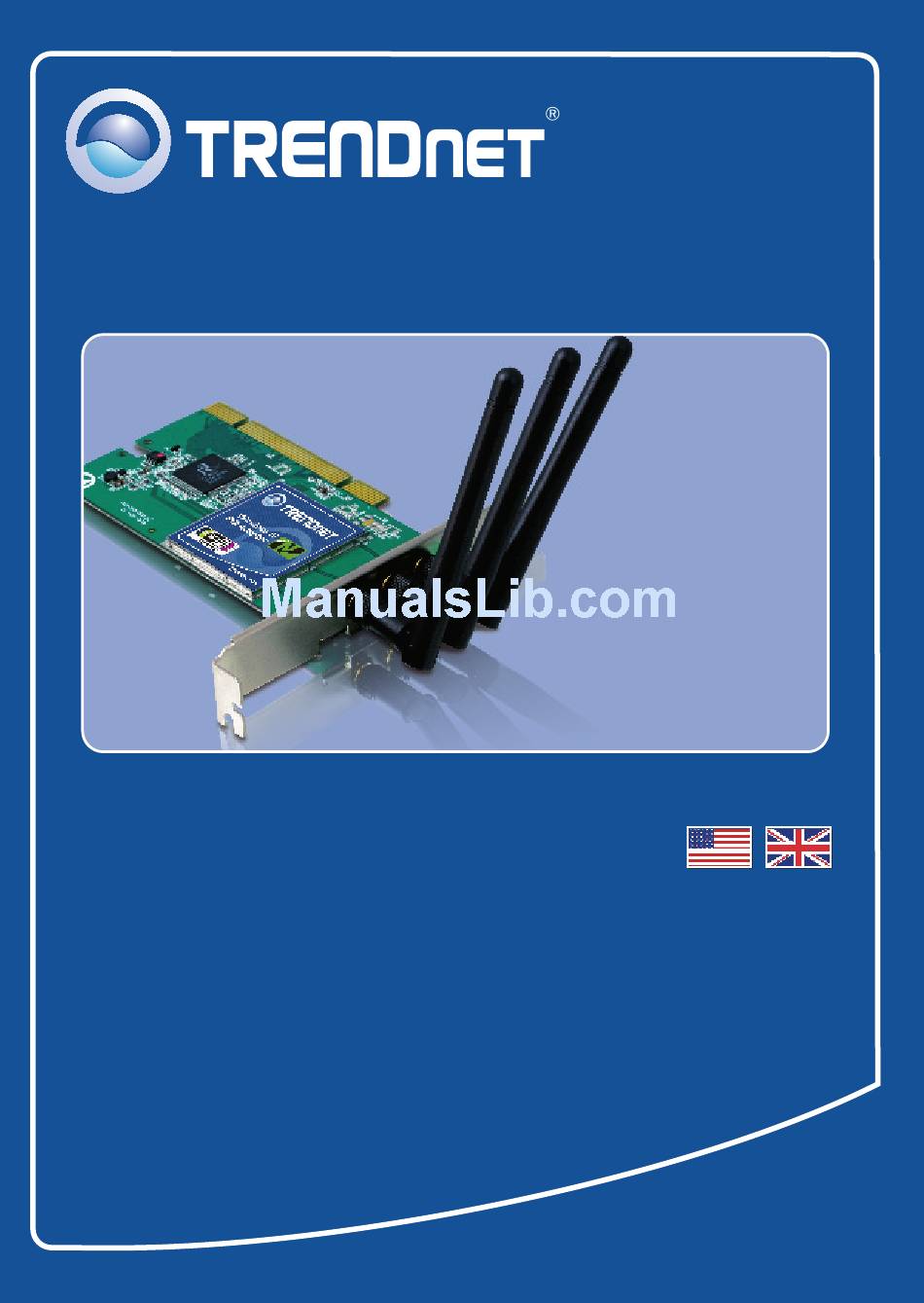

- Page 1 Quick Installation Guide TEW-623PI H/W: V3.0R...
-
Page 2: Table Of Contents
Table of Contents Table of Contents English ..................... 1. Before You Start ................How to Install ..................3. Using the Wireless Adapter .............. Troubleshooting ..................Version 09.08.2008... -
Page 3: English
1. Before You Start Package Contents TEW-623PI Utility & Driver CD-ROM Quick Installation Guide 3 x 2dbi Antennas System Requirements 32-bit PCI 2.2 slot CD-ROM Drive CPU: 300Mhz or above / 800MHz or above (Windows Vista) Memory: 256MB RAM or above / 512MB RAM or above (Windows Vista) Windows 2000/XP/Vista Application Workstation with 300Mbps... -
Page 4: How To Install
2. How to Install Important! DO NOT install the PCI adapter in the computer until instructed to do so. For Windows Users 1. Insert the Utility & Driver CD-ROM into your computer's CD-ROM Drive. 2. Click Run Autorun.exe (Windows Vista Only). 3. - Page 5 5. Click Continue 5. Click Yes. (Windows Anyway (Windows 2000) XP). 5. Click Install this driver software anyway (Windows Vista). 6. Click Finish. 7. Remove the Utility and Driver CD-ROM from your computer. Note: Please refer to your computer's user manual regarding hardware installation.
- Page 6 8. Shutdown your computer. 9. Open your computer's case. 10. Insert PCI Card firmly into an available PCI Card slot on the desktop PC, attach the included antenna, and then turn ON the computer and wait until the Windows desktop appears. Note: For Windows Vista, drivers will install automatically.
- Page 7 Windows XP Windows 2000 12. Installation is complete. Proceed to Section 3 Using the Wireless Adapter. 12. Select Install this software automatically (recommended and then click Next. 13. Click Continue Anyway. 14. Click Finish. Your installation is now complete. English...
-
Page 8: Using The Wireless Adapter
For detailed information regarding the TEW-623PI configuration and advanced settings, please refer to the User's Guide included on the Utility & Driver CD-ROM or TRENDnet's website at www.trendnet.com Register Your Product To ensure the highest level of customer service and support, please take a moment to www.trendnet.com/register... -
Page 9: Troubleshooting
To access the device manager on Windows Vista, right-click Computer, click Properties and then click Device Manager. If you still encounter problems or have any questions regarding the TEW-623PI, please refer to the User's Guide included on the Utility & Driver CD-ROM or contact TRENDnet's Technical Support Department. - Page 10 Certifications This equipment has been tested and found to comply with FCC and CE Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference received. Including interference that may cause undesired operation.
- Page 11 Product Warranty Registration Please take a moment to register your product online. Go to TRENDnet’s website at http://www.trendnet.com/register 20675 Manhattan Place Torrance, CA 90501 Copyright ©2008. All Rights Reserved. TRENDnet.
