Page 1: Quick Installation Guide

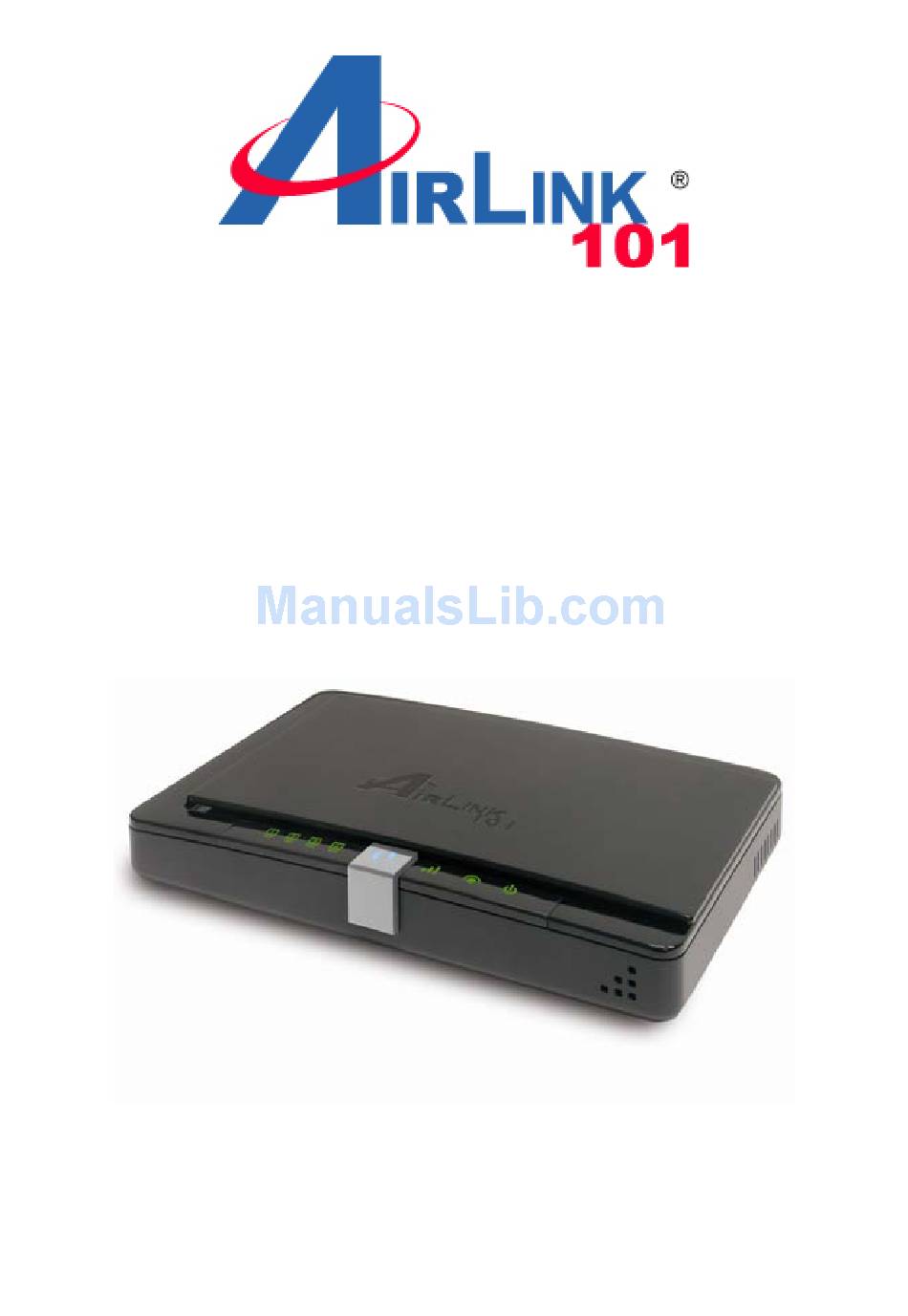

Quick Installation Guide Dual Band Wireless N Router Model # AR725W Ver. 1A... -
Page 2: Connecting The Router
DSL/Cable modem. Step 2 With another network cable, connect one end of the cable to your computer’s Ethernet port and connect the other end to one of the LAN ports of the router. - Page 3 Step 3 Power on the DSL/Cable modem and wait for the lights on the modem to settle down. Step 4 Plug the power adapter to the router and connect to an outlet or power strip. Step 5 Power on your computer.
-
Page 4: Configuring The Router
Configuring the Router Step 1 Open the web browser (Internet Explorer or Mozilla Firefox) from the computer that connects to the Router, type 192.168.1.1 in the Address bar and press Enter. Step 2 Enter admin for both the username and password fields and click... -
Page 5: Cable Modem
Cable Modem For most cable modem users, you should be able to connect to the Internet without changing any configuration. If your ISP has provided you with a host name, enter it in the optional Host Name field. Click Apply to save the setting. - Page 6 If you have trouble connecting to the Internet, please refer to Section 4, Verifying Connection. For DSL users, follow the steps below to configure the router. Step 1 Select PPPoE from the drop-down menu. Step 2 Enter your username and password provided by your ISP.
-
Page 7: Configuring Wireless Settings
Step 3 Click Apply to save the setting. You should be able to connect to the Internet now with the wired computer. If you have trouble connecting to the Internet, please refer to Section 4, Verifying Connection. Connect each of your wired computers to an available LAN port on the Router with an Ethernet cable, and then restart the computer. - Page 8 Note: If your wireless computer cannot detect the router after you selected AN-Mixed, please make sure your wireless adapter supports 5GHz frequency band. Step 3 Name your wireless network by changing the SSID. Step 4 Click Apply to save the setting.
- Page 9 WEP is the most common encryption but the least secured. It is recommended to use WPA2 Personal AES for your wireless security if all the wireless devices on your network support this mode. Please refer to the User’s Manual in the provided CD for other security mode settings. WPA2-Personal Select WPA2 Personal for Security Mode, AES for Encryption, and enter a passphrases between 8 to 63 characters (alphanumeric, case sensitive).
- Page 10 Select WEP for Security Mode. Select 64-bit or 128-bit for Encryption: In Key 1, if you selected 64 bits encryption, enter 10 HEX characters (0~9, A~F) for each key; if you selected 128 bits encryption, enter 26 HEX characters (0~9, A~F) for each key.
-
Page 11: Verifying Connection
Turn on the Cable/DSL modem and wait for the lights on the modem to settle down. Step 3 Turn on the router and wait for the lights on the router to settle down. Step 4 Turn on the computer. Step 5 Log in to the router and select the Status tab. - Page 12 If you see all 0’s, click on the IP Address Renew button (for Cable Modem users) or the Connect button (for DSL users). If each field has a valid number assigned, the router is connected to the Internet. Section 5 (Optional)
- Page 13 WPS window: Step 3 Push the WPS button on the Dual Band Wireless N Router, and the WPS LED will start blinking. Step 4 The Router will now start the handshake with the wireless adapter. When you see the window below, the connection has been established.
-
Page 14: Technical Support
(e.g., cordless telephones and microwaves) as well as network overhead lower actual data throughput rate. This product is based on IEEE draft 802.11n specification and is not guaranteed to be compatible with future versions of IEEE 802.11n specification. Compatibility with draft 802.11n devices from other manufactures is not guaranteed.
