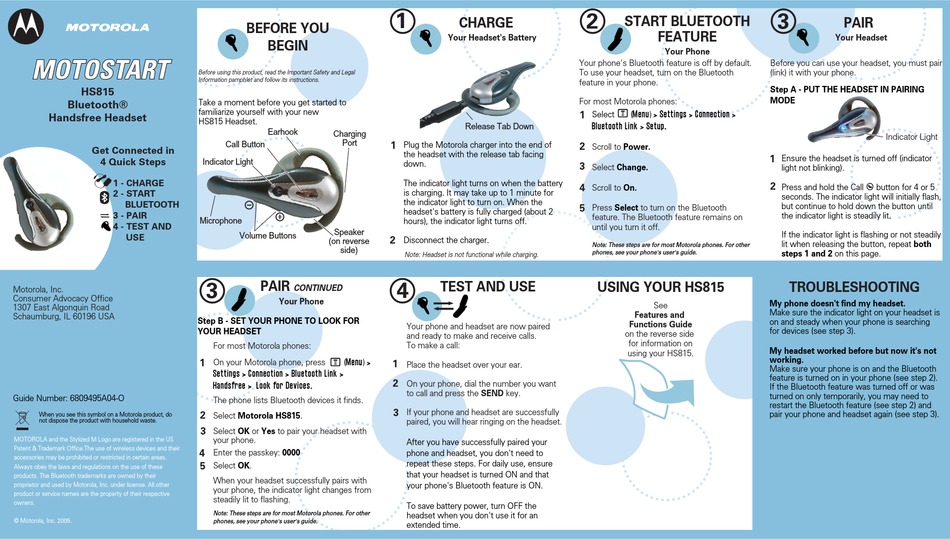

Motorola QG-HS815 Quick Start Manual

HS815
Bluetooth®
Handsfree Headset
Get Connected in
4 Quick Steps
1 - CHARGE
2 - START
BLUETOOTH
3 - PAIR
4 - TEST AND
USE
Motorola, Inc.
Consumer Advocacy Office
1307 East Algonquin Road
Schaumburg, IL 60196 USA
Guide Number: 6809495A04-O
When you see this symbol on a Motorola product, do
not dispose the product with household waste.
MOTOROLA and the Stylized M Logo are registered in the US
Patent & Trademark Office.The use of wireless devices and their
accessories may be prohibited or restricted in certain areas.
Always obey the laws and regulations on the use of these
products. The Bluetooth trademarks are owned by their
proprietor and used by Motorola, Inc. under license. All other
product or service names are the property of their respective
owners.
© Motorola, Inc. 2005.
BEFORE YOU
BEGIN
Before using this product, read the Important Safety and Legal
Information pamphlet and follow its instructions.
Take a moment before you get started to
familiarize yourself with your new
HS815 Headset.
Earhook
Earhook
Charging
Charging
Port
Call Button
Port
Call Button
Indicator Light
LED Indicator
Microphone
Microphone
Speaker
Volume Buttons Speaker
Volume Buttons
(on reverse
(on reverse
side)
side)
PAIR
3
CONTINUED
Your Phone
Step B - SET YOUR PHONE TO LOOK FOR
YOUR HEADSET
For most Motorola phones:
Menu >
1
On your Motorola phone, press M( ( )
Settings > Connection > Bluetooth Link >
Handsfree > Look for Devices.
The phone lists Bluetooth devices it finds.
2
Select Motorola HS815.
3 Select or to pair your headset with
OK Yes
your phone.
4
Enter the passkey: 0000
5
Select OK.
When your headset successfully pairs with
your phone, the indicator light changes from
steadily lit to flashing.
Note: These steps are for most Motorola phones. For other
phones, see your phone's user's guide.
1
CHARGE
Your Headset's Battery
Release Tab Down
1 Plug the Motorola charger into the end of
the headset with the release tab facing
down.
The indicator light turns on when the battery
is charging. It may take up to 1 minute for
the indicator light to turn on. When the
headset's battery is fully charged (about 2
hours), the indicator light turns off.
2
Disconnect the charger.
Note: Headset is not functional while charging.
4

TEST AND USE

Your phone and headset are now paired
and ready to make and receive calls.
To make a call:
1
Place the headset over your ear.
2
On your phone, dial the number you want
to call and press the SEND key.
3 If your phone and headset are successfully
paired, you will hear ringing on the headset.
After you have successfully paired your
phone and headset, you don't need to
repeat these steps. For daily use, ensure
that your headset is turned ON and that
your phone's Bluetooth feature is ON.
To save battery power, turn OFF the
headset when you don't use it for an
extended time.
2
START BLUETOOTH
FEATURE
Your Phone
Your phone's Bluetooth feature is off by default.
To use your headset, turn on the Bluetooth
feature in your phone.
For most Motorola phones:
Menu > Settings > Connection >
1 M(
Select ( )
Bluetooth Link > Setup.
2
Scroll to Power.
3
Select
Change.
4
Scroll to On.
5
Press Select to turn on the Bluetooth
feature. The Bluetooth feature remains on
until you turn it off.
Note: These steps are for most Motorola phones. For other
phones, see your phone's user's guide.
USING YOUR HS815
See
Features and
Functions Guide
on the reverse side
for information on
using your HS815.
3
PAIR
Your Headset
Before you can use your headset, you must pair
(link) it with your phone.
Step A - PUT THE HEADSET IN PAIRING
MODE
Indicator Light
1
Ensure the headset is turned off (indicator
light not blinking).
2
Press and hold the Call E button for 4 or 5
seconds. The indicator light will initially flash,
but continue to hold down the button until
the indicator light is steadily lit.
If the indicator light is flashing or not steadily
lit when releasing the button, repeat both
steps 1 and 2 on this page.
TROUBLESHOOTING
My phone doesn't find my headset.
Make sure the indicator light on your headset is
on and steady when your phone is searching
for devices (see step 3).
My headset worked before but now it's not
working.
Make sure your phone is on and the Bluetooth
feature is turned on in your phone (see step 2).
If the Bluetooth feature was turned off or was
turned on only temporarily, you may need to
restart the Bluetooth feature (see step 2) and
pair your phone and headset again (see step 3).
