Panasonic SC-HTB20 Quick Start Manual

Quick Start Guide

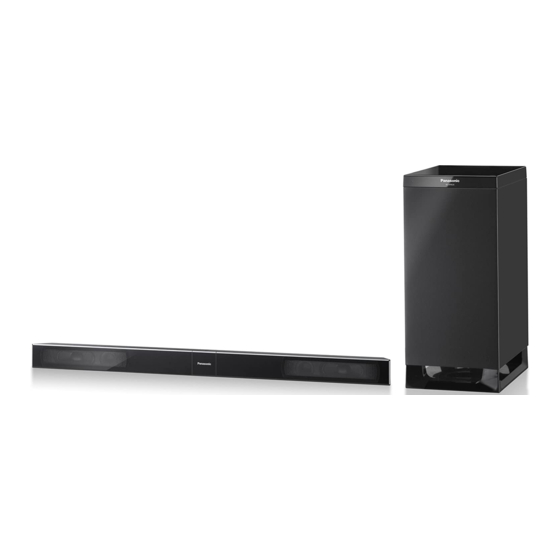

Home Theater Audio System SC-HTB20
Step 1: Choose in the configuration that is right for you
Place the speakers
horizontally
To prevent damage or scratches, lay down a soft cloth
and perform the assembly on it.
4
3
1
If you have any questions, contact:
VQC8931-1
Insert the wire fully while
Push
pushing the lever.
2
r: White
s: Blue line
U.S.A. and Puerto Rico: 1-800-211-PANA (7262)
Mon-Fri: 9 ams9 pm (EST) Lunes-Viernes
Sat-Sun: 10 ams7 pm (EST) Sabado-Domingo
http://www.panasonic.com/help
Place the speakers
vertically
To prevent damage or scratches, lay down a soft cloth
and perform the assembly on it.
2
1
Front view Rear view
Insert the wire fully
while pushing the
lever.
r: White
s: Blue line
Push
Push
≥ Place the speaker that is connected with the speaker cable with a red connector on the observers' right, and connect
with the speaker cable with a white connector on the observers' left.
Canada:
Telephone: 1-800-561-5505
E-mail link: "Support
2
1
Pull the cable straight along
the line and slide into the
groove.
≥ Be sure to place the cable under
the projecting part.
# #
contact us email" on www.panasonic.ca
